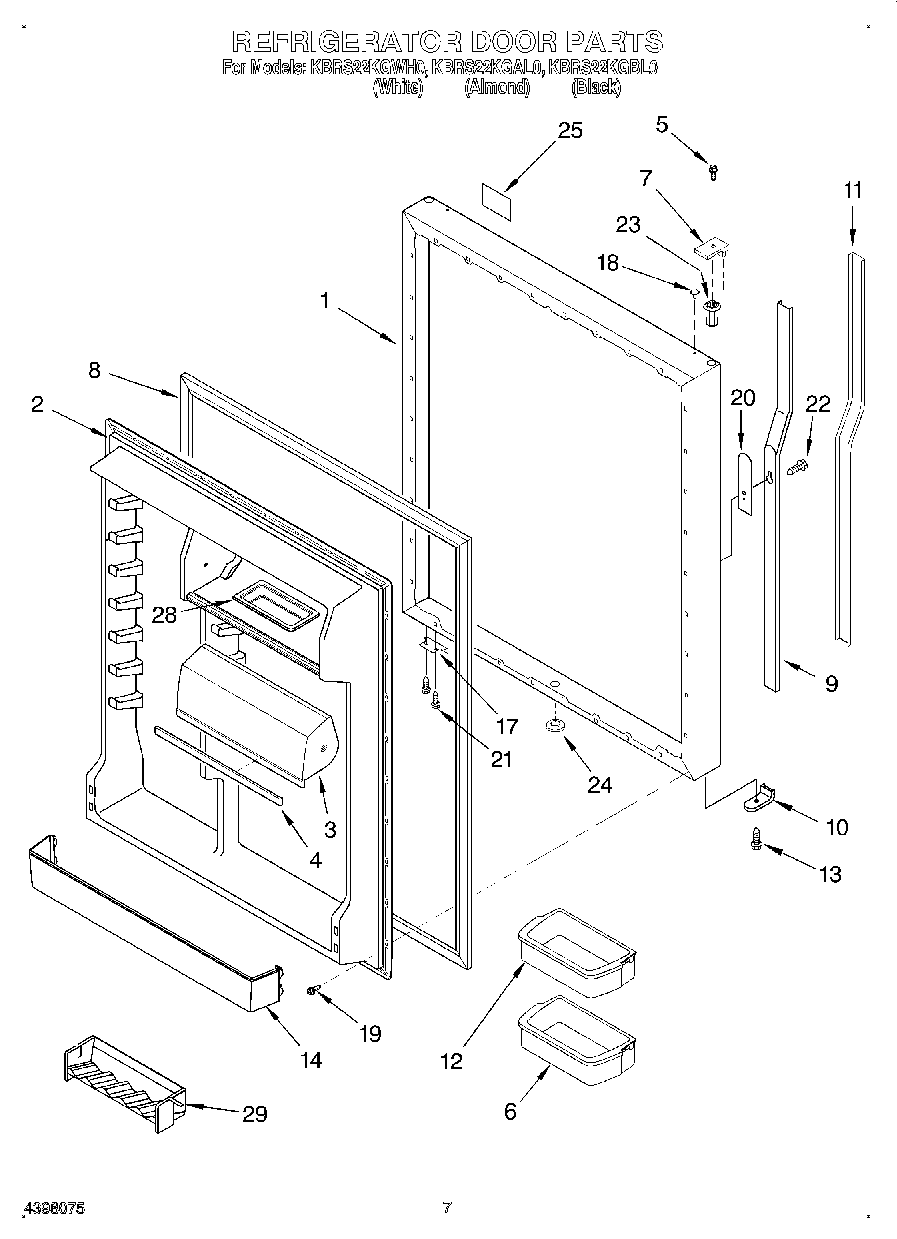

KBRS22KGAL0 05 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator Door Panel (Includes Insulation) (White)
1	Refrigerator Door Panel (Includes Insulation) (Almond)
1	Refrigerator Door Panel (Includes Insulation) (Black)
2	Interior Panel
3	WPL 4344369
4	WPL 4344370
5	WPL 4344151
6	Shelf Bin (1)
7	End Cap (Black)
7	End Cap
7	End Cap (Almond)
8	Door Gasket, Magnetic (Black)
8	WP12550115Q Whirlpool Door Gasket
9	Retainer, Insert (White)
9	Retainer, Insert (Black)
9	Retainer, Insert (Almond)
10	End Cap (White)
10	End Cap (Almond)
10	End Cap (Black)
11	Insert, Handle (White)
11	Insert, Handle (Black)
11	Insert, Handle (Almond)
12	Shelf Bin (3)
13	Screw
14	Trivet, Door
17	W11708403 Whirlpool Door Stop
17	12968202W Whirlpool Refrigerator Door Stop
17	67003781 Whirlpool Refrigerator Door Stop (BSQ)
18	Plug, Button (Almond)
18	WP67001130 Whirlpool Refrigerator White Button Plug
18	WP12246608 Whirlpool Refrigerator Button
19	WPL 4343811
20	Spacer
21	WPW10348409 Whirlpool Screw
22	WPL 4344167
23	Bushing (Black)
23	WPL 4344362
24	WPL 4344227
24	Plug, Button (Almond)
24	Plug, Button (Black)
25	Nameplate (White)
25	Nameplate (Almond)
25	Nameplate (Black)
28	WPL 4344296
29	WPL 4344374
