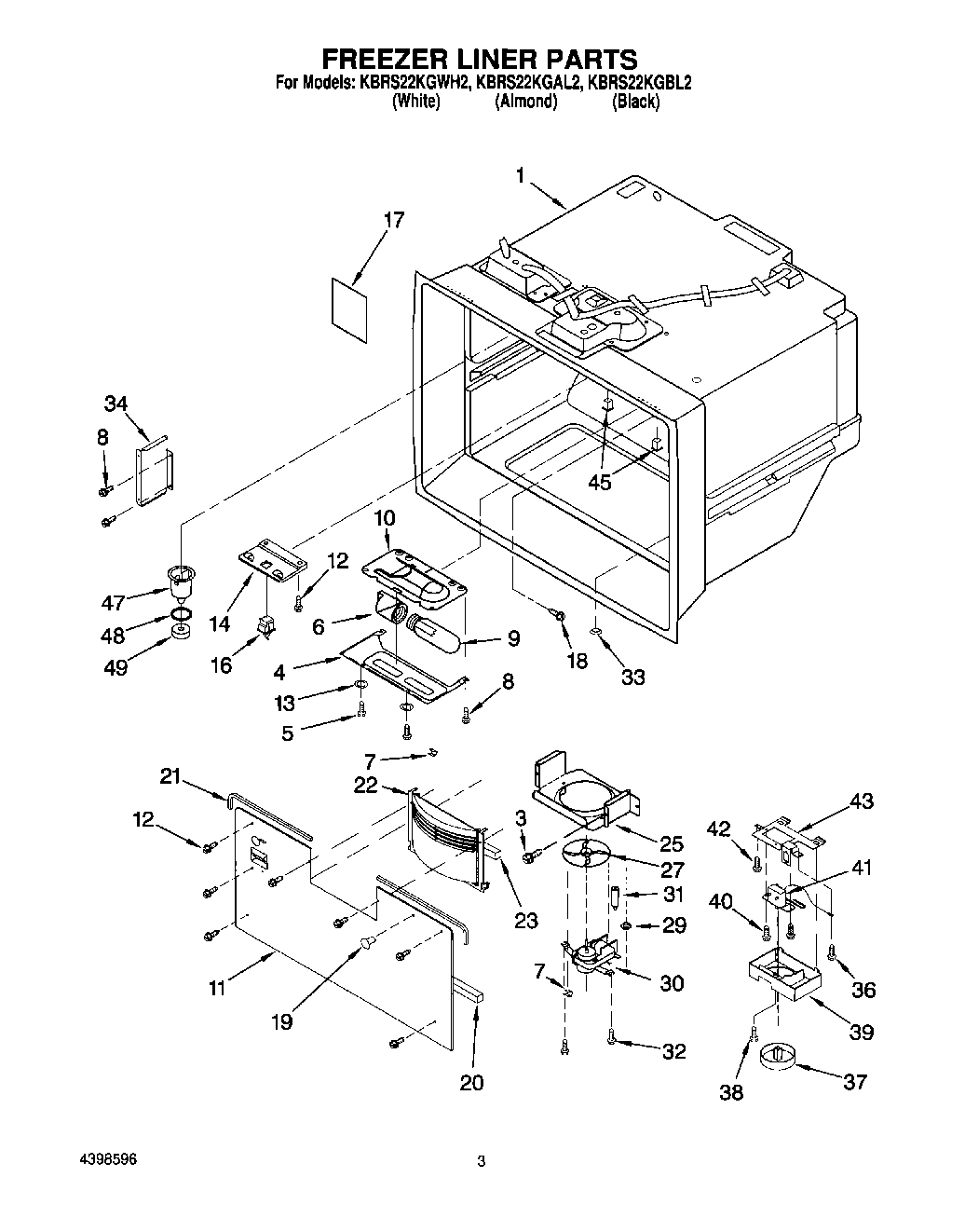

KBRS22KGAL2 02 – FREEZER LINER
Written by
in
KBRS22KGAL2 02 – FREEZER LINER
Products
Position
Product
1
Liner (Not A Serviceable Part)
3
WP98165 Whirlpool Screw
4
Light Lens
5
Screw
6
Socket (2)
7
WPL 4343682
8
67006425 Whirlpool Refrigerator Screw
9
W10887190 Whirlpool Refrigerator Light Bulb
10
Housing, Frz.Lt.
11
Cover, Evaporator
13
Washer (4)
14
Cover, Switch
16
W11384469 Whirlpool Door Switch
17
WPL 4344166
18
WP3400805 Whirlpool Screw Assembly
19
Plug, Button
20
Gasket, Bottom
21
Gasket, Top (2)
22
Cover, Fan Shroud
23
Gasket
25
Evap. Fan Shroud
27
BLADE-FAN
29
Grommet
30
WP12013209Q Whirlpool Refrigerator Evaporator
31
Spacer
32
Screw (2)
33
WPL 4344227
34
Duct, Return Air
36
WPL 4343860
37
Knob, Control
38
Screw
39
Cover, Frz. Control
40
WPL 4343861
41
W10752646 Whirlpool Control Thermostat
42
WPL 4344167
43
Bracket, Control
45
Grommet
47
W10815413 Whirlpool Refrigerator Funnel
48
WPM0500703 Whirlpool Refrigerator O-Ring Seal
49
WPB8381501 Whirlpool Refrigerator Door Gasket
←
