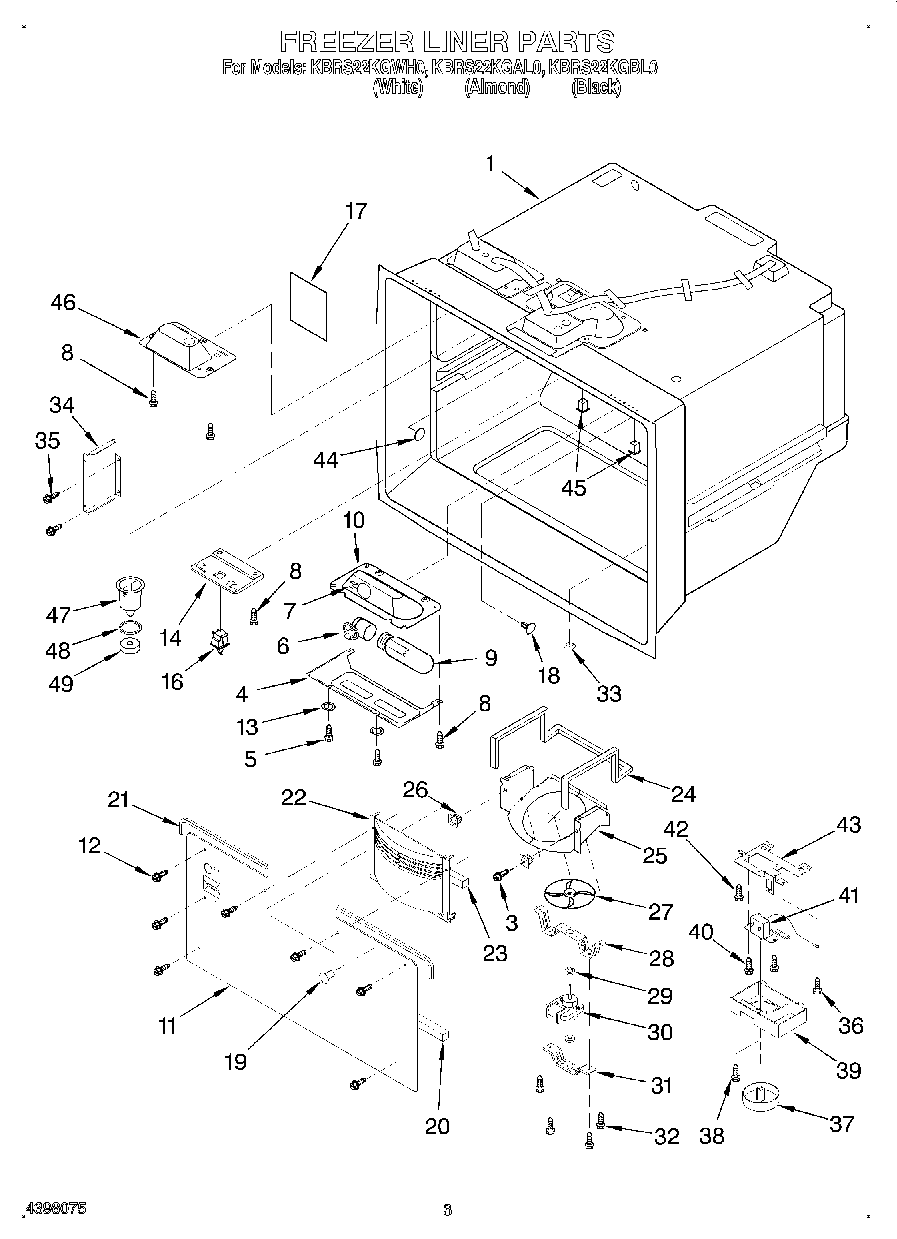

KBRS22KGBL0 02 – FREEZER LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
3	WP98165 Whirlpool Screw
4	Light Lens
5	Screw
6	Light Socket
7	WPL 4343682
9	W11679940 Whirlpool Refrigerator Light Bulb Assembly
10	Housing, Frz. Light
11	Cover, Evaporator
12	Screw
13	Washer (4)
14	Cover, Light Switch
16	W11384469 Whirlpool Door Switch
17	WPL 4344166
18	WP2189000 Whirlpool Refrigerator Handle Plug
19	Plug, Button
20	Gasket, Bottom
21	Gasket, Top (2)
22	Cover, Fan Shroud
23	Gasket
24	Gasket
25	Evap. Fan Shroud
26	WPL 4343657
27	BLADE-FAN
28	Bracket, Motor
29	WP2264462 Whirlpool Refrigerator Grommet
30	WP10513803 Whirlpool Refrigerator Evaporator Motor
31	Bracket
32	WPL 4343749
33	WPL 4344227
34	Duct, Return Air
35	67006425 Whirlpool Refrigerator Screw
36	WPL 4343860
37	Knob, Control
38	Screw
39	Cover, Frz. Control
40	WPL 4343861
41	W10752646 Whirlpool Control Thermostat
42	Screw
43	Bracket, Control
44	WPL 4344316
45	Grommet
46	Housing, Frz. Control
47	W10815413 Whirlpool Refrigerator Funnel
48	WPM0500703 Whirlpool Refrigerator O-Ring Seal
49	WPB8381501 Whirlpool Refrigerator Door Gasket
