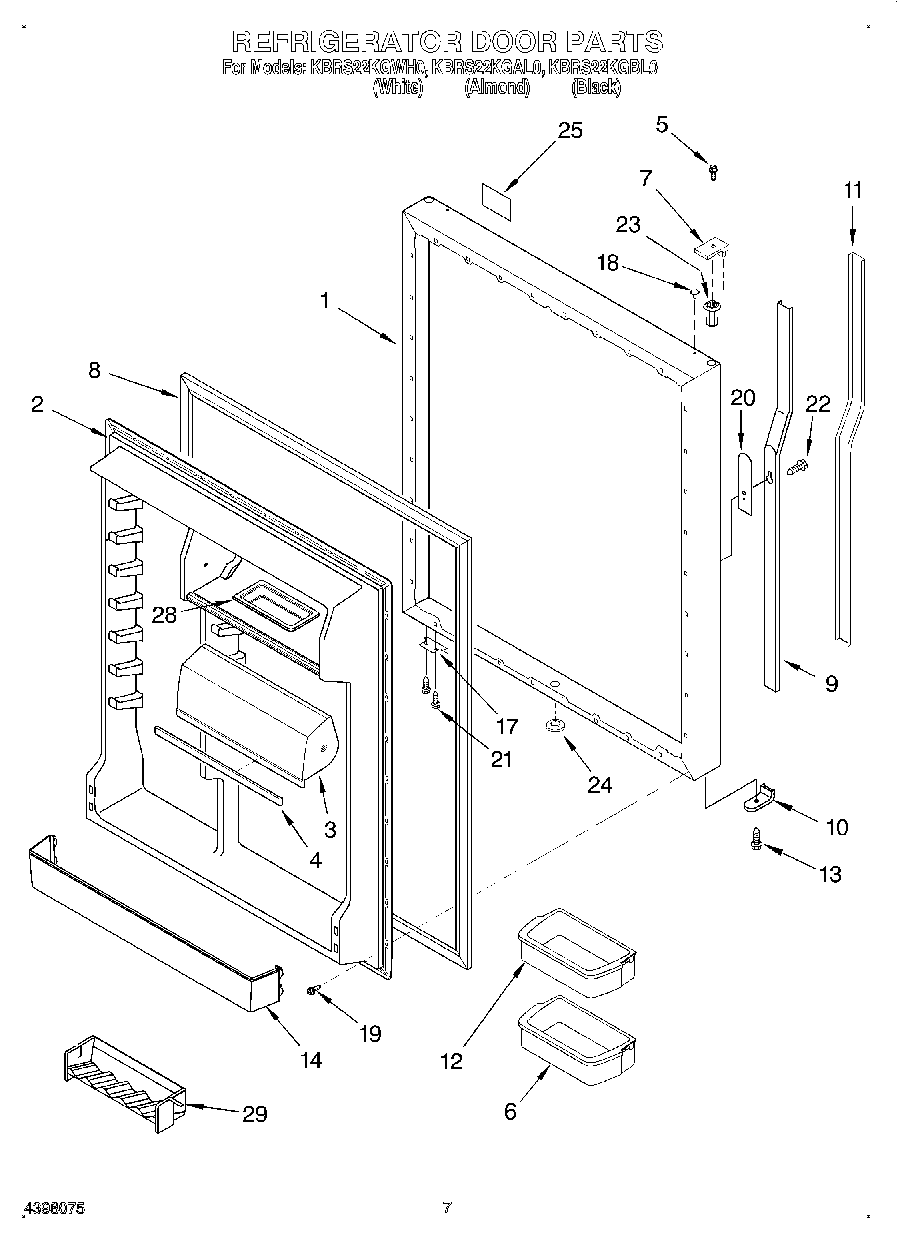

KBRS22KGBL0 05 – REFRIGERATOR DOORadmin2025-04-26T09:43:02+00:00KBRS22KGBL0 05 – REFRIGERATOR DOOR
Products
| Position | Product |
|---|
| 1 | Refrigerator Door Panel (Includes Insulation) (White) |
| 1 | Refrigerator Door Panel (Includes Insulation) (Almond) |
| 1 | Refrigerator Door Panel (Includes Insulation) (Black) |
| 2 | Interior Panel |
| 3 | WPL 4344369 |
| 4 | WPL 4344370 |
| 5 | WPL 4344151 |
| 6 | Shelf Bin (1) |
| 7 | End Cap (Black) |
| 7 | End Cap |
| 7 | End Cap (Almond) |
| 8 | Door Gasket, Magnetic (Black) |
| 8 | WP12550115Q Whirlpool Door Gasket |
| 9 | Retainer, Insert (White) |
| 9 | Retainer, Insert (Black) |
| 9 | Retainer, Insert (Almond) |
| 10 | End Cap (White) |
| 10 | End Cap (Almond) |
| 10 | End Cap (Black) |
| 11 | Insert, Handle (White) |
| 11 | Insert, Handle (Black) |
| 11 | Insert, Handle (Almond) |
| 12 | Shelf Bin (3) |
| 13 | Screw |
| 14 | Trivet, Door |
| 17 | W11708403 Whirlpool Door Stop |
| 17 | 12968202W Whirlpool Refrigerator Door Stop |
| 17 | 67003781 Whirlpool Refrigerator Door Stop (BSQ) |
| 18 | Plug, Button (Almond) |
| 18 | WP67001130 Whirlpool Refrigerator White Button Plug |
| 18 | WP12246608 Whirlpool Refrigerator Button |
| 19 | WPL 4343811 |
| 20 | Spacer |
| 21 | WPW10348409 Whirlpool Screw |
| 22 | WPL 4344167 |
| 23 | Bushing (Black) |
| 23 | WPL 4344362 |
| 24 | WPL 4344227 |
| 24 | Plug, Button (Almond) |
| 24 | Plug, Button (Black) |
| 25 | Nameplate (White) |
| 25 | Nameplate (Almond) |
| 25 | Nameplate (Black) |
| 28 | WPL 4344296 |
| 29 | WPL 4344374 |
