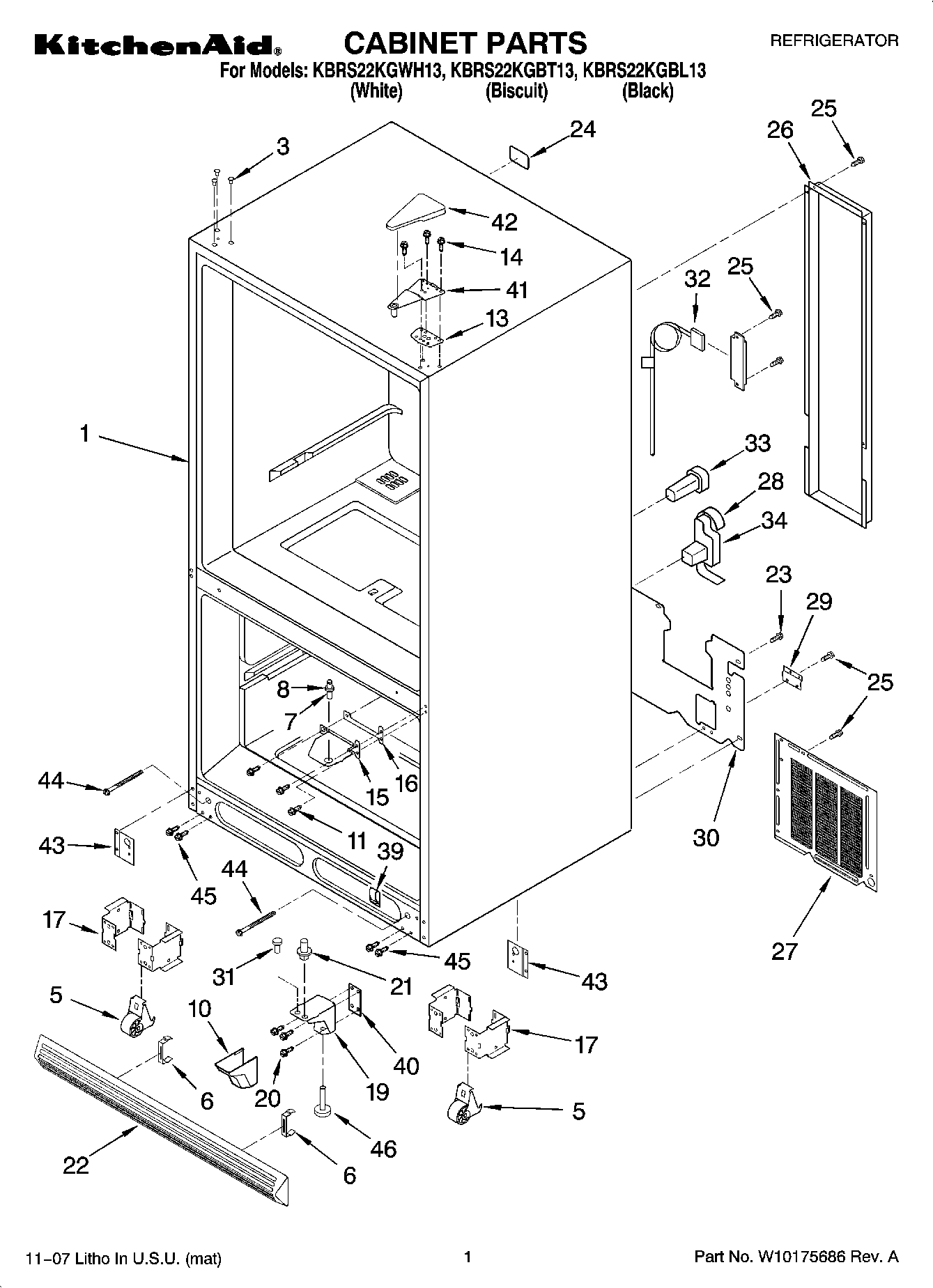

KBRS22KGBL13 01 – CABINET PARTS

Products

Position	Product
1	Cabinet (Not A Service Part)
3	WP2189000 Whirlpool Refrigerator Handle Plug
3	WP2189009 Whirlpool Refrigerator Handle Plug
3	W10709784 Whirlpool Refrigerator Handle Plug
5	WPL 4344291
6	WPL 4344155
7	WP67006744 Whirlpool Refrigerator Center Pin
8	WPM0274062 Whirlpool Refrigerator Shim
8	WPM0274057 Whirlpool Refrigerator Shim
10	Hinge Cover, Bottom (Biscuit)
10	Hinge Cover, Bottom (Black)
10	WPL 4344204
11	WP67006380 Whirlpool Screw
13	WPL 4344194
13	Shim, Hinge Top (Almond)
13	Shim, Hinge Top (Black)
14	WP489349 Whirlpool Refrigerator Screw
15	WPL 4344431
16	Shim, Center Hinge (White)
16	Shim, Center Hinge (Black)
16	Shim, Center Hinge (Almond)
17	Housing, Roller
19	Hinge Bottom
19	Hinge Bottom (Black)
20	WP67006715 Whirlpool Refrigerator Screw
21	67007018 Whirlpool Refrigerator Bottom Hinge PIN
22	Grille (White)
22	Grille (Biscuit)
22	Grille (Black)
23	WPL 4344267
24	WPL 4344264
25	WPL 4343759
26	Wire Cover
27	Back Cover
28	Harness, Control
29	W10833899 Whirlpool Refrigerator Water Inlet Valve Kit
30	Cover, Unit
31	WPL 4344210
32	Power Cord
33	WPL 4344259
34	WPL 4344260
39	WPM0104106 Whirlpool Refrigerator Clip
40	Shim, Hinge
41	WPL 4344172
42	Hinge Cover (Black)
42	Hinge Cover
42	Hinge Cover (Biscuit)
43	WPL 4344301
43	WPL 4344299
44	Screw
45	W11573574 Whirlpool Screw
46	W11177593 Whirlpool Leveling Feet
