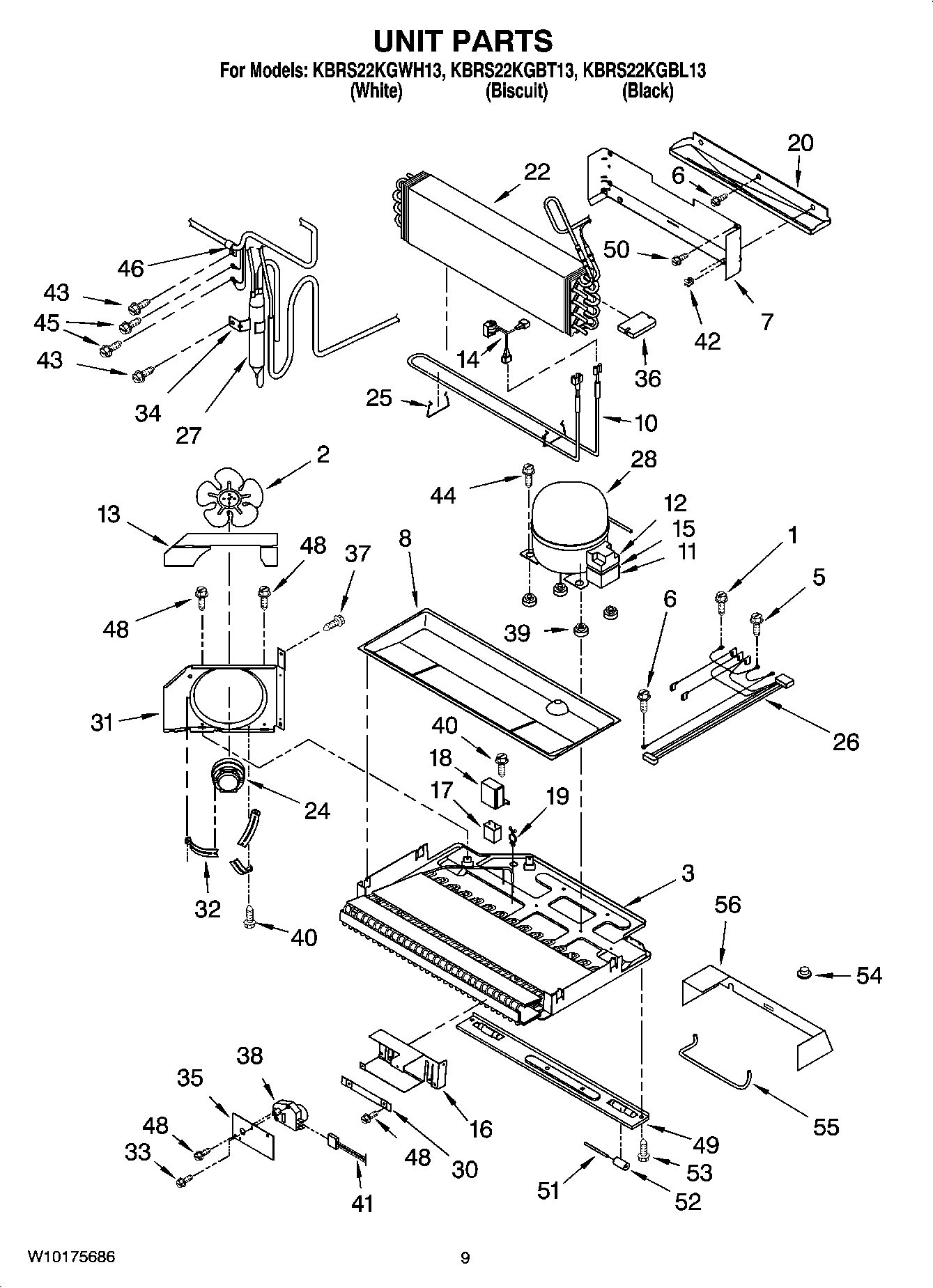

KBRS22KGBL13 06 – UNIT PARTS

Products

Position	Product
	VALVE, ACCESS (5/8“)
	Following Parts Not Illustrated and Optional Parts Not Included
	VALVE, ACCESS (1/2“)
	WP978025 Whirlpool Refrigerator Valve
	978030 Whirlpool Refrigerator Valve
	978027 Whirlpool Refrigerator Primary Valve
	978026 Whirlpool Refrigerator Primary Valve
	876764 Whirlpool Refrigerator Primary Valve
	REFRIGERANT CHARGE 4.5 Ozs. (R-134A)
1	12992301 Whirlpool Refrigerator Screw
2	WPL 4344271
3	Condenser & Pan Assembly
5	WP489399 Whirlpool Refrigerator Screw
6	WPL 4343860
7	Heat Shield
8	Drain Pan
10	WP10428409 Whirlpool Refrigerator Evaporator Heater
11	WPL 4343852
12	WP4344040 Whirlpool Refrigerator Overload
13	WPL 4344275
14	WP10442411 Whirlpool Bimetal Defrost Thermostat
15	WPW10189190 Whirlpool Start Device
16	Bracket, Timer
17	WP65889-4 Whirlpool Refrigerator Capacitor
18	WPL 4344277
19	WPL 4343969
20	Drain Pan
22	Evaporator
24	WPL 4344419
25	W11673433 Whirlpool Clip
26	Harness, Unit
27	W10843121 Whirlpool Refrigerator Tube
28	W10309990 Whirlpool Refrigerator Compressor
30	Washer
31	Shroud
32	WPL 4344272
33	Screw
34	WPL 4343763
35	Cover, Timer
36	Block, Evaporator
37	WPL 4344151
38	R0131577 Whirlpool Defrost Timer
39	WPL 4343845
40	Screw
41	Harness
42	Clip, Evap Motor
43	WP489069 Whirlpool Compactor Screw
44	WPL 4343847
46	WPL 4343661
48	Screw (2)
49	Cabinet, Brace
50	67006425 Whirlpool Refrigerator Screw
51	WPL 4344289
52	WPL 4344288
53	WPL 4344292
54	A3076901 Whirlpool Refrigerator Plug
55	Drain Tube
56	Insulation
