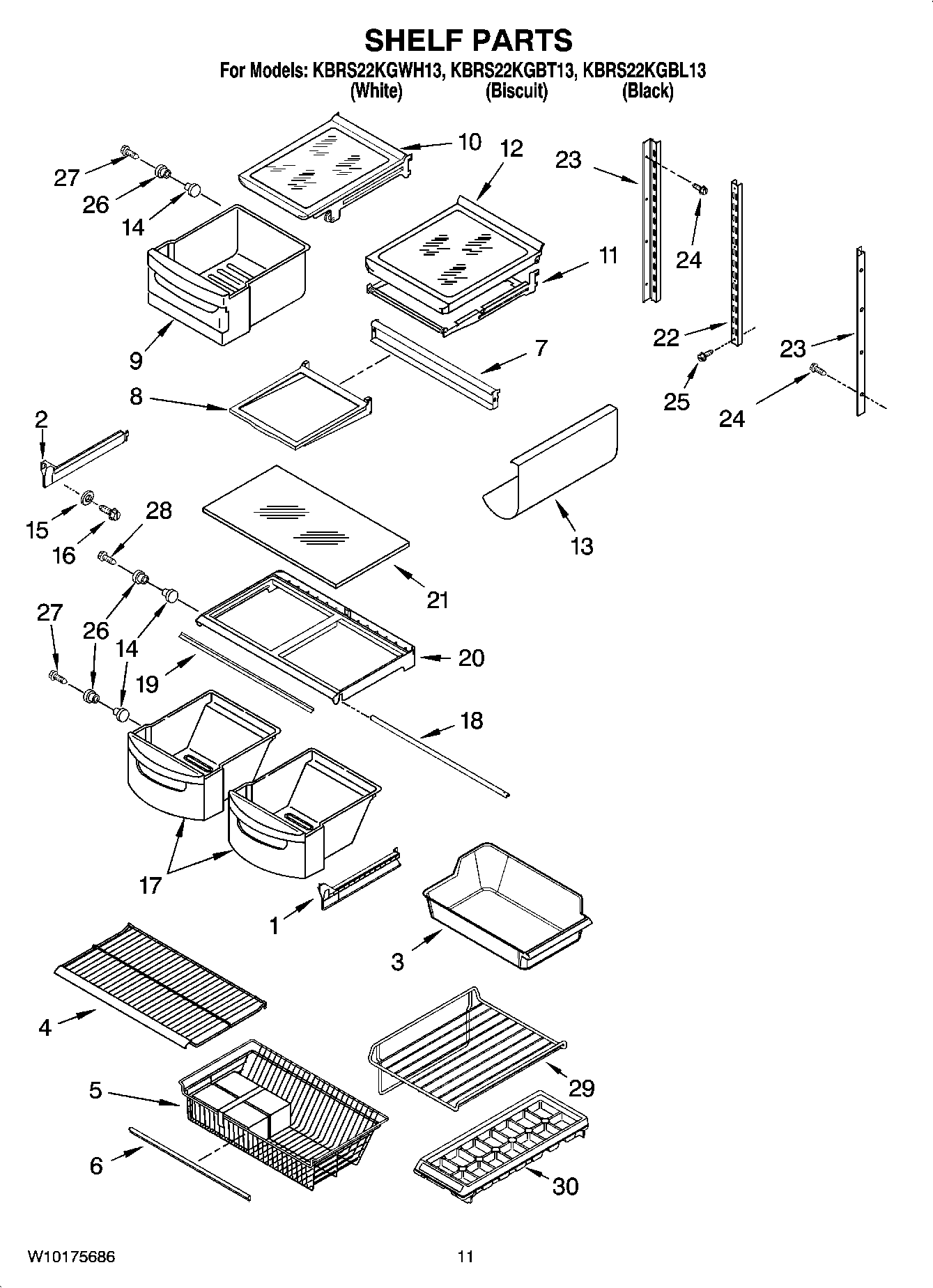

KBRS22KGBL13 07 – SHELF PARTS, OPTIONAL PARTS

KBRS22KGBL13 07 – SHELF PARTS, OPTIONAL PARTS

Written by

in

KBRS22KGBL13 07 – SHELF PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI80063A2
	Enamel, Black (1 Qt. Uncut)
	WPL 799833
	WPL 876029
	285006 Whirlpool Spray
	72032 Whirlpool Touch Up Paint Black
	4396418 Whirlpool Ice Maker
	Ice Container Assembly
	WPL ARI80064A2
	WPL LIT4344137
	WPL LIT4344141
	WPL ARI80058A4
	WPL ARI80059A8
	WPL ARI80060A7
	WPL ARI80061A3
	WPL ARI80062A8
	CEMENT, ALUMILASTIC (1 1/4 OZ.)
	TAPE, VINYL (3/4 X 108“)
	Torx Key
	511873 Whirlpool Refrigerator Paint
	212643 Whirlpool Refrigerator Permagum Sealer
	606755 Whirlpool Refrigerator Bag
	350942 Whirlpool Spray Paint
	Almond (Uncut)
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	833938 Whirlpool Refrigerator Terminal
	876370 Whirlpool Refrigerator Insulation
	350930 Whirlpool White Spray Paint
	WP503695 Whirlpool Refrigerator Sealer
	WP505587 Whirlpool Refrigerator Sealer
	WP542638 Whirlpool Refrigerator Grease
	WP72107 Whirlpool Touchup
1	Support, Crisper
2	Support, Crisper
3	WPL 4344317
4	Shelf, Frz. Wire
5	Basket, Freezer
6	Handle, Basket
7	Track, Shelf
8	Shelf Assssy, R/O
9	Meat Pan
10	Shelf Assy (Meat Pan)
11	Frame & Roller Assembly (3)
12	Shelf, S/G (3)
13	WPL 4344294
14	Eyelet, Roller
15	WP10972101 Whirlpool Refrigerator Spacer
16	WP67006908 Whirlpool Refrigerator Screw
17	Crisper (2)
18	WP2172748 Whirlpool Drawer Support
19	Gasket
20	Cover, Pan
21	Glass, Crisper Cover
22	Ladder, Center
23	Ladder, Side
24	67006425 Whirlpool Refrigerator Screw
25	Screw
26	Roller
27	WP489261 Whirlpool Refrigerator Screw
28	WPW10272364 Whirlpool Refrigerator Screw
29	Rack, Ice Tray
30	WP841180A Whirlpool Microwave Glass Turntable Tray
