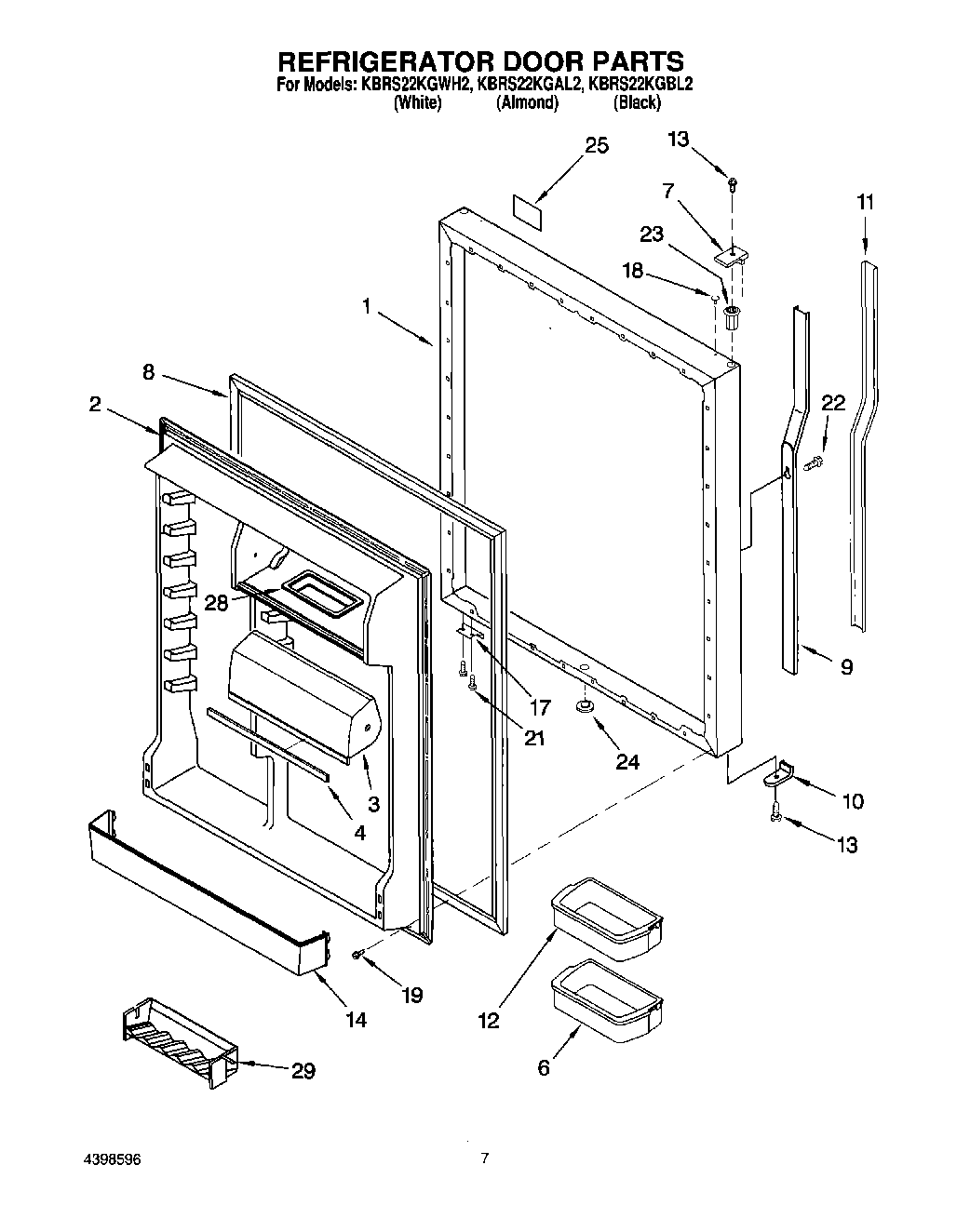

KBRS22KGBL2 05 – REFRIGERATOR DOOR

KBRS22KGBL2 05 – REFRIGERATOR DOOR

Written by

in

KBRS22KGBL2 05 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door Panel (Includes Insulation) (White)
1Refrigerator Door Panel (Includes Insulation) (Black)
1Refrigerator Door Panel (Includes Insulation) (Almond)
2Interior Panel
3WPL 4344369
4WPL 4344370
6WPL 4344532
7End Cap (Almond)
7End Cap (Black)
7End Cap
8WP12550115Q Whirlpool Door Gasket
8Door Gasket, Magnetic (Black)
9Retainer, Insert (Black)
9Retainer, Insert (Almond)
9Retainer, Insert (White)
10End Cap (Almond)
10End Cap (White)
10End Cap (Black)
11Insert, Handle (Black)
11Insert, Handle (Almond)
11Insert, Handle (White)
12Shelf Bin (3)
13Screw
14Trivet, Door
1767003781 Whirlpool Refrigerator Door Stop (BSQ)
1712968202W Whirlpool Refrigerator Door Stop
17W11708403 Whirlpool Door Stop
18WP12246608 Whirlpool Refrigerator Button
18WP67001130 Whirlpool Refrigerator White Button Plug
18Plug, Button (Almond)
19WPL 4343811
21WPW10348409 Whirlpool Screw
22Screw
23WPL 4344362
23Bushing (Black)
24Plug, Button (Almond)
24Plug, Button (Black)
24WPL 4344227
25Nameplate (Black)
25Nameplate (Almond)
25Nameplate (White)
28WPL 4344296
29WPL 4344374
