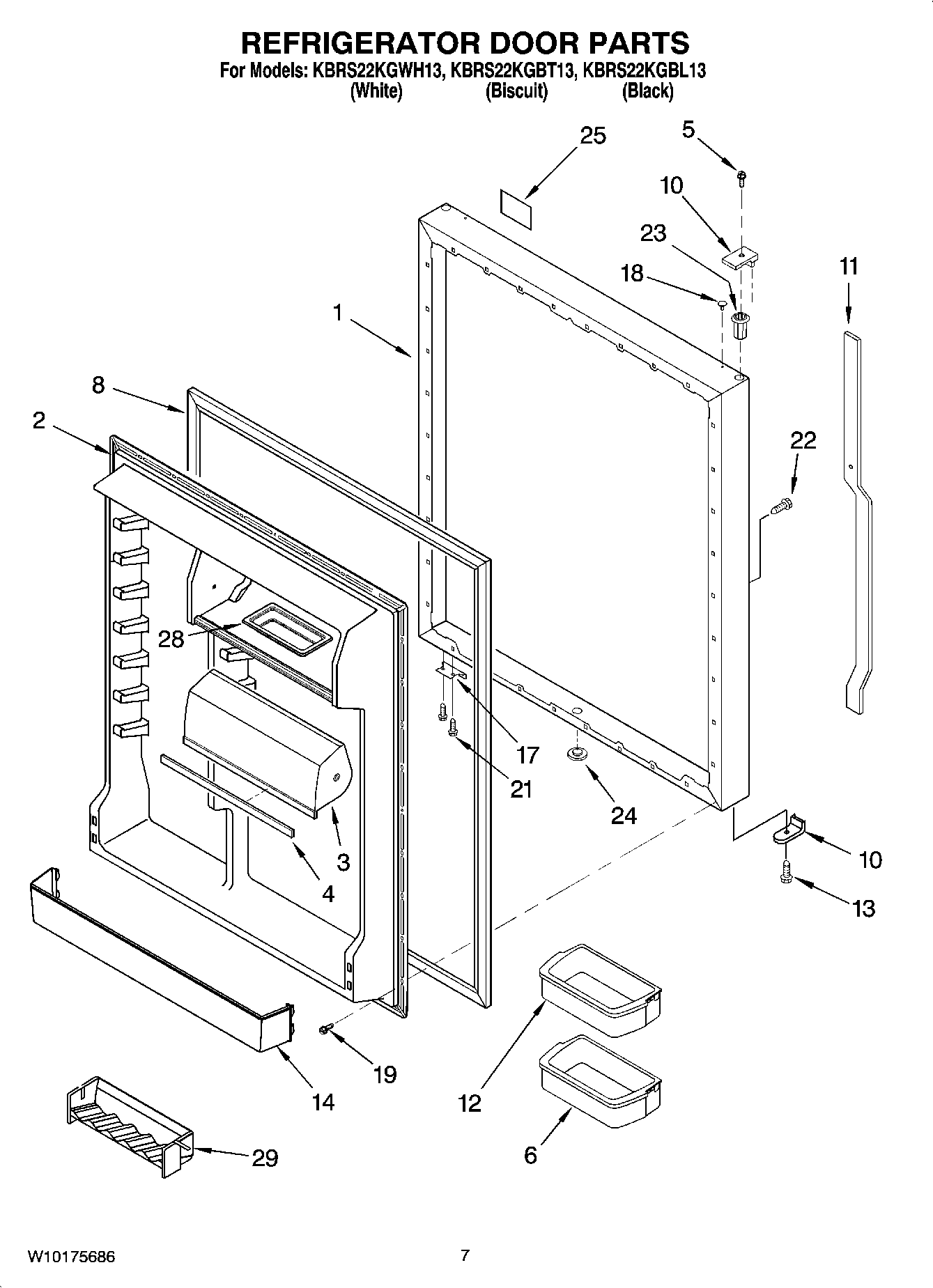

KBRS22KGBT13 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door Panel (Includes Insulation) (White)
1Refrigerator Door Panel (Includes Insulation) (Black)
1Refrigerator Door Panel (Includes Insulation) (Biscuit)
2Interior Panel
3WPL 4344369
4WPL 4344370
5WPL 4344151
6Shelf Bin (1)
8Door Gasket, Magnetic (Black)
8WP12550115Q Whirlpool Door Gasket
10End Cap (Biscuit)
10End Cap
10End Cap (Black)
11Insert, Handle (Biscuit)
11Insert, Handle (White)
11Insert, Handle (Black)
12Shelf Bin (3)
13Screw
14Trivet, Door
17W11708403 Whirlpool Door Stop
1712968202W Whirlpool Refrigerator Door Stop
1767003781 Whirlpool Refrigerator Door Stop (BSQ)
18WP67001130 Whirlpool Refrigerator White Button Plug
18WP12246608 Whirlpool Refrigerator Button
18W10709784 Whirlpool Refrigerator Handle Plug
19WPL 4343811
21WPW10348409 Whirlpool Screw
22Screw
23Bushing (Black)
23WPL 4344362
24WPL 4344227
24Plug, Button (Biscuit)
24Plug, Button (Black)
25Nameplate (Black)
25Nameplate (White)
25Nameplate (Biscuit)
28WPL 4344296
29WPL 4344374
