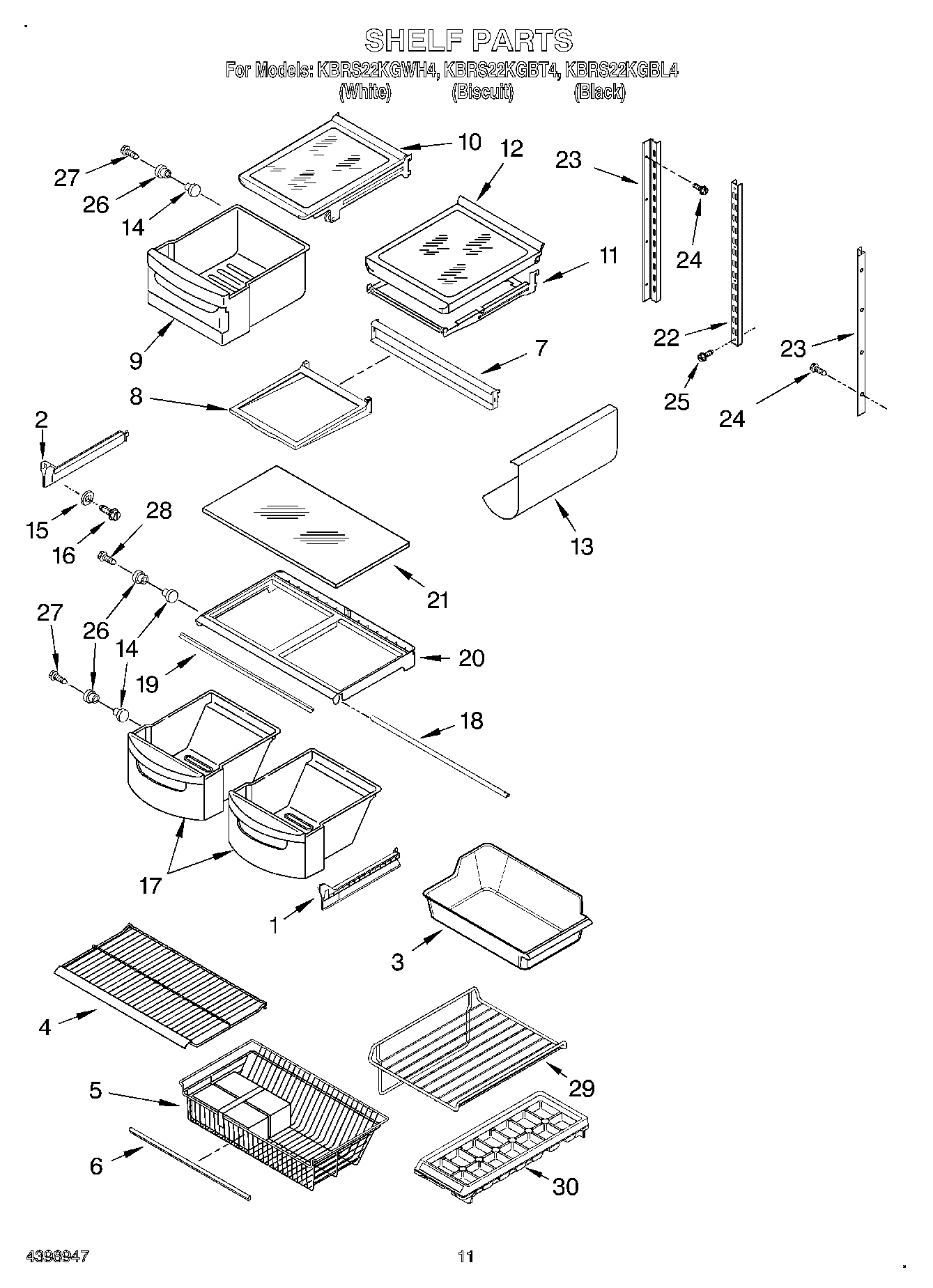

KBRS22KGBT4 07 – SHELF, LIT/OPTIONAL

Products

Position	Product
	4396418 Whirlpool Ice Maker
	WPL LIT4344141
	WPL LIT4344137
	Torx Key
1	Support, Crisper
2	Support, Crisper
3	WPL 4344317
4	Shelf, Frz. Wire
5	Basket, Freezer
6	Handle, Basket
7	Track, Shelf
8	Shelf Assssy, R/O
9	Meat Pan
10	Shelf Assy (Meat Pan)
11	Frame & Roller Assembly (3)
12	Shelf, S/G (3)
13	WPL 4344294
14	Eyelet, Roller
15	WP10972101 Whirlpool Refrigerator Spacer
16	WP67006908 Whirlpool Refrigerator Screw
17	Crisper (2)
18	WP2172748 Whirlpool Drawer Support
19	Gasket
20	Cover, Pan
21	Glass, Crisper Cover
22	Ladder, Center
23	Ladder, Side
24	67006425 Whirlpool Refrigerator Screw
25	Screw
26	Roller
27	WP489261 Whirlpool Refrigerator Screw
28	WPW10272364 Whirlpool Refrigerator Screw
29	Rack, Ice Tray
30	350930 Whirlpool White Spray Paint
30	511873 Whirlpool Refrigerator Paint
30	212643 Whirlpool Refrigerator Permagum Sealer
30	Almond (Uncut)
30	WP72107 Whirlpool Touchup
30	799344 Whirlpool Refrigerator Paint
30	350942 Whirlpool Spray Paint
30	72017 Whirlpool Appliance Touch-Up Paint White
30	350956 Whirlpool Spray Assembly
30	606755 Whirlpool Refrigerator Bag
30	833938 Whirlpool Refrigerator Terminal
30	72032 Whirlpool Touch Up Paint Black
30	285006 Whirlpool Spray
30	WPL 876029
30	WPL 799833
30	Ice Container Assembly
30	Enamel, Black (1 Qt. Uncut)
30	CEMENT, ALUMILASTIC (1 1/4 OZ.)
30	TAPE, VINYL (3/4 X 108“)
30	WP542638 Whirlpool Refrigerator Grease
30	WP505587 Whirlpool Refrigerator Sealer
30	WP503695 Whirlpool Refrigerator Sealer
30	876370 Whirlpool Refrigerator Insulation
30	WP67001255 Whirlpool Ice Bucket
