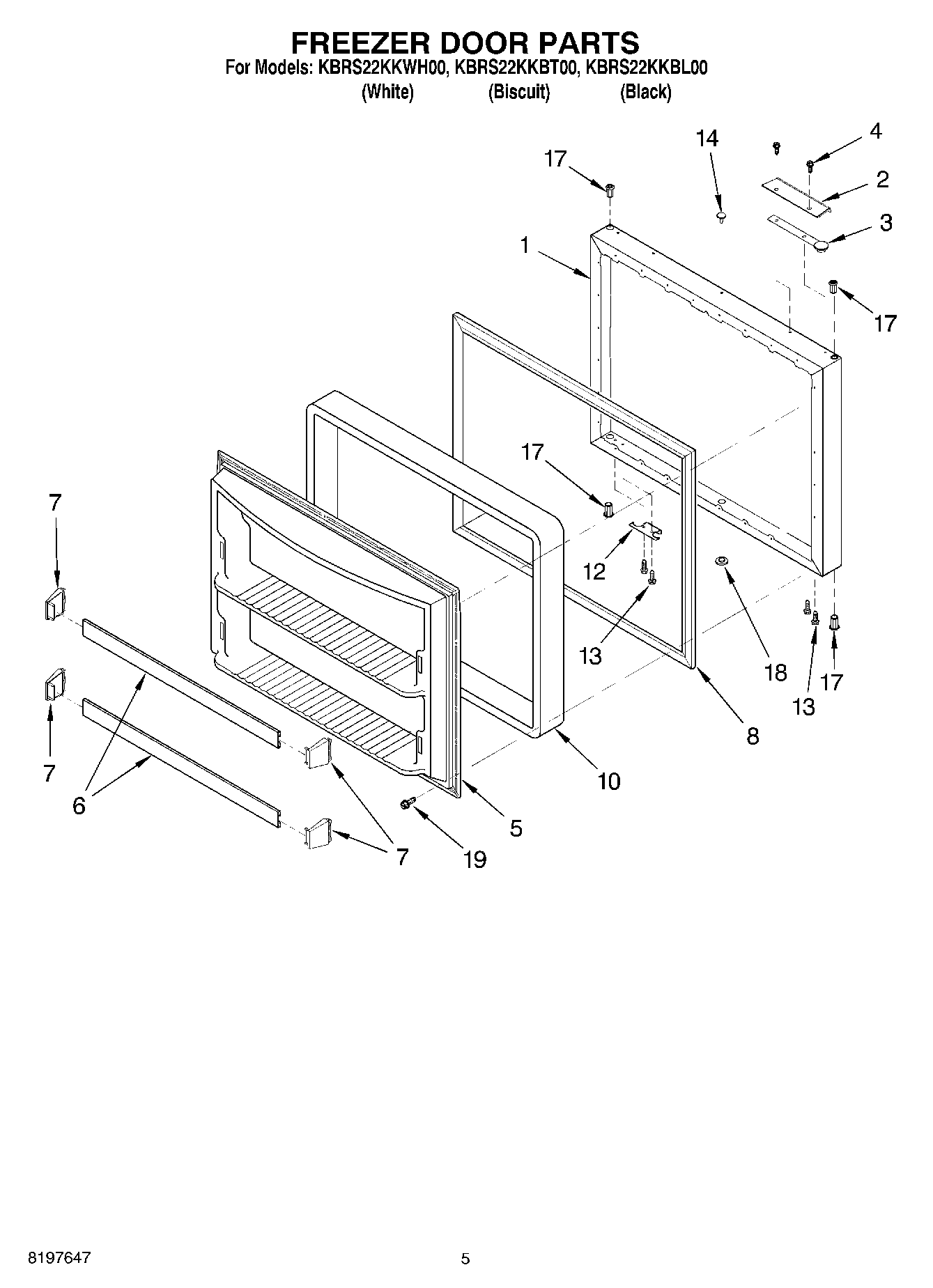

KBRS22KKBL00 03 – FREEZER DOOR

KBRS22KKBL00 03 – FREEZER DOOR

Written by

in

KBRS22KKBL00 03 – FREEZER DOOR

Products

PositionProduct
1Freezer Door Panel (Includes Insulation) (Biscuit)
1Freezer Door Panel (Includes Insulation) (White)
1Freezer Door Panel (Includes Insulation) (Black)
2Handle (White)
2Handle (Biscuit)
2Handle (Black)
3Plug, Button (White)
3Plug, Button (Black)
3Plug, Button (Biscuit)
4Screw
5Interior Panel
6Trim, Shelf
74386917 Whirlpool Endcap Kit
8WP12550116Q Whirlpool Refrigerator Gasket
8WP12550101Q Whirlpool Refrigerator Gasket
10876370 Whirlpool Refrigerator Insulation
1267003781 Whirlpool Refrigerator Door Stop (BSQ)
12W11708403 Whirlpool Door Stop
1212968202W Whirlpool Refrigerator Door Stop
13WPW10348409 Whirlpool Screw
14WP67001130 Whirlpool Refrigerator White Button Plug
14WP12246608 Whirlpool Refrigerator Button
14W10709784 Whirlpool Refrigerator Handle Plug
17WPL 4344362
17Bushing (Black)
18Plug, Button (Black)
18WPL 4344227
19WPL 4343811
