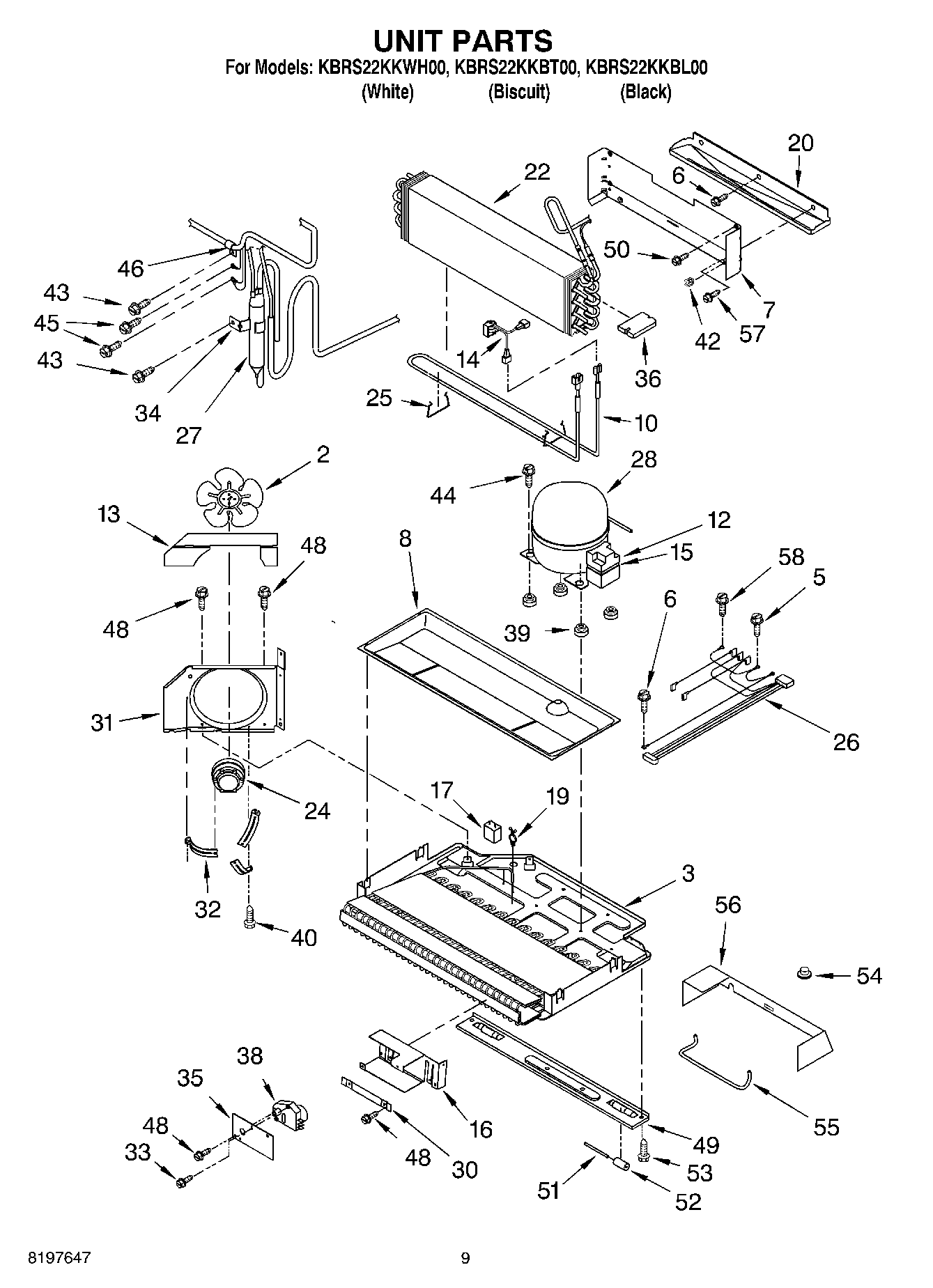

| 2 | WPL 4344271 |
| 3 | Condenser & Pan Assembly |
| 5 | WP489399 Whirlpool Refrigerator Screw |
| 6 | WPL 4343860 |
| 7 | Heat Shield |
| 8 | Drain Pan |
| 10 | WP10428409 Whirlpool Refrigerator Evaporator Heater |
| 12 | WP12555902 Whirlpool Refrigerator Overload |
| 13 | WPL 4344275 |
| 14 | WP10442411 Whirlpool Bimetal Defrost Thermostat |
| 15 | Clip |
| 16 | Bracket, Timer |
| 17 | WP65889-4 Whirlpool Refrigerator Capacitor |
| 19 | WPL 4343969 |
| 20 | Drain Pan |
| 22 | Evaporator |
| 24 | 833697 Whirlpool Condenser Fan Motor |
| 25 | W11673433 Whirlpool Clip |
| 26 | Harness, Unit |
| 27 | W10843121 Whirlpool Refrigerator Tube |
| 28 | W10309990 Whirlpool Refrigerator Compressor |
| 30 | Washer |
| 31 | Shroud |
| 32 | WPL 4344272 |
| 33 | Screw (2) |
| 34 | WPL 4343763 |
| 35 | Cover, Timer |
| 36 | Block, Evaporator |
| 38 | R0131577 Whirlpool Defrost Timer |
| 39 | WPL 4343845 |
| 40 | Screw |
| 42 | Clip, Evap Motor |
| 43 | WP489069 Whirlpool Compactor Screw |
| 44 | WPL 4343847 |
| 46 | WPL 4343661 |
| 48 | WPL 4343749 |
| 49 | Cabinet, Brace |
| 50 | 67006425 Whirlpool Refrigerator Screw |
| 51 | WPL 4344289 |
| 52 | WPL 4344288 |
| 53 | WPL 4344292 |
| 54 | A3076901 Whirlpool Refrigerator Plug |
| 55 | Drain Tube |
| 56 | Insulation |
| 58 | 978027 Whirlpool Refrigerator Primary Valve |
| 58 | 12992301 Whirlpool Refrigerator Screw |
| 58 | VALVE, ACCESS (1/2``) |
| 58 | 978030 Whirlpool Refrigerator Valve |
| 58 | 876764 Whirlpool Refrigerator Primary Valve |
| 58 | 978026 Whirlpool Refrigerator Primary Valve |
| 58 | WP978025 Whirlpool Refrigerator Valve |
| 58 | VALVE, ACCESS (5/8``) |
