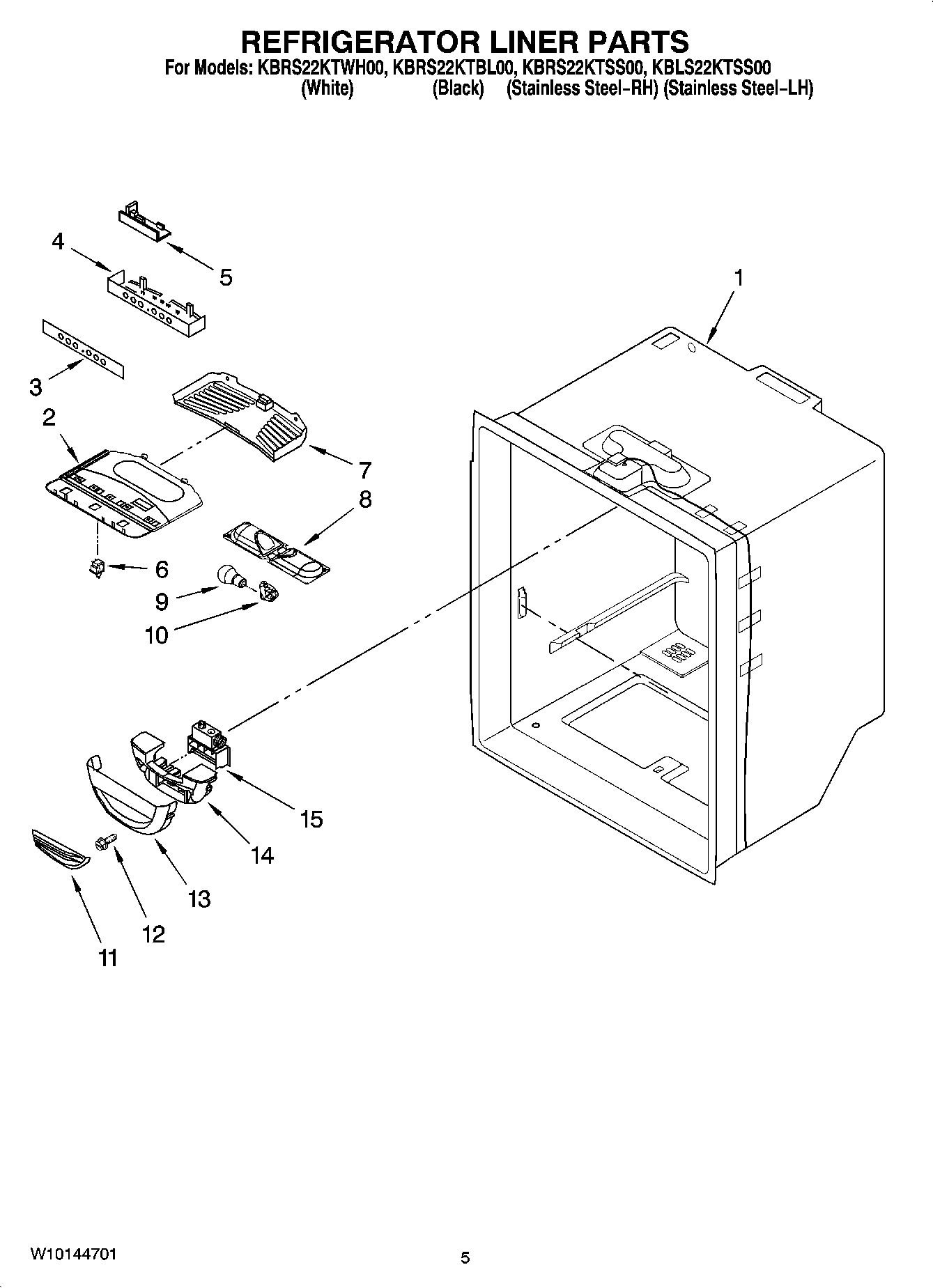

KBRS22KTBL00 03 – REFRIGERATOR LINER PARTS

KBRS22KTBL00 03 – REFRIGERATOR LINER PARTS

Written by

in

KBRS22KTBL00 03 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
2Housing, Ref. Light
3Overlay
4Module, Control
5WPW10207861-includeCORE Whirlpool WPW10207861 Refrigerator Electronic Control Board + Core
6W11384469 Whirlpool Door Switch
7W11284721 Whirlpool Refrigerator Cover
812806601 Whirlpool Refrigerator Light Housing
9W11679940 Whirlpool Refrigerator Light Bulb Assembly
10W11447232 Whirlpool Refrigerator Socket
1167003900 Whirlpool Refrigerator Insert Damper Cover
12WP400021-1 Whirlpool Screw
13WP12806701 Whirlpool Refrigerator Box Cover
14INSULATION
15WPW10196393 Whirlpool Control Damper
1567005644 Whirlpool Refrigerator Wire Harness
15Harness, Damper Control
15Following Parts Not Illustrated
