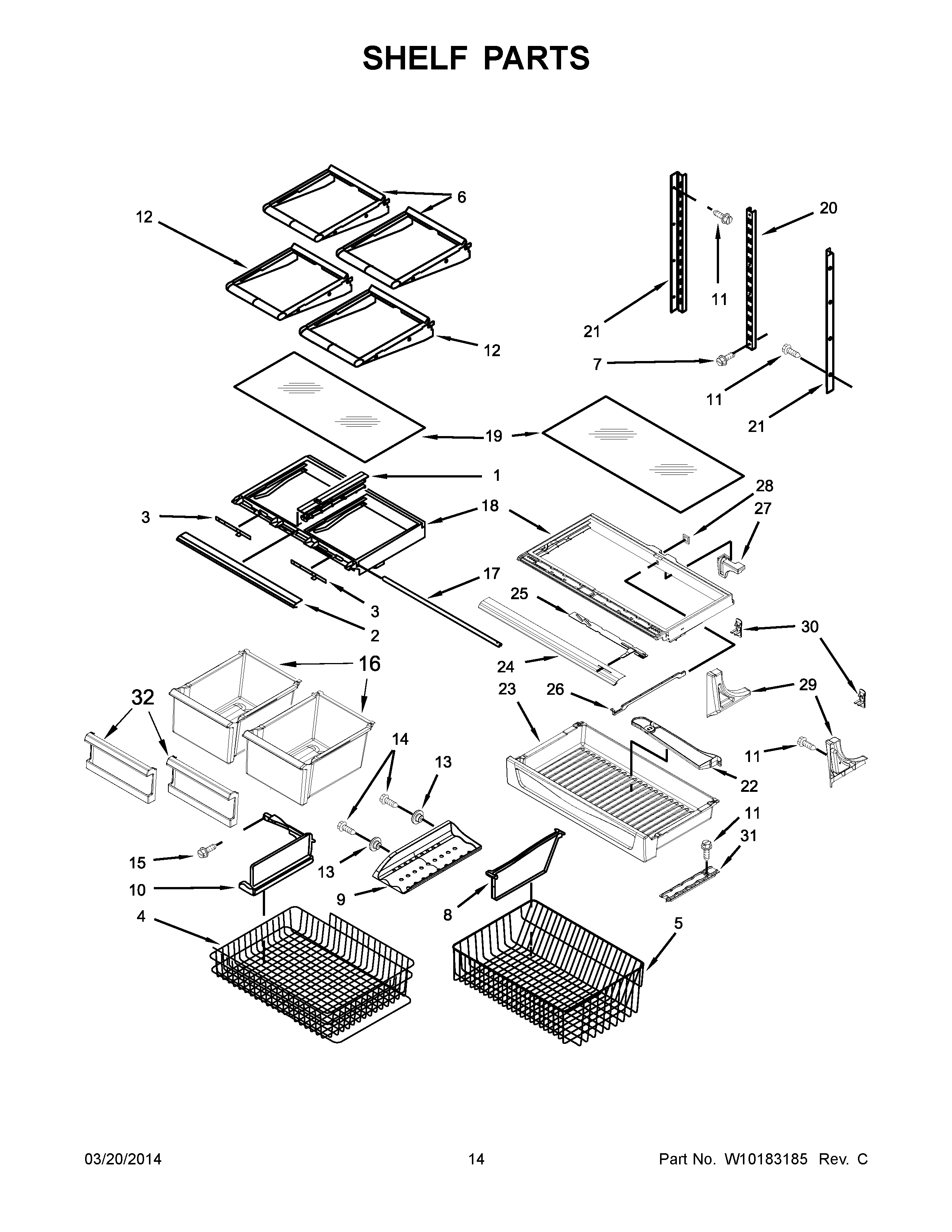

KBRS22KTBL01 08 – SHELF PARTSadmin2025-04-26T09:40:30+00:00KBRS22KTBL01 08 – SHELF PARTS
Products
| Position | Product |
|---|
| 1 | RAIL-CENTR CRISPER |
| 2 | W10231483 Whirlpool Refrigerator Trim Shelf |
| 3 | SLIDE |
| 4 | Basket, Freezer (Upper) |
| 5 | Basket, Freezer (Lower) |
| 6 | Shelf, Glide (2) |
| 7 | W10709795 Whirlpool Refrigerator Screw |
| 8 | Divider, Lower Basket |
| 9 | Rack, Ice |
| 10 | Divider, Upper Basket |
| 11 | 67006425 Whirlpool Refrigerator Screw |
| 12 | Shelf, Fixed (2) |
| 13 | WP10972101 Whirlpool Refrigerator Spacer |
| 14 | WP67006908 Whirlpool Refrigerator Screw |
| 15 | Screw |
| 16 | WP67002633 Whirlpool Crisper Pan |
| 17 | WP12227303WD Whirlpool Refrigerator Crisper Brace |
| 18 | WPW10568041 Whirlpool Refrigerator Crisper Shelf Drawer Cover |
| 19 | WP67006878 Whirlpool Refrigerator Crisper Glass |
| 20 | 67001073 Whirlpool Refrigerator Center Ladder |
| 21 | Ladder, Side |
| 22 | Divider, Pantry |
| 23 | Drawer, Pantry |
| 24 | W10656985 Whirlpool Refrigerator Trim |
| 25 | 67002002 Whirlpool Refrigerator Pantry Slide |
| 26 | Rod, Temperature Control |
| 27 | WP12531601 Whirlpool Refrigerator Tunnel |
| 28 | Gasket, Pantry |
| 29 | WP67001722 Whirlpool Refrigerator Support |
| 29 | WP67001721 Whirlpool Refrigerator Support |
| 30 | WP67001716 Whirlpool Refrigerator Shelf Support Clip Ladder Hook |
| 31 | WP67001719 Whirlpool Refrigerator Track |
| 32 | CRISPER FRONT |
