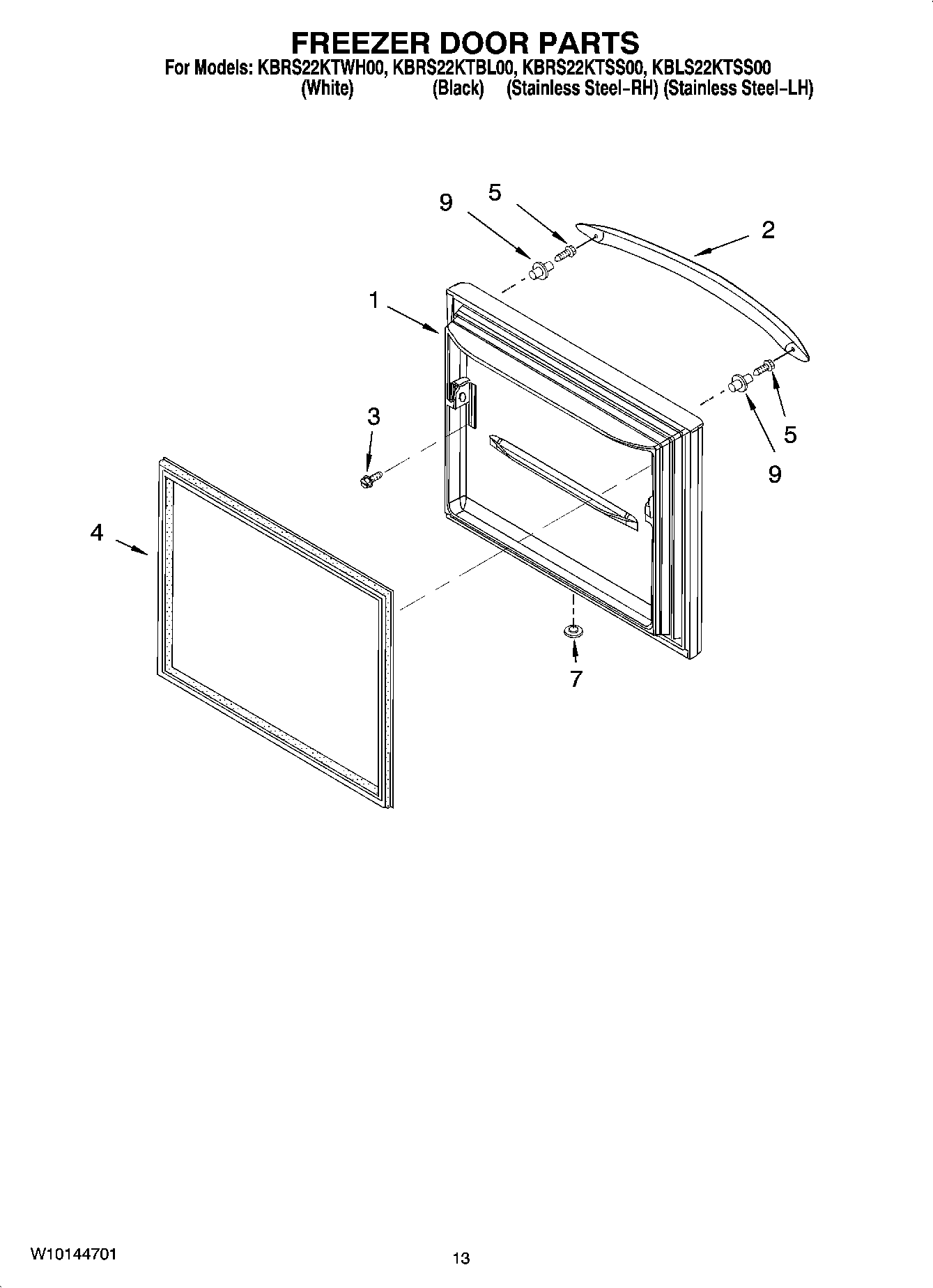

KBRS22KTSS00 07 – FREEZER DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	350930 Whirlpool White Spray Paint
	WPL 799833
	ACCESSORIES
	285006 Whirlpool Spray
	72032 Whirlpool Touch Up Paint Black
	D7824706Q Whirlpool Refrigerator Ice Maker Assembly
	FIELD INSTALLABLE ICE MAKER
	TORX SCREW WRENCH
	Miscellaneous
	Important: The spray paint is not to be used where the paint may make contact with the door gaskets.
	CLEANER, (STAINLESS STEEL)
	Enamel, Black (1 Qt. Uncut)
	CEMENT, ALUMILASTIC (1 1/4 OZ.)
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	212643 Whirlpool Refrigerator Permagum Sealer
	350942 Whirlpool Spray Paint
	833938 Whirlpool Refrigerator Terminal
	WP503695 Whirlpool Refrigerator Sealer
	WP505587 Whirlpool Refrigerator Sealer
	WP542638 Whirlpool Refrigerator Grease
	Torx Key
	TAPE, VINYL (3/4 X 108“)
1	Freezer Door (w/ Insulation) (White)
1	Freezer Door (w/ Insulation) (Black)
1	Freezer Door (w/ Insulation) (Stainless Steel)
2	WP2319727W Whirlpool Refrigerator Handle
2	Handle, Door (Stainless Steel)
2	WP2319727B Whirlpool Refrigerator Handle
3	12991101 Whirlpool Refrigerator Screw
4	W10443315 Whirlpool Door Gasket
4	WPW10436250 Whirlpool Refrigerator Freezer Door
5	WP3387230 Whirlpool Screw
7	10712401 Whirlpool Refrigerator Vent Plug (White)
7	67004838 Whirlpool Refrigerator Button Vent Plug
9	Stud, Handle
