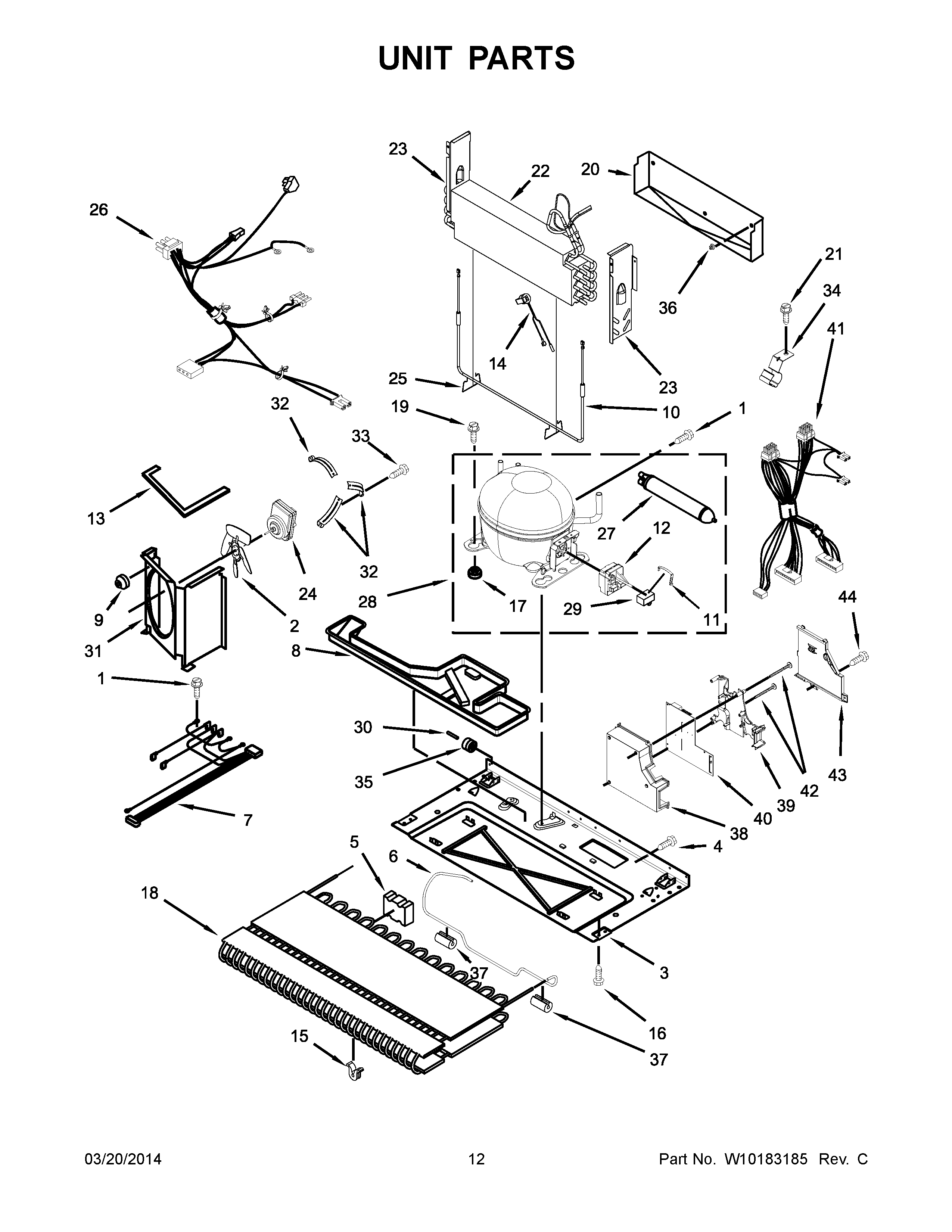

KBRS22KTSS01 07 – UNIT PARTS

KBRS22KTSS01 07 – UNIT PARTS

Written by

in

KBRS22KTSS01 07 – UNIT PARTS

Products

PositionProduct
NIVALVE, ACCESS (5/8“)
NICABINET (NOT A SERVICEABLE PART)
NIVALVE, ACCESS (1/2“)
NIWP978025 Whirlpool Refrigerator Valve
NI978030 Whirlpool Refrigerator Valve
NI978027 Whirlpool Refrigerator Primary Valve
NI978026 Whirlpool Refrigerator Primary Valve
NI876764 Whirlpool Refrigerator Primary Valve
112992301 Whirlpool Refrigerator Screw
2W10156818 Whirlpool Refrigerator Fan Blade
3Basepan
467006425 Whirlpool Refrigerator Screw
5Block, Condenser
6Discharge Tube
7W10119857 Whirlpool Wire Harness
8Drain Pan
9Grommet (3)
10WP67001794 Whirlpool Refrigerator Defrost Heater
11W10136415 Whirlpool Clip
12WPW10197426 Whirlpool Refrigerator Start Device
13WP854334 Whirlpool Air Conditioner Sealing Strip
14WPW10165425 Whirlpool Bimetal Defrost Thermostat
15WPW10137529 Whirlpool Refrigerator Grommet
16Screw (4)
17WPW10169124 Whirlpool Refrigerator Grommet
18WP67006132 Whirlpool Refrigerator Condenser
1912846902 Whirlpool Refrigerator Screw
20WPW10292802 Whirlpool Refrigerator Drip Tray
21WP33001882 Whirlpool Screw
2212001919 Whirlpool Refrigerator Evaporator Replacement Kit
23Dam (Right Side)
23Dam (Left Side)
24Motor, Fan
25W11673433 Whirlpool Clip
26Harness, Unit
27WPB2150504 Whirlpool Refrigerator Dryer
28COMPRESSOR (INCLUDES ITEMS 11,12,17,27)
29WPW10662129 Whirlpool Refrigerator Run Capacitor
3067006434 Whirlpool Axle Pin
31Shroud
32WP67004953 Whirlpool Refrigerator Bracket
33WP67004954 Whirlpool Refrigerator Screw
3410547003 Whirlpool Refrigerator Dryer Clip
35WP67005149 Whirlpool Roller
36CLIP, EVAP (2)
3767005680 Whirlpool Refrigerator Condenser Grommet
38Control Box, High Voltage
39Spacer, Box- High Voltage
40Board, HV
41Harness, HV Board
42Screw (2)
4367005421 Whirlpool Hoist Cover
44W10709801 Whirlpool Refrigerator Screw
