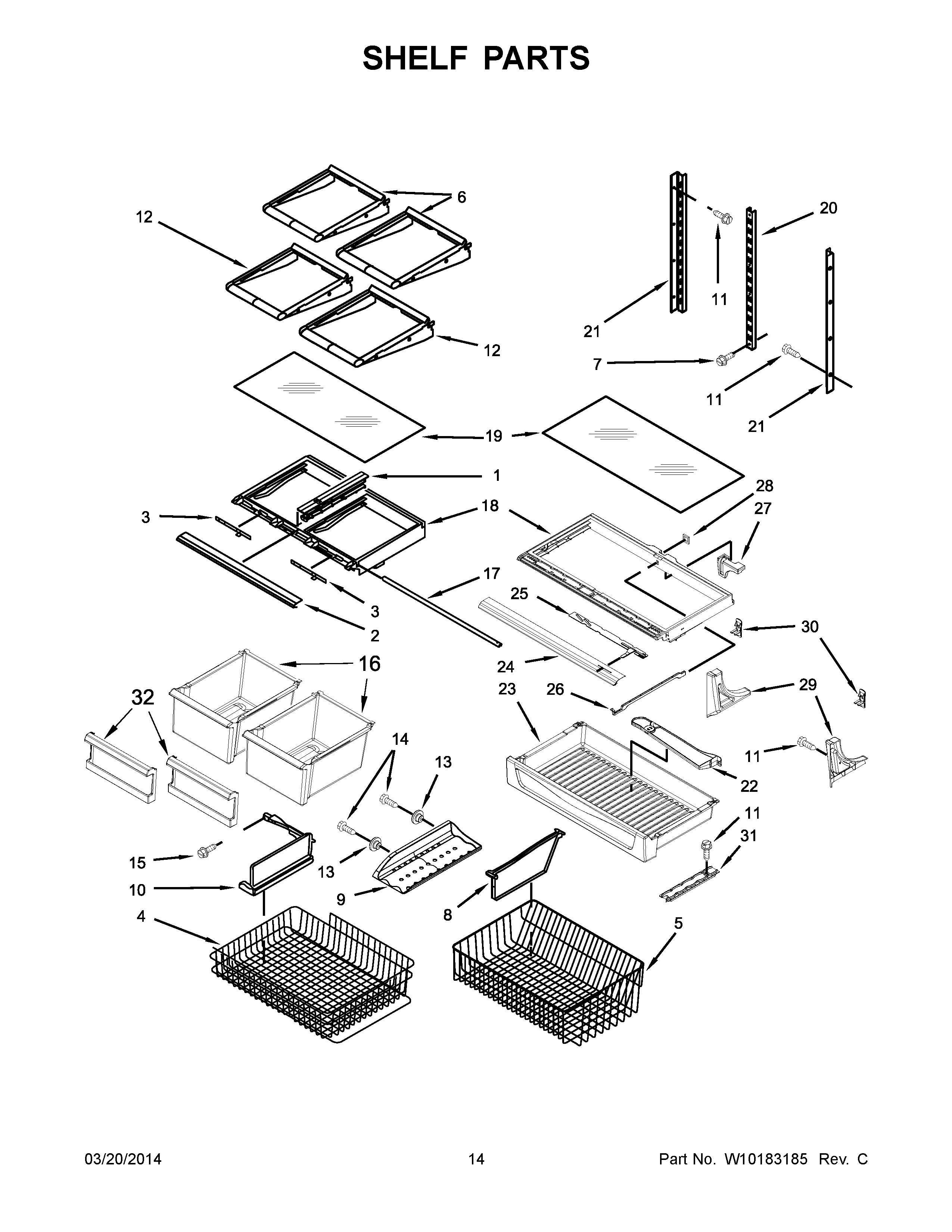

KBRS22KTSS01 08 – SHELF PARTS

Products

Position	Product
1	RAIL-CENTR CRISPER
2	W10231483 Whirlpool Refrigerator Trim Shelf
3	SLIDE
4	Basket, Freezer (Upper)
5	Basket, Freezer (Lower)
6	Shelf, Glide (2)
7	W10709795 Whirlpool Refrigerator Screw
8	Divider, Lower Basket
9	Rack, Ice
10	Divider, Upper Basket
11	67006425 Whirlpool Refrigerator Screw
12	Shelf, Fixed (2)
13	WP10972101 Whirlpool Refrigerator Spacer
14	WP67006908 Whirlpool Refrigerator Screw
15	Screw
16	WP67002633 Whirlpool Crisper Pan
17	WP12227303WD Whirlpool Refrigerator Crisper Brace
18	WPW10568041 Whirlpool Refrigerator Crisper Shelf Drawer Cover
19	WP67006878 Whirlpool Refrigerator Crisper Glass
20	67001073 Whirlpool Refrigerator Center Ladder
21	Ladder, Side
22	Divider, Pantry
23	Drawer, Pantry
24	W10656985 Whirlpool Refrigerator Trim
25	67002002 Whirlpool Refrigerator Pantry Slide
26	Rod, Temperature Control
27	WP12531601 Whirlpool Refrigerator Tunnel
28	Gasket, Pantry
29	WP67001722 Whirlpool Refrigerator Support
29	WP67001721 Whirlpool Refrigerator Support
30	WP67001716 Whirlpool Refrigerator Shelf Support Clip Ladder Hook
31	WP67001719 Whirlpool Refrigerator Track
32	CRISPER FRONT
