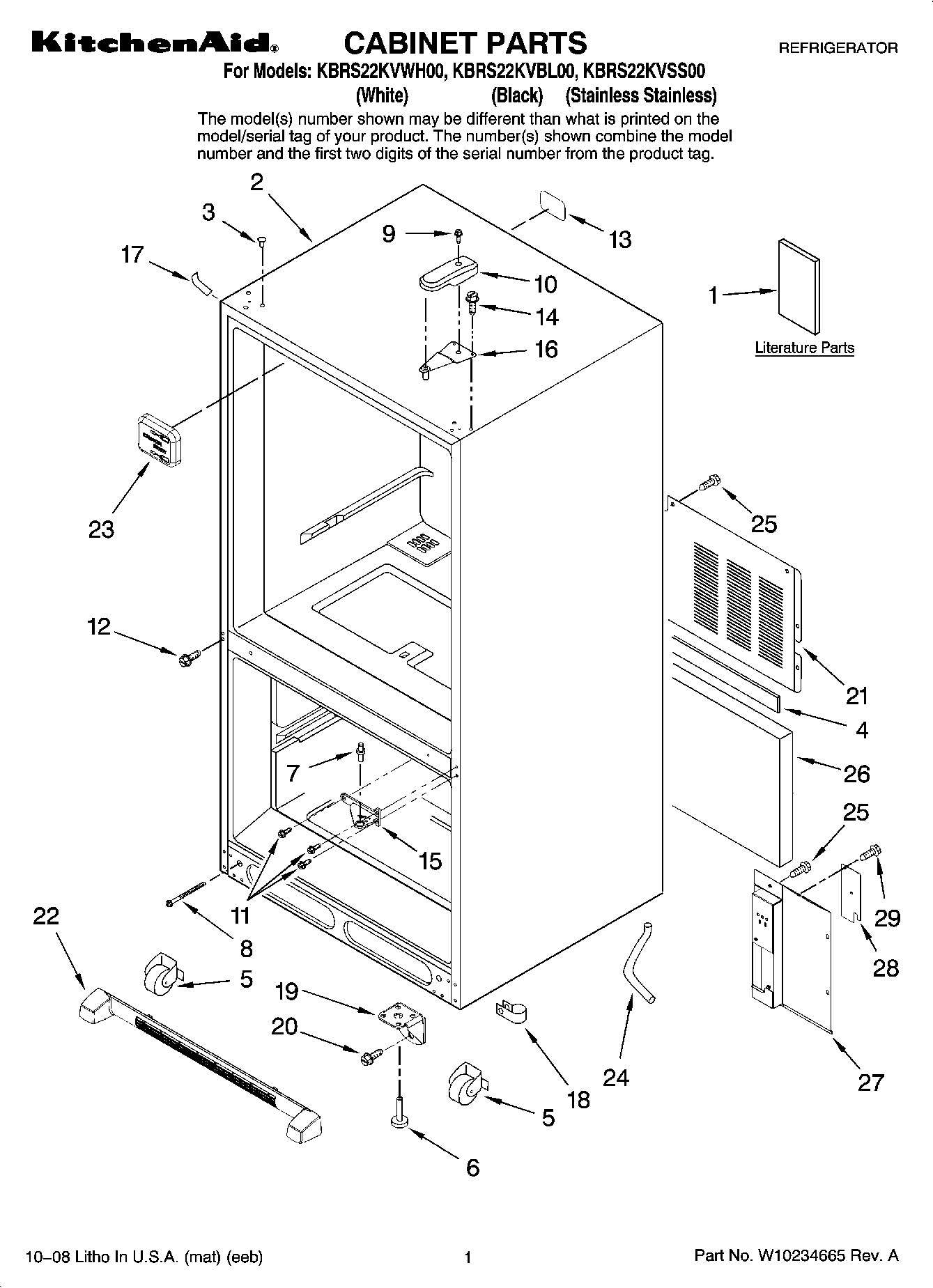

KBRS22KVBL00 01 – CABINET PARTS

Products

PositionProduct
1Tech Sheet
1Energy Guide
1Use & Care Guide
2Cabinet, (Not A Serviceable Part)
3Plug, Button (3) (Black)
3WP67001130 Whirlpool Refrigerator White Button Plug
4Gasket
5Roller Foot Assembly
6W11177593 Whirlpool Leveling Feet
7WP67006642 Whirlpool Refrigerator Pin
871003131 Whirlpool Oven Screw
9WP8281196 Whirlpool Screw
1067001012 Whirlpool Refrigerator Cover, TOP Hinge (BLK)
1067001014 Whirlpool Refrigerator Top Hinge Cover White
11WP67006380 Whirlpool Screw
12WP98165 Whirlpool Screw
13Label, Fill Tube
14WP489349 Whirlpool Refrigerator Screw
15WP12607104ED Whirlpool Refrigerator Door Hinge
15WP12607103WD Whirlpool Refrigerator Center Hinge
16WP12566606ED Whirlpool Refrigerator Door Hinge
1767003484 Whirlpool Refrigerator White Corner Cover
1767003485 Whirlpool Refrigerator Corner Cover (Black)
18Clip, Drain Tube
19Bracket, Foot (2)
2067006564 Whirlpool Refrigerator Screw
21Cover, Unit
22WPW10534162 Whirlpool Refrigerator Front Grille
22WPW10534161 Whirlpool Refrigerator Front Grille
23WP67001098 Whirlpool Refrigerator Tube Cover
24W10164397 Whirlpool Refrigerator Drain Tube
2567006425 Whirlpool Refrigerator Screw
2667003796 Whirlpool Refrigerator Fiber Acoustic
27Cover, Water Valve
28Plate, Cover
29WP489128 Whirlpool Refrigerator Screw
