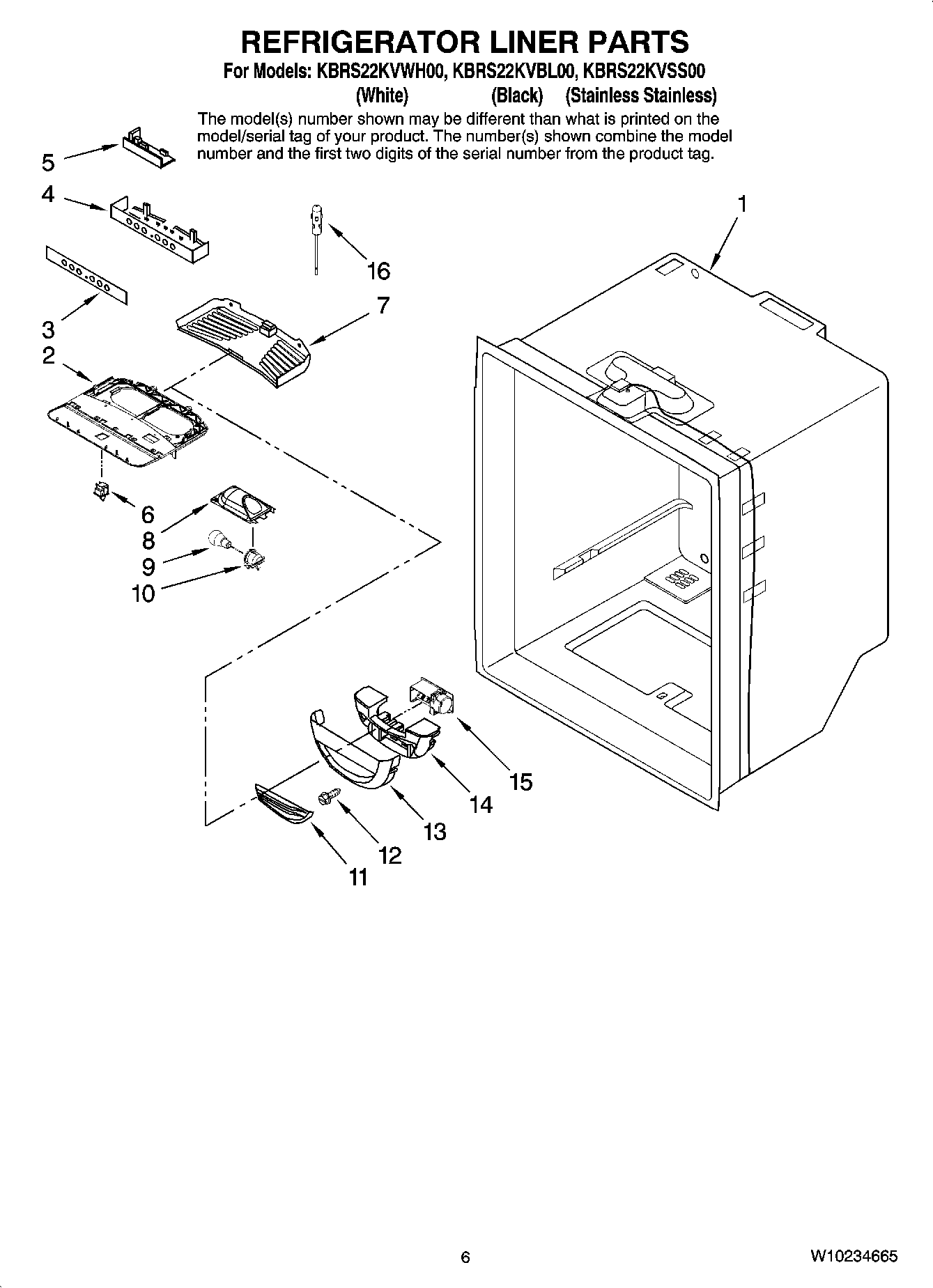

KBRS22KVBL00 04 – REFRIGERATOR LINER PARTS

KBRS22KVBL00 04 – REFRIGERATOR LINER PARTS

Written by

in

KBRS22KVBL00 04 – REFRIGERATOR LINER PARTS

Products

PositionProduct
Following Parts Not Illustrated
67005644 Whirlpool Refrigerator Wire Harness
1Liner (Not A Serviceable Part)
2Housing, Ref. Light
3Overlay
4Module, Control
5WPW10207861-includeCORE Whirlpool WPW10207861 Refrigerator Electronic Control Board + Core
6W11384469 Whirlpool Door Switch
7W11284721 Whirlpool Refrigerator Cover
812806601 Whirlpool Refrigerator Light Housing
9W11679940 Whirlpool Refrigerator Light Bulb Assembly
10W11447232 Whirlpool Refrigerator Socket
1167003900 Whirlpool Refrigerator Insert Damper Cover
12WP400021-1 Whirlpool Screw
13WP12806701 Whirlpool Refrigerator Box Cover
14INSULATION
15WPW10196393 Whirlpool Control Damper
1612002355 Whirlpool Refrigerator Thermistor Kit
