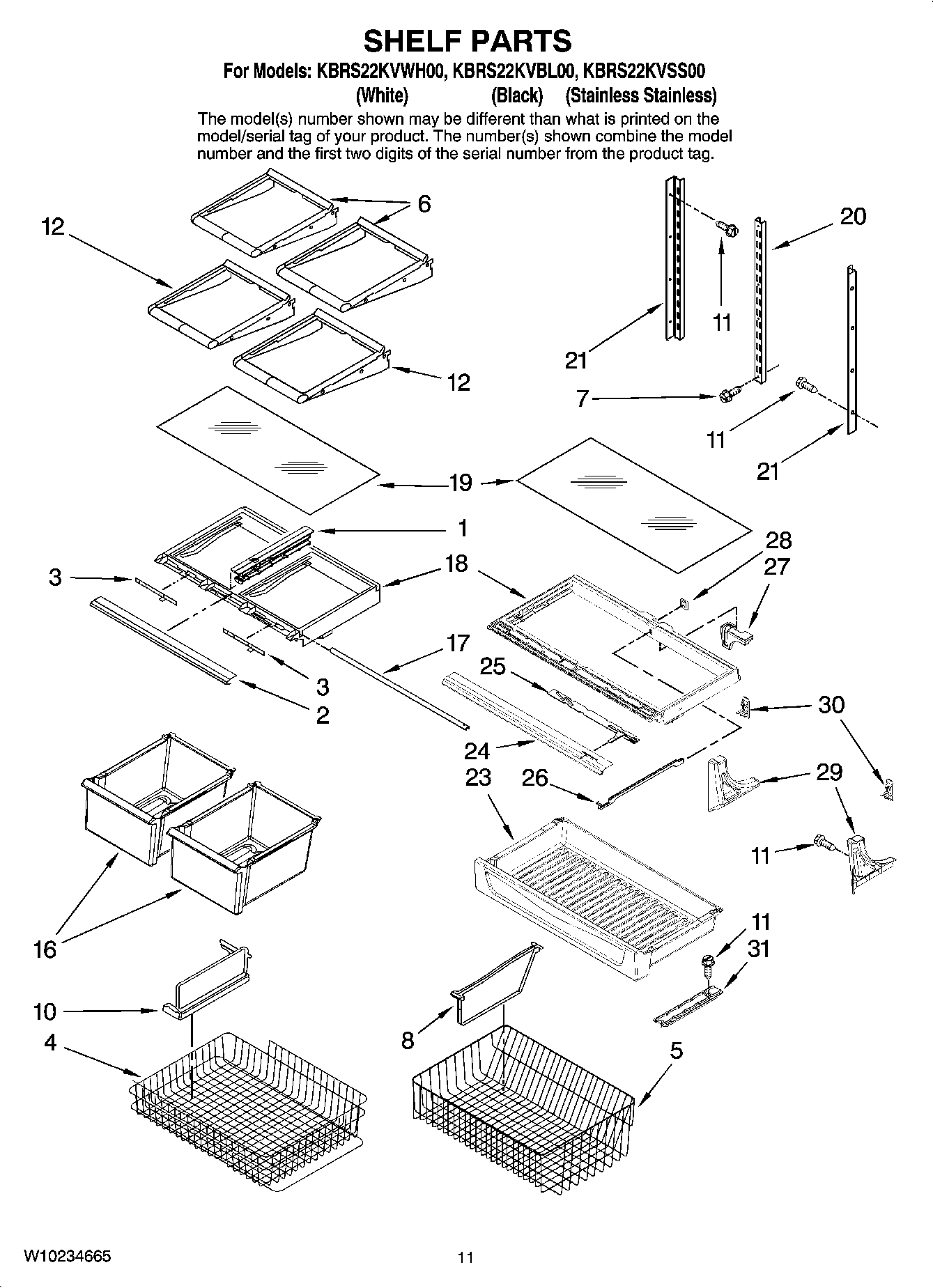

KBRS22KVBL00 07 – SHELF PARTS

Products

Position	Product
1	RAIL-CENTR CRISPER
2	W10231483 Whirlpool Refrigerator Trim Shelf
3	SLIDE
4	Basket, Freezer (Upper)
5	WPW10503183 Whirlpool Freezer Basket
6	W11402521 Whirlpool Refrigerator Glass Shelf
7	W10709795 Whirlpool Refrigerator Screw
8	Divider, Basket (Lower)
10	Divider, Upper Basket
11	67006425 Whirlpool Refrigerator Screw
12	W11402523 Whirlpool Refrigerator Glass Shelf
16	WP67002633 Whirlpool Crisper Pan
17	WP12227303WD Whirlpool Refrigerator Crisper Brace
18	WPW10568041 Whirlpool Refrigerator Crisper Shelf Drawer Cover
19	WP67006878 Whirlpool Refrigerator Crisper Glass
20	67001073 Whirlpool Refrigerator Center Ladder
21	Ladder, Side
23	Drawer, Pantry
24	W10656985 Whirlpool Refrigerator Trim
25	67002002 Whirlpool Refrigerator Pantry Slide
26	Rod, Temperature Control
27	WP12531601 Whirlpool Refrigerator Tunnel
28	Gasket, Pantry
29	WP67001722 Whirlpool Refrigerator Support
29	WP67001721 Whirlpool Refrigerator Support
30	WP67001716 Whirlpool Refrigerator Shelf Support Clip Ladder Hook
31	WP67001719 Whirlpool Refrigerator Track
