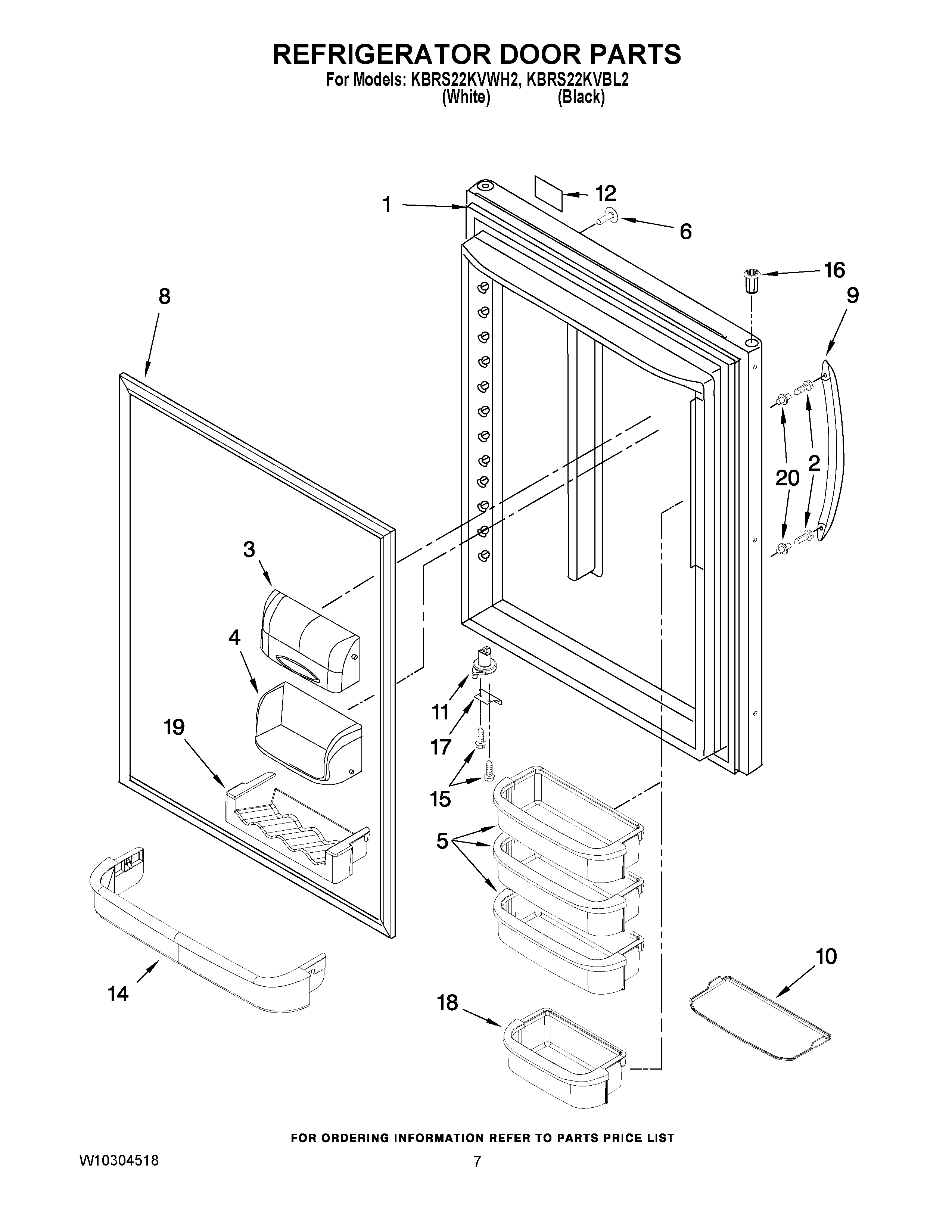

KBRS22KVBL2 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	DOOR, REFRIGERATOR (BLACK)
1	12658572WQ Whirlpool Refrigerator DOR-FIP White
2	WP3387230 Whirlpool Screw
3	WP67003637 Whirlpool Dairy Door
4	WP67001279 Whirlpool Refrigerator Dairy Tray
5	WPW10371195 Whirlpool Refrigerator Cantilever Bin
6	WP67001130 Whirlpool Refrigerator White Button Plug
6	WP12246608 Whirlpool Refrigerator Button
8	W10443313 Whirlpool Door Gasket
8	WPW10436248 Whirlpool Door Gasket
9	HANDLE, DOOR (BLACK)
9	WPW10314515 Whirlpool Refrigerator Handle
10	WPW10450021 Whirlpool Refrigerator Mat
11	WP67003639 Whirlpool Refrigerator Closer
11	WP67003638 Whirlpool Closing Cam
12	WPW10243393 Whirlpool Dishwasher Nameplate
12	WPW10243392 Whirlpool Dishwasher Nameplate
12	NAMEPLATE
14	Retainer, Door
15	WP98165 Whirlpool Screw
16	67004978 Whirlpool Refrigerator Black Door Bushing
16	WP67004977 Whirlpool Refrigerator Door Hinge Bushing
17	W11708403 Whirlpool Door Stop
17	12968202W Whirlpool Refrigerator Door Stop
18	Bucket, Short
19	WP67005626 Whirlpool Refrigerator Can Caddy
20	MOUNT, HANDLE
