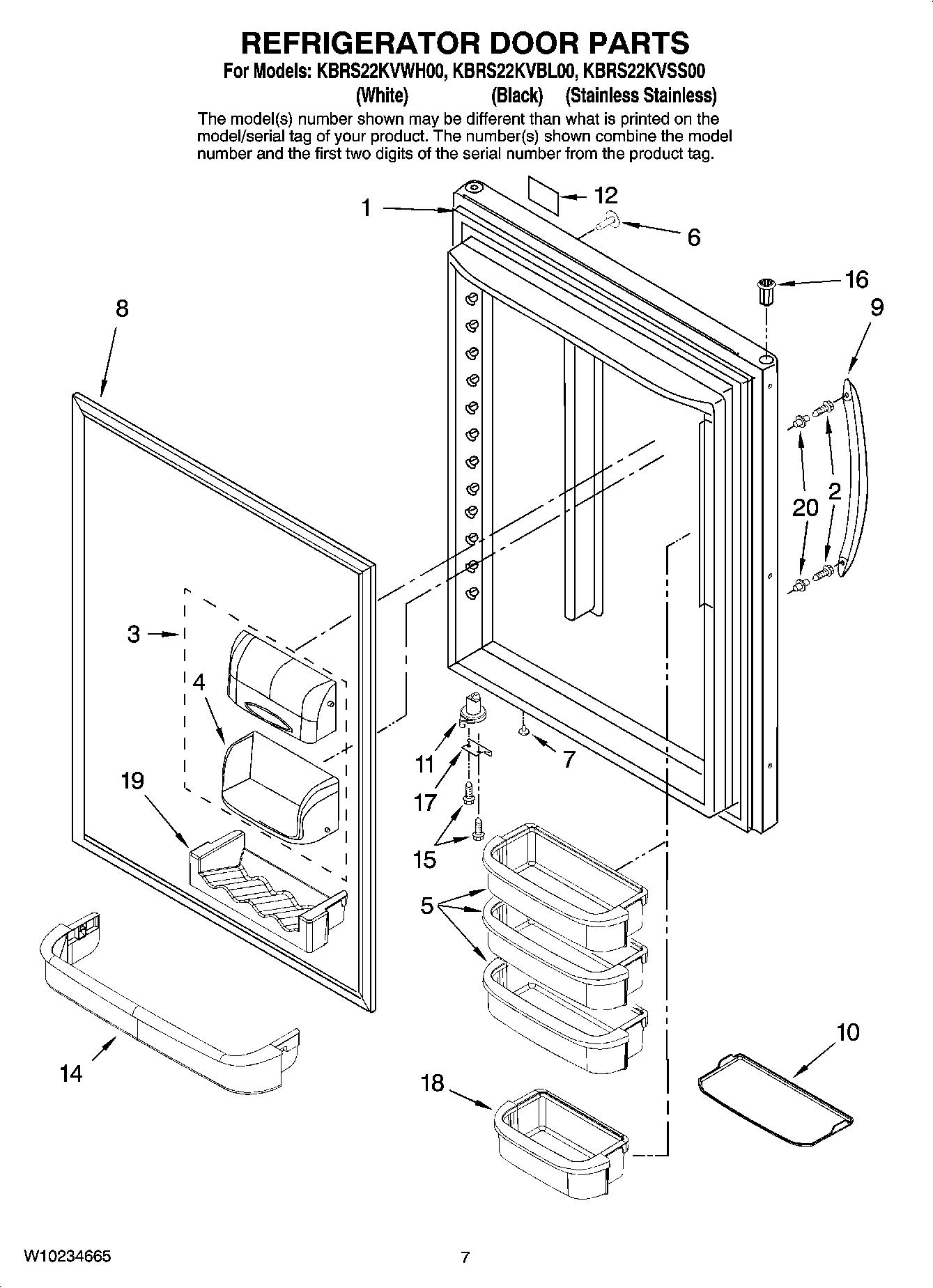

KBRS22KVSS00 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	DOOR, REFRIGERATOR (STAINLESS-RH)
1	Door, Refrigerator (White)
1	Door, Refrigerator (Black)
2	67006901 Whirlpool Refrigerator Screw
3	WP12744905 Whirlpool Refrigerator Compressor Door
4	WP67001279 Whirlpool Refrigerator Dairy Tray
5	WPW10371195 Whirlpool Refrigerator Cantilever Bin
6	WP67001130 Whirlpool Refrigerator White Button Plug
6	WP12246608 Whirlpool Refrigerator Button
7	67004838 Whirlpool Refrigerator Button Vent Plug
7	10712401 Whirlpool Refrigerator Vent Plug (White)
8	W10443313 Whirlpool Door Gasket
8	WPW10436248 Whirlpool Door Gasket
9	Handle, Door (Black)
9	WPW10314515 Whirlpool Refrigerator Handle
9	WPW10314517K Whirlpool Refrigerator Handle
10	WPW10450021 Whirlpool Refrigerator Mat
11	WP67003639 Whirlpool Refrigerator Closer
11	WP67003638 Whirlpool Closing Cam
12	WPW10243393 Whirlpool Dishwasher Nameplate
14	Retainer, Door
15	WP98165 Whirlpool Screw
16	67004978 Whirlpool Refrigerator Black Door Bushing
16	WP67004977 Whirlpool Refrigerator Door Hinge Bushing
17	12968202W Whirlpool Refrigerator Door Stop
17	W11708403 Whirlpool Door Stop
18	Bucket, Short
19	WP67005626 Whirlpool Refrigerator Can Caddy
20	WP67006113 Whirlpool Stud Bolt
