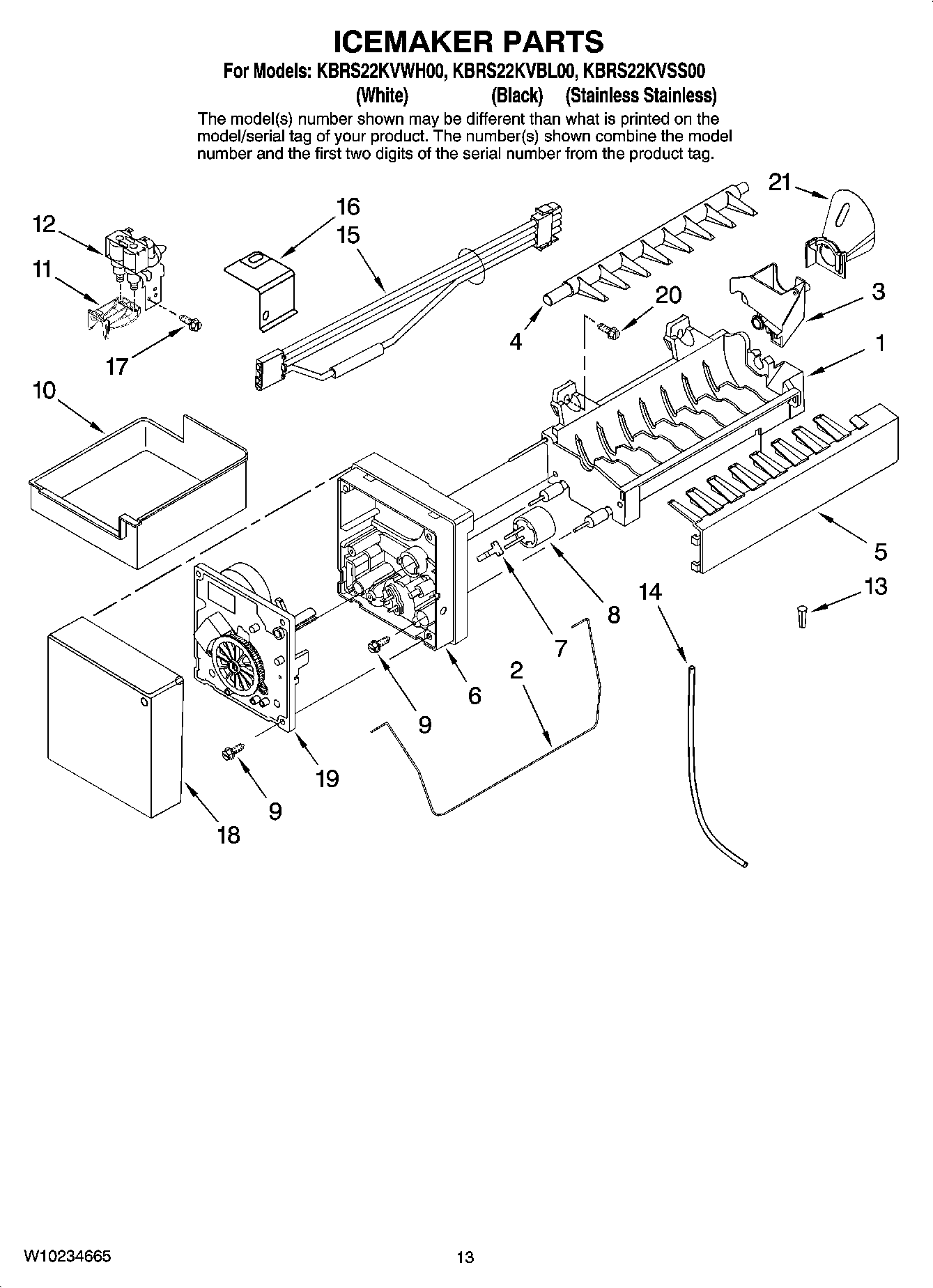

KBRS22KVSS00 08 – ICEMAKER PARTS, OPTIONAL PARTS

KBRS22KVSS00 08 – ICEMAKER PARTS, OPTIONAL PARTS

Written by

in

KBRS22KVSS00 08 – ICEMAKER PARTS, OPTIONAL PARTS

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Torx Key
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	TAPE, VINYL (3/4 X 108“)
	CEMENT, ALUMILASTIC (1 1/4 OZ.)
	WPL 799833
	285006 Whirlpool Spray
	72032 Whirlpool Touch Up Paint Black
	WPL ARI80207A6
	WPL ARI80206A9
	WPL ARI80204A7
	CLEANER, (STAINLESS STEEL)
	WPL ARI80205A3
	WP542638 Whirlpool Refrigerator Grease
	WP505587 Whirlpool Refrigerator Sealer
	WP503695 Whirlpool Refrigerator Sealer
	350942 Whirlpool Spray Paint
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	212643 Whirlpool Refrigerator Permagum Sealer
	4392901 Whirlpool Biscuit Spray Paint
	833938 Whirlpool Refrigerator Terminal
1	Mold & Heater Assembly (Not Available Order D7824706Q)
2	ARM-SHUT
3	WP628356 Whirlpool Refrigerator Fill Cup
4	WP627843 Whirlpool Refrigerator Ejector Arm
5	WP2182124 Whirlpool Refrigerator Stripper Arm
6	WP2195914 Whirlpool Refrigerator Ice Maker Housing
7	WP2315522 Whirlpool Refrigerator Clip
8	Thermostat (Not Available Order D7824706Q)
9	WP681249 Whirlpool Screw Assembly
10	WPW10171529 Whirlpool Refrigerator Ice Pan
11	12831101 Whirlpool Refrigerator Tube Clamp
12	WP67006531 Whirlpool Water Inlet Valve
13	WPA3223101 Whirlpool Refrigerator Insert PL
14	WPB5705307 Whirlpool Refrigerator Tube
15	WPD7813010 Whirlpool Refrigerator Wire Harness
16	WP2256087 Whirlpool Refrigerator Bracket
17	681390 Whirlpool Refrigerator Screw
18	WPW10289690 Whirlpool Ice Maker Cover
19	Module Assembly (Not Available Order D7824706Q)
20	WP98165 Whirlpool Screw
21	12918001 Whirlpool Refrigerator Funnel
100	D7824706Q Whirlpool Refrigerator Ice Maker Assembly
