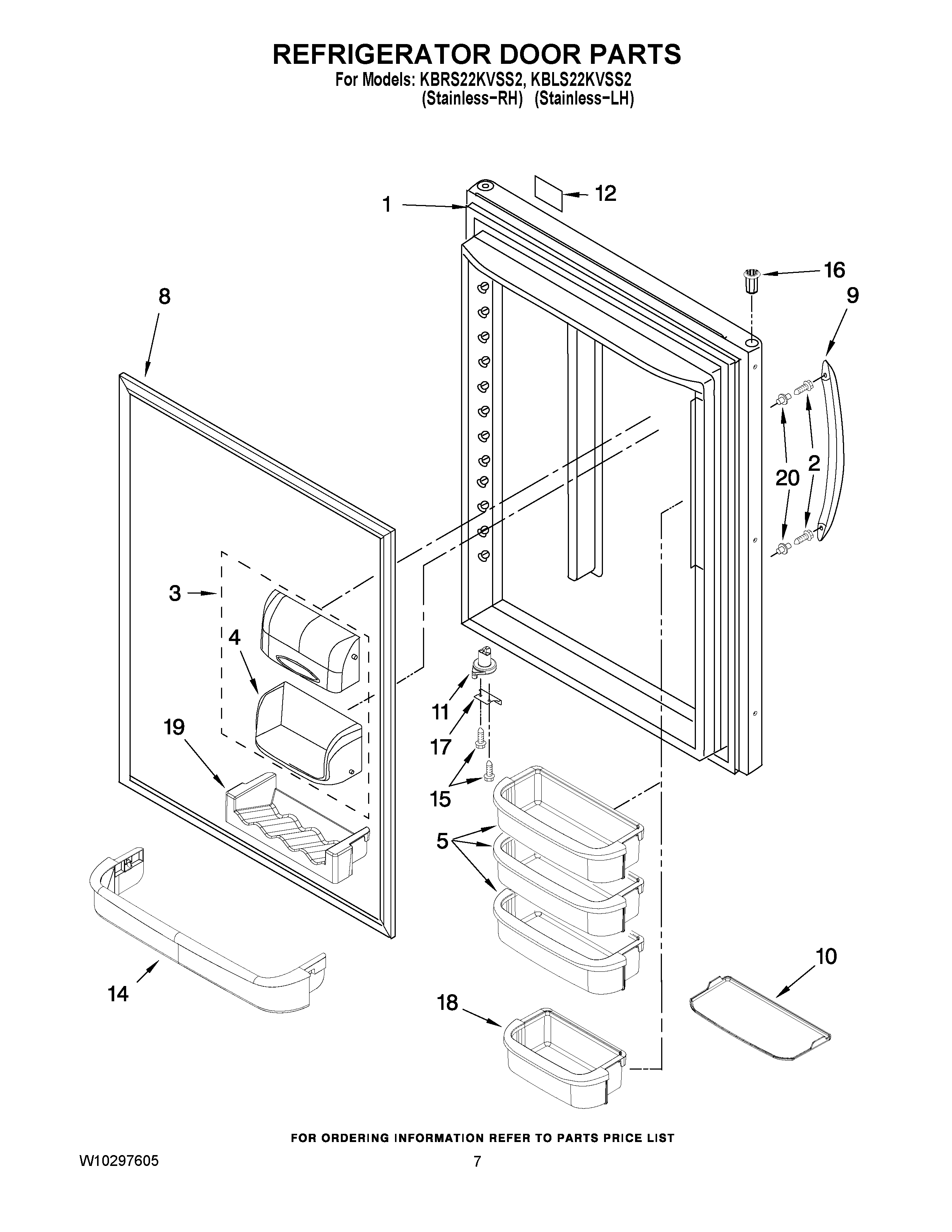

KBRS22KVSS2 05 – REFRIGERATOR DOOR PARTS

KBRS22KVSS2 05 – REFRIGERATOR DOOR PARTS

Written by

in

KBRS22KVSS2 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1DOOR, REFRIGERATOR (STAINLESS STEEL-LH)
1DOOR, REFRIGERATOR (STAINLESS STEEL-RH)
2WP3387230 Whirlpool Screw
3WP12744905 Whirlpool Refrigerator Compressor Door
4WP67001279 Whirlpool Refrigerator Dairy Tray
5WPW10371195 Whirlpool Refrigerator Cantilever Bin
8WPW10436248 Whirlpool Door Gasket
9WPW10314517K Whirlpool Refrigerator Handle
10WPW10450021 Whirlpool Refrigerator Mat
11WP67003639 Whirlpool Refrigerator Closer
12NAMEPLATE
14Retainer, Door
15WP98165 Whirlpool Screw
1667004978 Whirlpool Refrigerator Black Door Bushing
17W11708403 Whirlpool Door Stop
18Bucket, Short
19WP67005626 Whirlpool Refrigerator Can Caddy
20MOUNT, HANDLE
