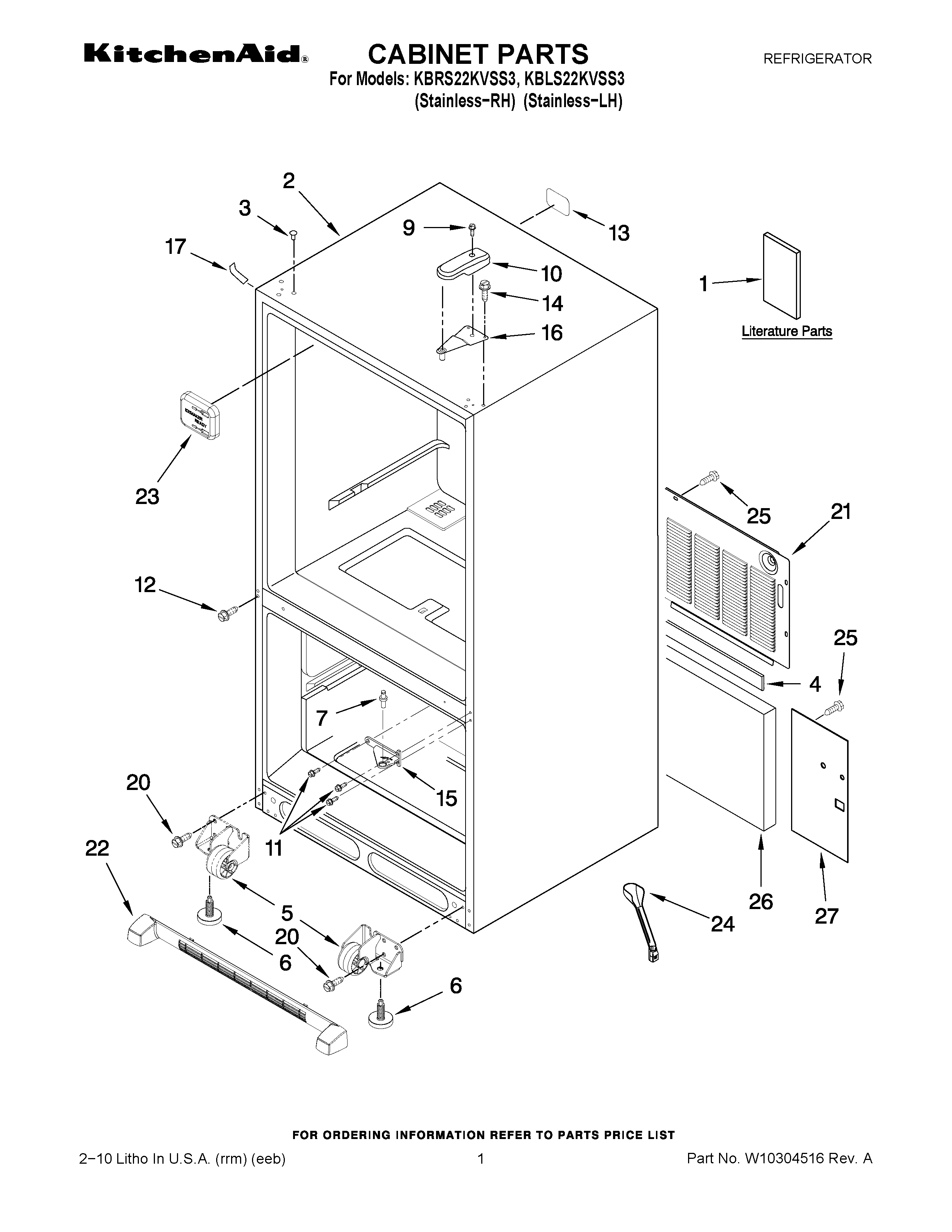

KBRS22KVSS3 01 – CABINET PARTS

KBRS22KVSS3 01 – CABINET PARTS

Written by

in

KBRS22KVSS3 01 – CABINET PARTS

Products

PositionProduct
1TECH SHEET
1Energy Guide
1Use & Care Guide
3Plug, Button (3) (Black)
4B5759655 Whirlpool Refrigerator Gasket
5WPW10515763 Whirlpool Refrigerator Cabinet Roller
5WPW10515762 Whirlpool Refrigerator Cabinet Roller
6WPW10141622 Whirlpool Leveler
7WP67006642 Whirlpool Refrigerator Pin
9WP8281196 Whirlpool Screw
10CABINET (NOT A SERVICEABLE PART)
11WP67006380 Whirlpool Screw
12WP98165 Whirlpool Screw
13W11685757 Whirlpool Label
14WP489349 Whirlpool Refrigerator Screw
15WP12607104ED Whirlpool Refrigerator Door Hinge
16WP12566606ED Whirlpool Refrigerator Door Hinge
1767003485 Whirlpool Refrigerator Corner Cover (Black)
2067006564 Whirlpool Refrigerator Screw
21WPW10210979 Whirlpool Refrigerator Back Cover
22WPW10534162 Whirlpool Refrigerator Front Grille
23WP67001098 Whirlpool Refrigerator Tube Cover
24W10619951 Whirlpool Drain Tube with Grommet
2567006425 Whirlpool Refrigerator Screw
26INSULATION, SOUND
27W11684617 Whirlpool Valve Cover
