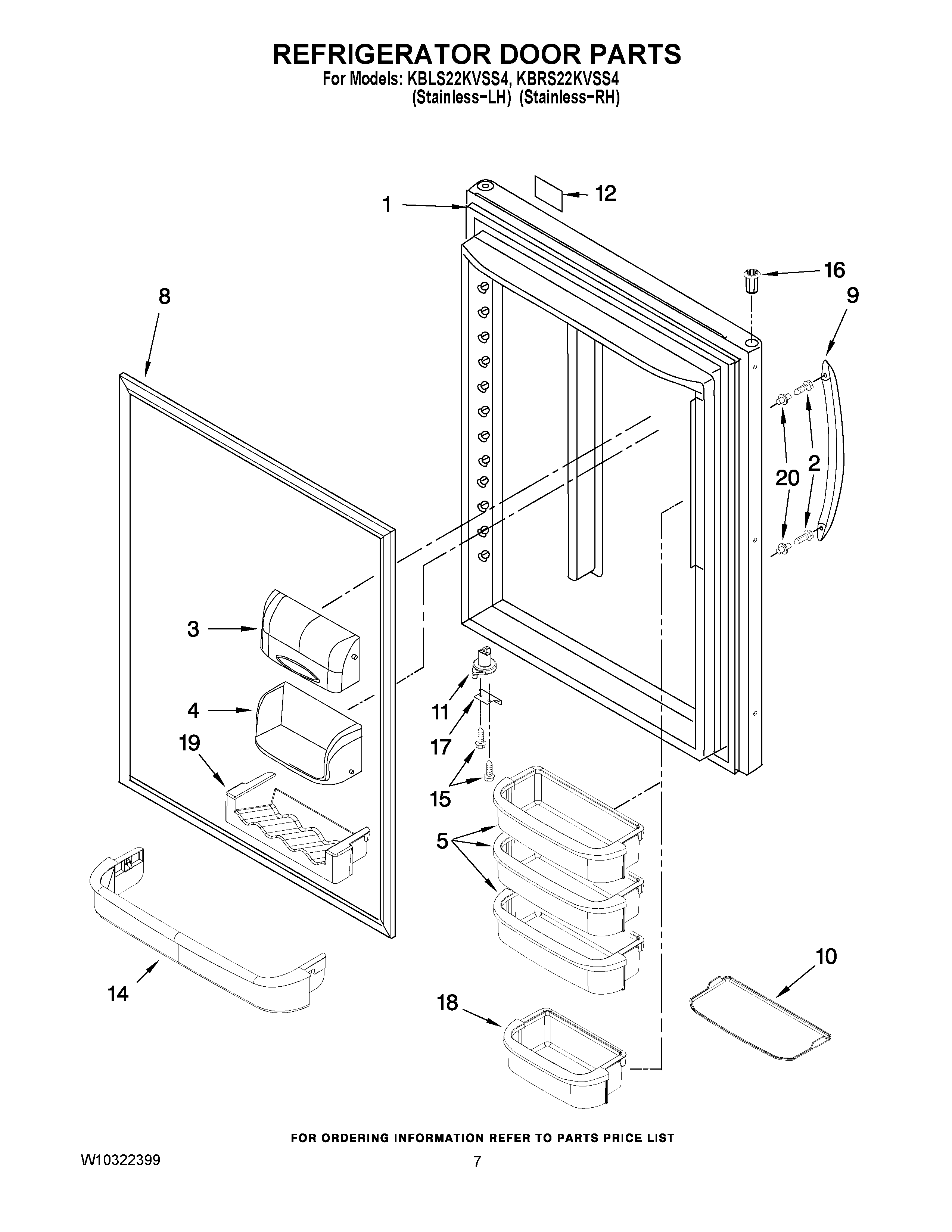

KBRS22KVSS4 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	13107547SQ Whirlpool FIP Stainless Steel Door
1	13107545SQ Whirlpool Refrigerator DOR-FIP SS
2	SCREW
3	WP67003637 Whirlpool Dairy Door
4	WP67001279 Whirlpool Refrigerator Dairy Tray
5	WPW10371195 Whirlpool Refrigerator Cantilever Bin
8	WPW10436248 Whirlpool Door Gasket
9	WPW10314517K Whirlpool Refrigerator Handle
10	WPW10450021 Whirlpool Refrigerator Mat
11	WP67003639 Whirlpool Refrigerator Closer
12	NAMEPLATE
14	Retainer, Door
15	WP98165 Whirlpool Screw
16	67004978 Whirlpool Refrigerator Black Door Bushing
17	W11708403 Whirlpool Door Stop
18	Bucket, Short
19	WP67005626 Whirlpool Refrigerator Can Caddy
20	WP67006113 Whirlpool Stud Bolt
