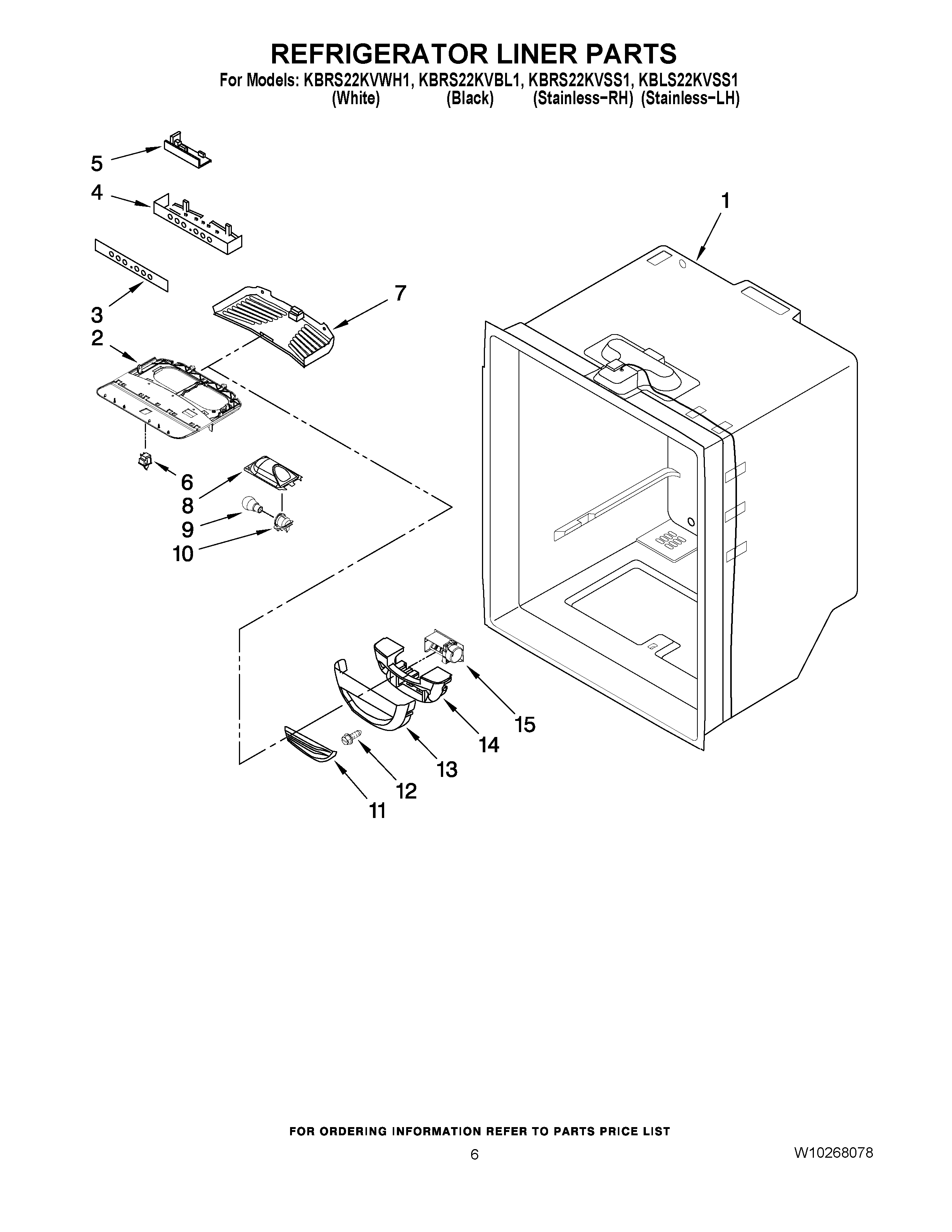

KBRS22KVWH1 04 – REFRIGERATOR LINER PARTS

Products

PositionProduct
NIHARNESS, CONTROL (REFRIGERATOR) (INCLUDES THERMISTOR)
1Liner (Not A Serviceable Part)
2BRACKET, CONTROL AND LIGHTS
3OVERLAY
4W11416469 Whirlpool Refrigerator Housing
5WPW10319823-includeCORE Whirlpool WPW10319823 Refrigerator Electronic Control Board + Core
6W11384469 Whirlpool Door Switch
7W11284721 Whirlpool Refrigerator Cover
812806601 Whirlpool Refrigerator Light Housing
9W11679940 Whirlpool Refrigerator Light Bulb Assembly
10W11447232 Whirlpool Refrigerator Socket
1167003900 Whirlpool Refrigerator Insert Damper Cover
12WP400021-1 Whirlpool Screw
13WP12806701 Whirlpool Refrigerator Box Cover
14INSULATION
15CONTROL DAMPER
