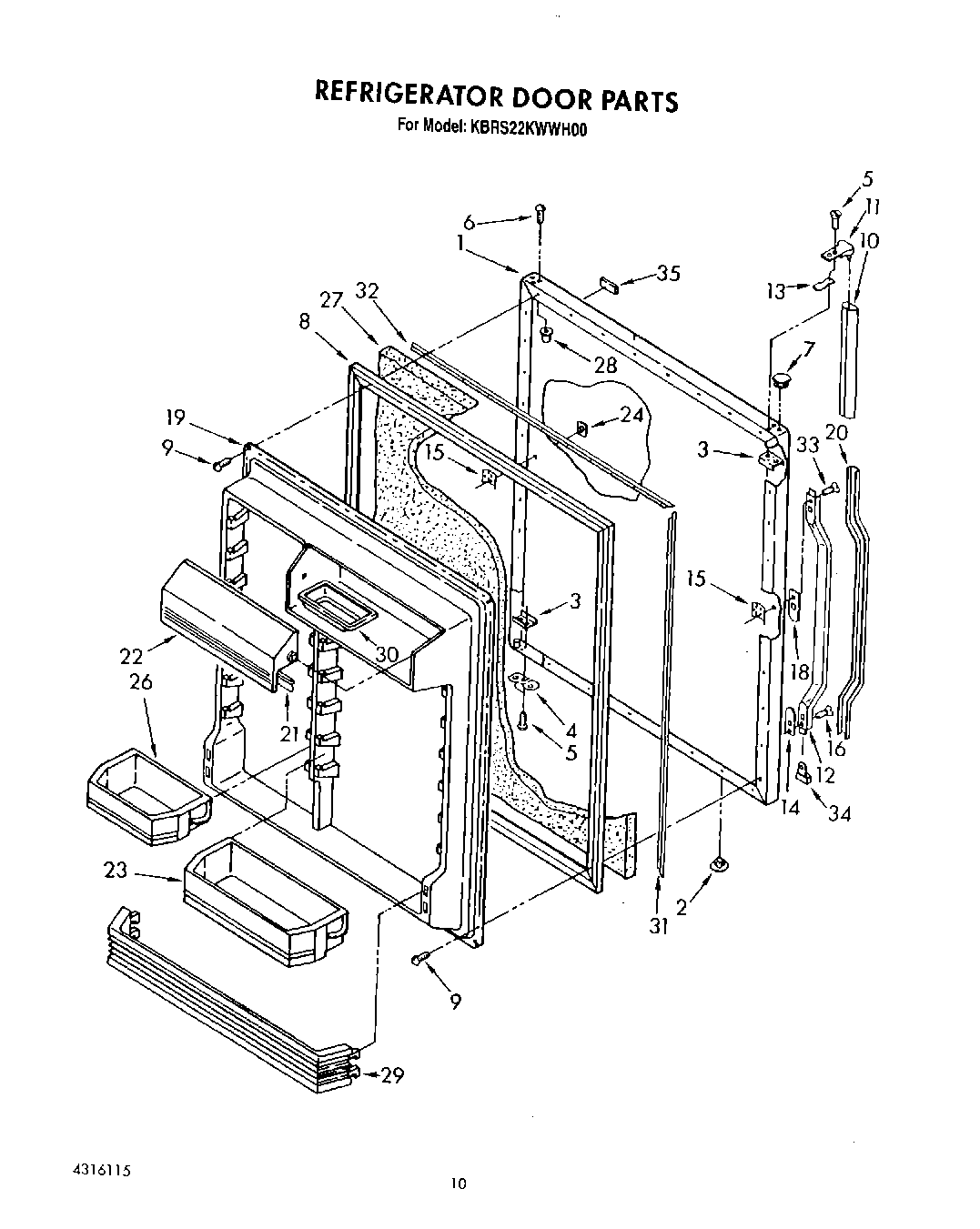

KBRS22KWAL00 07 – REFRIGERATOR DOOR

Products

Position	Product
1	Panel, Refrigerator Door (Almond (Also Order Item 27))
1	Panel, Refrigerator Door (White)
2	Hole Plug (2)
3	W10833053 Whirlpool Refrigerator Plate
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	WP8281206 Whirlpool Refrigerator Screw
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7	Hole Plug (Almond)
8	Door Gasket, Magnetic
9	WP489069 Whirlpool Compactor Screw
10	Retainer, Insert
11	Handle End
12	Handle
13	Shim, End Cap
14	Spacer, Handle
15	WP939101 Whirlpool Refrigerator Plate
16	WP488920 Whirlpool Refrigerator Screw
18	Spacer, Handle
19	Interior Door Panel
20	Insert, Handle (White)
20	Insert, Handle (Almond)
21	Gasket, Utility Door
22	Compartment Door,
23	Bin, Door Shelf Deep. Wide
24	Hole Plug, Handle (White)
24	Hole Plug, Handle (Almond)
26	Bin, Door Shelf Narrow
27	WPL 876029
28	Cap, Hinge Sleeve (2)
29	Shelf Bin, Fixed
30	Butter, Tray
31	Retainer Gasket, Side (2)
32	Retainer, Gasket Top
34	End Cap
35	Trimless Glass (White)
35	Panel Trim Kit (Black)
35	Trimless Glass (Almond)
35	Trim Kit
35	Handle Insert (Woodgrain)
35	Handle Insert (Black)
35	Trimless Glass (Black)
35	Panel Trim Kit (Almond)
35	Nameplate (White Model)
35	Panel Trim Kit (White)
35	Handle Insert (Black Grill Kit)
