KBRS22KWAL03 05 – UNIT

KBRS22KWAL03 05 – UNIT

Written by

in

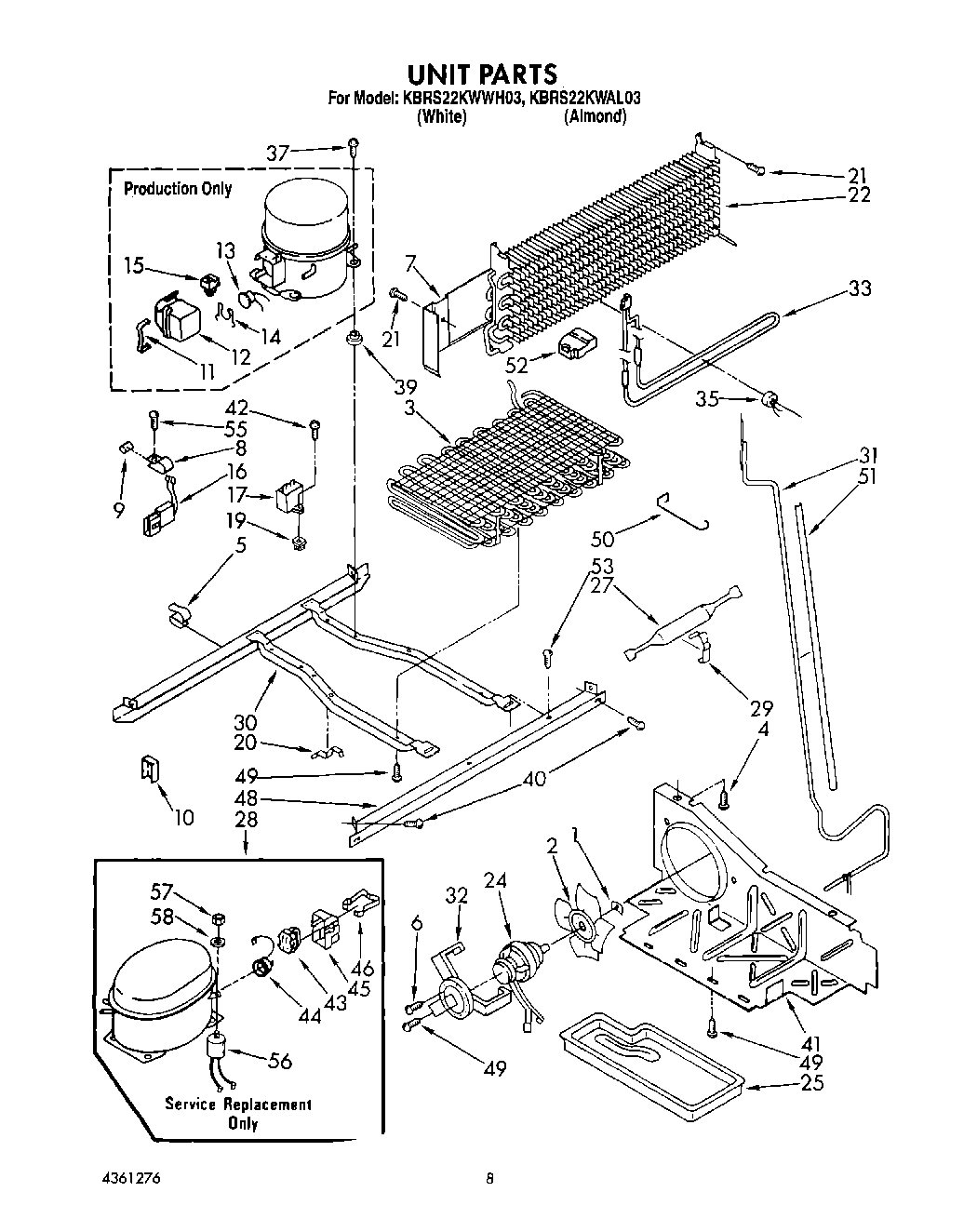

KBRS22KWAL03 05 – UNIT

Products

PositionProduct
1WP486692 Whirlpool Refrigerator Nut
2Fan, Blade
3Condenser Assembly
4Screw, 8-32 x 1/2
5Clip, Wire (2)
6681390 Whirlpool Refrigerator Screw
7Heat Shield Evaporator
8Clamp Tube
9Dampener (2)
10WP717253 Whirlpool Dishwasher Connector
11case spring
12Case, Relay
13Overload
14Spring, Overload
15Relay (Order Overload To Obtain Relay Key No. 13)
16Housing Plug
17WPW10662129 Whirlpool Refrigerator Run Capacitor
19Screw Grommet
20Clip (2)
21WP489069 Whirlpool Compactor Screw
22Evaporator
24833697 Whirlpool Condenser Fan Motor
25Tray, Evaporator
27W10843121 Whirlpool Refrigerator Tube
28Compressor (Includes Items 43, 44, 45, 46, 47, 56, 57 & 58) (Also Order)
28876765 Whirlpool Primary Mounting Kit Refrigerator
29Clamp, Dryer
302304903 Whirlpool Refrigerator Frame
31Exchanger, Heat
32Bracket, Motor
33Heater, Defrost
35WP2182381 Whirlpool Refrigerator Bimetallic Defrost
39876811 Whirlpool Grommet
40489340 Whirlpool Refrigerator Screw
41Fan, Motor Bracket
42W11693756 Whirlpool Screw Assembly
43WP2262181 Whirlpool Refrigerator Start Relay
44WP2154697 Whirlpool Refrigerator Overload
45Cover
46Strap
48Unit Mounting Rail
49Screw, 8 x 3/8
50Guard, Fan
51WP2002171 Whirlpool Refrigerator Sleeve
52Support
53WP489427 Whirlpool Refrigerator Screw
55WPW10141625 Whirlpool Refrigerator Screw Assembly
57Nut
58978026 Whirlpool Refrigerator Primary Valve
58VALVE, ACCESS (1/2“)
58VALVE, ACCESS (5/8“)
58WP978025 Whirlpool Refrigerator Valve
58978030 Whirlpool Refrigerator Valve
58978027 Whirlpool Refrigerator Primary Valve
58876764 Whirlpool Refrigerator Primary Valve
58Washer
