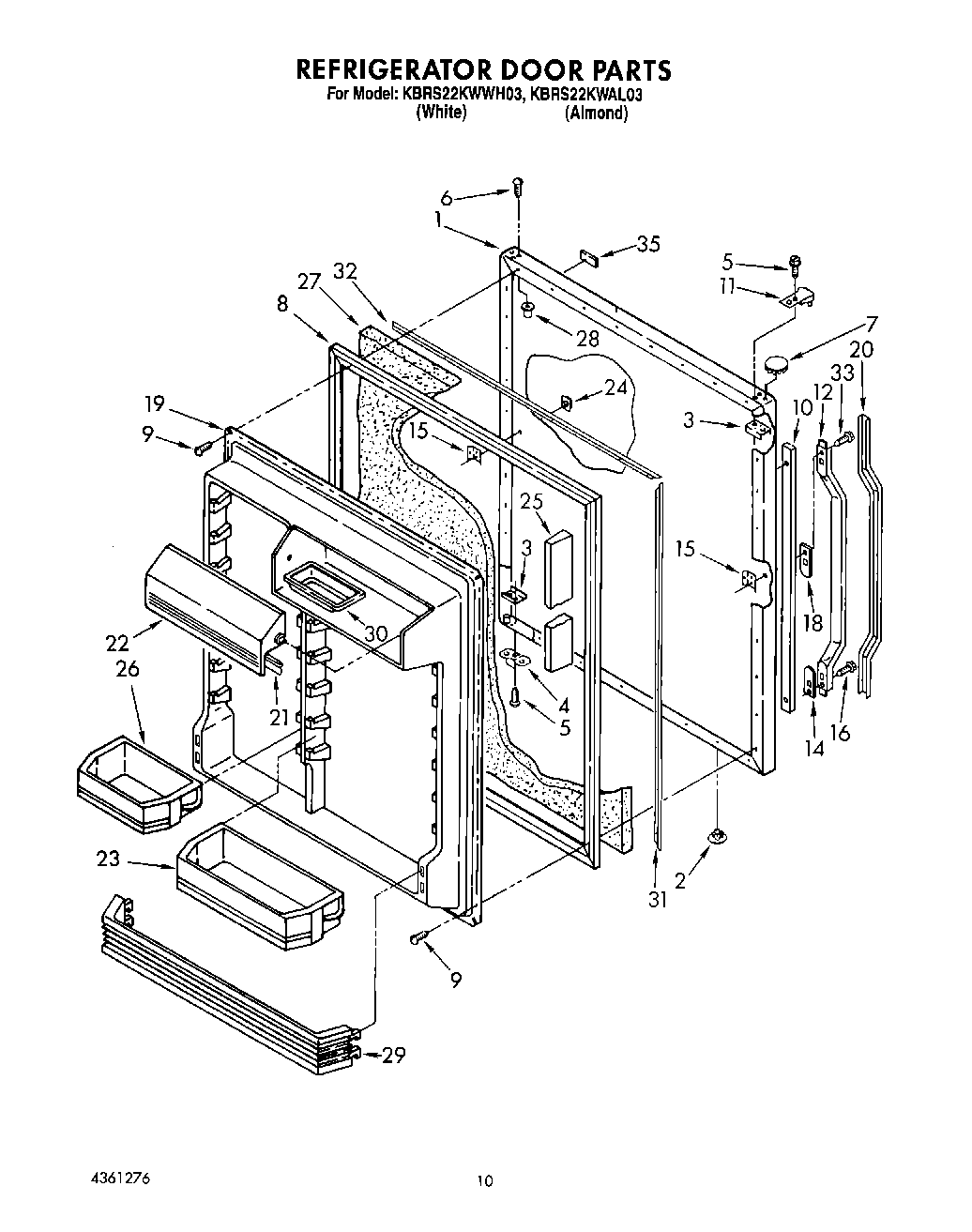

KBRS22KWAL03 06 – REFRIGERATOR DOOR

Products

Position	Product
1	Door, Refrigerator (Also Order Item 31) (Almond)
1	Door, Refrigerator (Also Order Item 31) (White)
2	Hole Plug (2)
3	W10833053 Whirlpool Refrigerator Plate
4	Bracket, Door Stop
5	WP488921 Whirlpool Refrigerator Screw
6	WP8281206 Whirlpool Refrigerator Screw
7	WP2212648 Whirlpool Refrigerator Hinge Sleeve Hole Plug
7	Hole Plug (Almond)
8	Door Gasket, Magnetic
9	WP489069 Whirlpool Compactor Screw
10	Retainer, Insert
11	Handle End
12	Handle, Door & Bottom End Cap Assembly
14	Spacer, Handle
15	WP939101 Whirlpool Refrigerator Plate
16	WP488920 Whirlpool Refrigerator Screw
18	Spacer, Handle
19	Interior Door Panel
20	Insert, Handle (Almond)
20	Insert, Handle (White)
21	Gasket, Utility Door
22	Compartment Door,
23	Bin, Door Shelf Deep. Wide
24	WP2189000 Whirlpool Refrigerator Handle Plug
24	Hole Plug, Handle (Almond)
25	WPL 1126161
26	Bin, Door Shelf Narrow
27	WPL 876029
28	Cap, Hinge Sleeve (2)
29	Shelf Bin, Fixed
30	Butter, Tray
31	Retainer Gasket, Side (2)
32	Retainer, Gasket Top
33	WP488163 Whirlpool Refrigerator Screw
35	Nameplate (Almond)
35	Nameplate (White Model)
