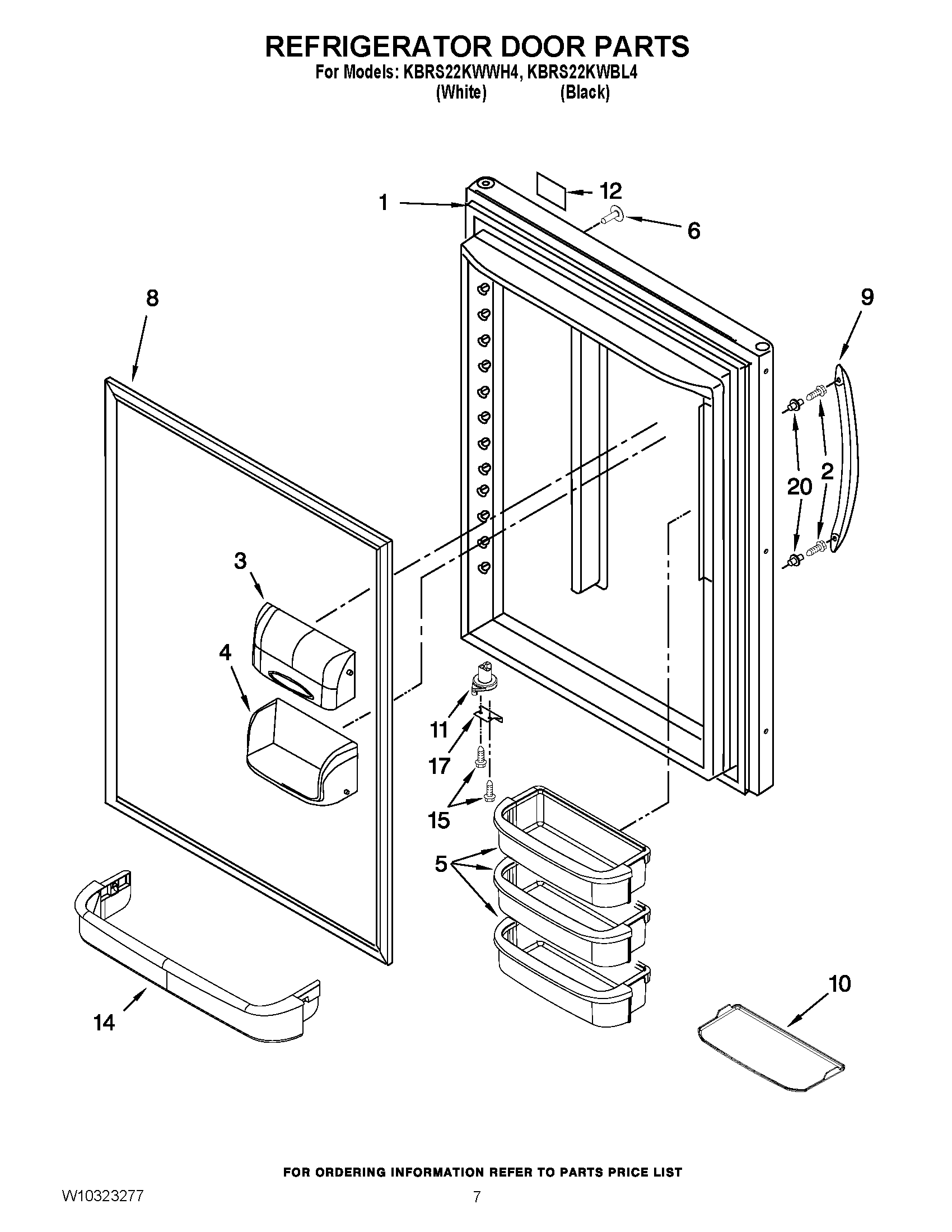

KBRS22KWBL4 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	DOOR, REFRIGERATOR (BLACK)
1	12658572WQ Whirlpool Refrigerator DOR-FIP White
2	SCREW
3	WP67003637 Whirlpool Dairy Door
4	WP67001279 Whirlpool Refrigerator Dairy Tray
5	WPW10119841 Whirlpool Cantilever Bin
6	WP67001130 Whirlpool Refrigerator White Button Plug
6	WP12246608 Whirlpool Refrigerator Button
8	WPW10436248 Whirlpool Door Gasket
8	W10443313 Whirlpool Door Gasket
9	WPW10314515 Whirlpool Refrigerator Handle
9	HANDLE, DOOR (BLACK)
10	W11510593 Whirlpool Refrigerator Mat
11	WP67003638 Whirlpool Closing Cam
11	WP67003639 Whirlpool Refrigerator Closer
12	WPW10243392 Whirlpool Dishwasher Nameplate
12	WPW10243393 Whirlpool Dishwasher Nameplate
12	NAMEPLATE
14	67001019 Whirlpool Door Shelf Trim
15	WP98165 Whirlpool Screw
17	12968202W Whirlpool Refrigerator Door Stop
17	W11708403 Whirlpool Door Stop
20	WP67006113 Whirlpool Stud Bolt
