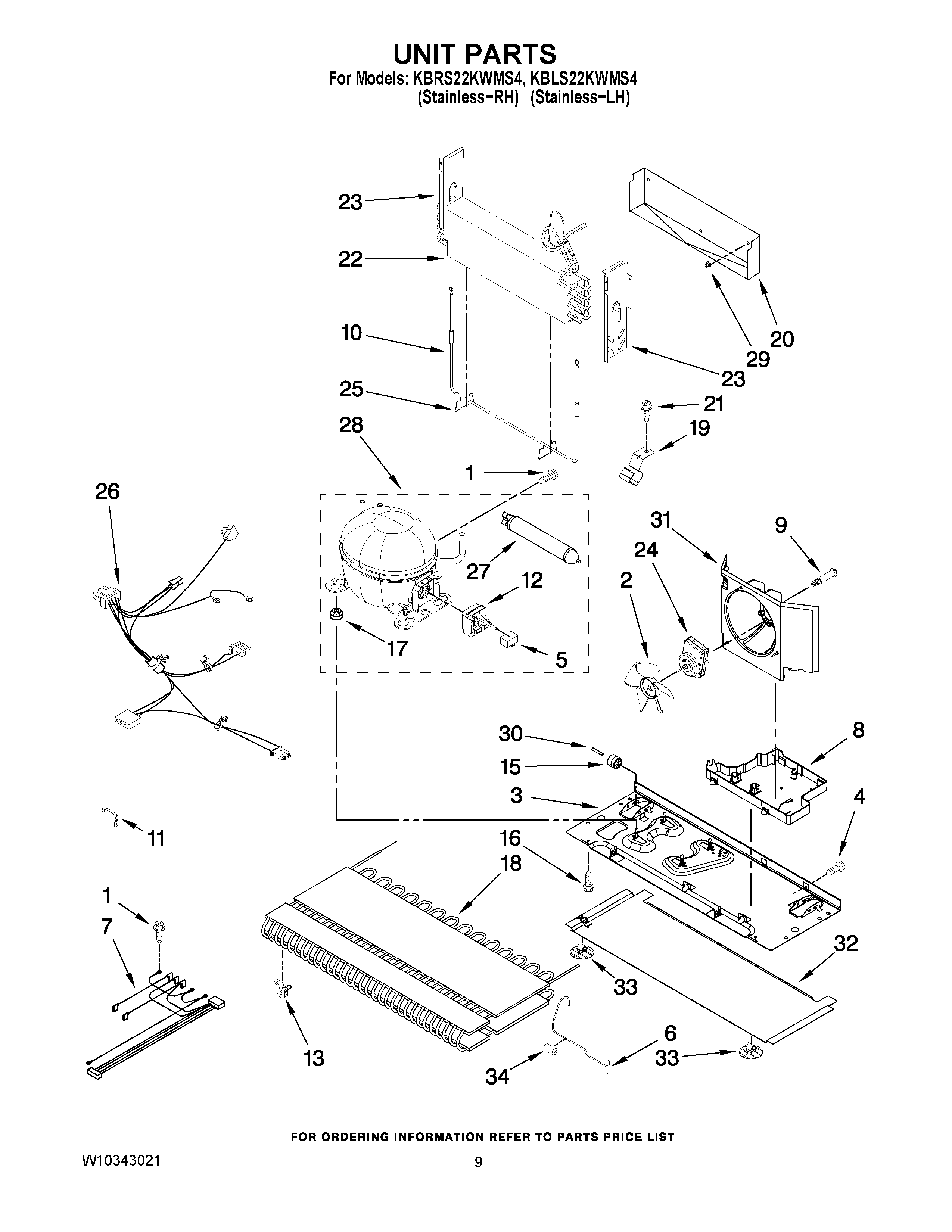

KBRS22KWMS4 06 – UNIT PARTS

Products

Position	Product
NI	978030 Whirlpool Refrigerator Valve
NI	VALVE, ACCESS (5/8“)
NI	876764 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	CABINET (NOT A SERVICEABLE PART)
NI	WP978025 Whirlpool Refrigerator Valve
NI	VALVE, ACCESS (1/2“)
1	12992301 Whirlpool Refrigerator Screw
2	WP12825803 Whirlpool Refrigerator Fan Blade
3	W10480110 Whirlpool Refrigerator Plate
4	67006425 Whirlpool Refrigerator Screw
5	WPW10662129 Whirlpool Refrigerator Run Capacitor
6	TUBE, DISCHARGE
7	W11260592 Whirlpool Refrigerator Wire Harness
8	WPW10655367 Whirlpool Refrigerator Drip Pan
9	W10829281 Whirlpool Refrigerator Screw
10	HEATER
11	W11661170 Whirlpool Clip
12	WPW10197426 Whirlpool Refrigerator Start Device
13	WPW10137529 Whirlpool Refrigerator Grommet
15	WP67005149 Whirlpool Roller
16	Screw
17	WPW10169124 Whirlpool Refrigerator Grommet
18	WPW10346420 Whirlpool Refrigerator Condenser
19	W10281329 Whirlpool Clamp
20	WPW10292802 Whirlpool Refrigerator Drip Tray
21	WP33001882 Whirlpool Screw
22	12001919 Whirlpool Refrigerator Evaporator Replacement Kit
23	Dam (Left Side)
23	Dam (Right Side)
24	W11613295 Whirlpool Condenser Motor
25	W11673433 Whirlpool Clip
26	WPW10234024 Whirlpool Refrigerator Wire Harness
27	WPW10143759 Whirlpool Dryer Filter
28	COMPRESSOR (INCLUDES ITEMS 11,12,17,27)
29	CLIP, EVAP (2)
30	67006434 Whirlpool Axle Pin
31	W11556315 Whirlpool Shroud
32	EXTENSION, BASEPAN
33	W10206339 Whirlpool Fastener
34	W10852725 Whirlpool Refrigerator Grommet
