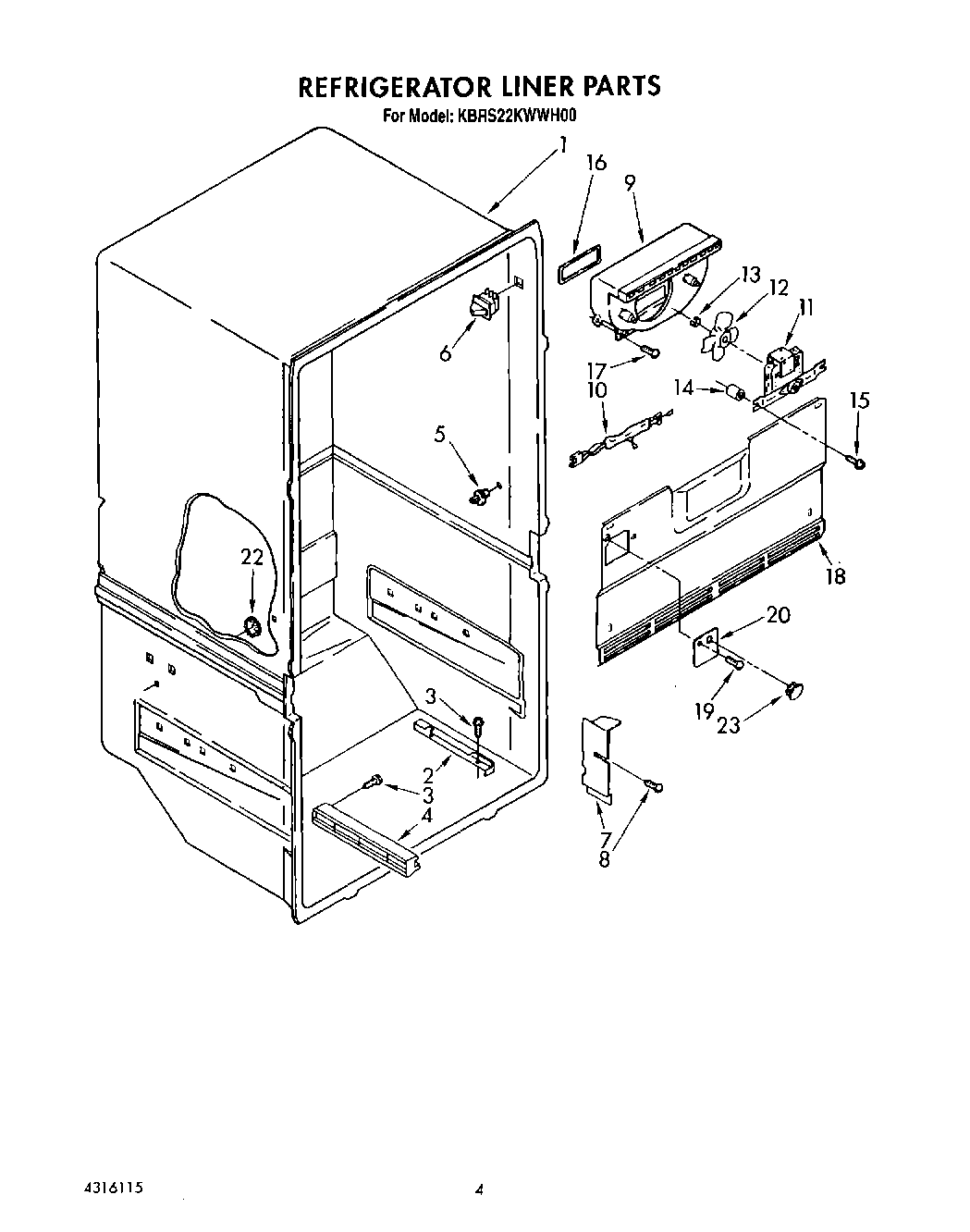

KBRS22KWWH00 03 – REFRIGERATOR LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Slide, Basket (Left Side)
2	Slide, Basket (R.S)
3	W11693756 Whirlpool Screw Assembly
4	Shelf Track, (Left Side)
4	Shelf Track, (Right Side)
5	W10854959 Whirlpool Refrigerator Shelf Stud
6	W11384469 Whirlpool Door Switch
7	Electrical Shield Extension
8	WP489128 Whirlpool Refrigerator Screw
9	Scroll, Fan
10	Wiring Assembly, Fan Motor
11	Fan Motor
12	Blade, Fan
13	Ring, Compression
14	Fan Grommet (2)
15	Screw (2)
16	Gasket, Fan Scroll
17	WP489478 Whirlpool Refrigerator Screw
18	Cover, Evaporator
19	WP488729 Whirlpool Refrigerator Door Screw
20	WP2217784 Whirlpool Refrigerator Cover
22	WP941839 Whirlpool Refrigerator Button Plug
23	Hole Plug
