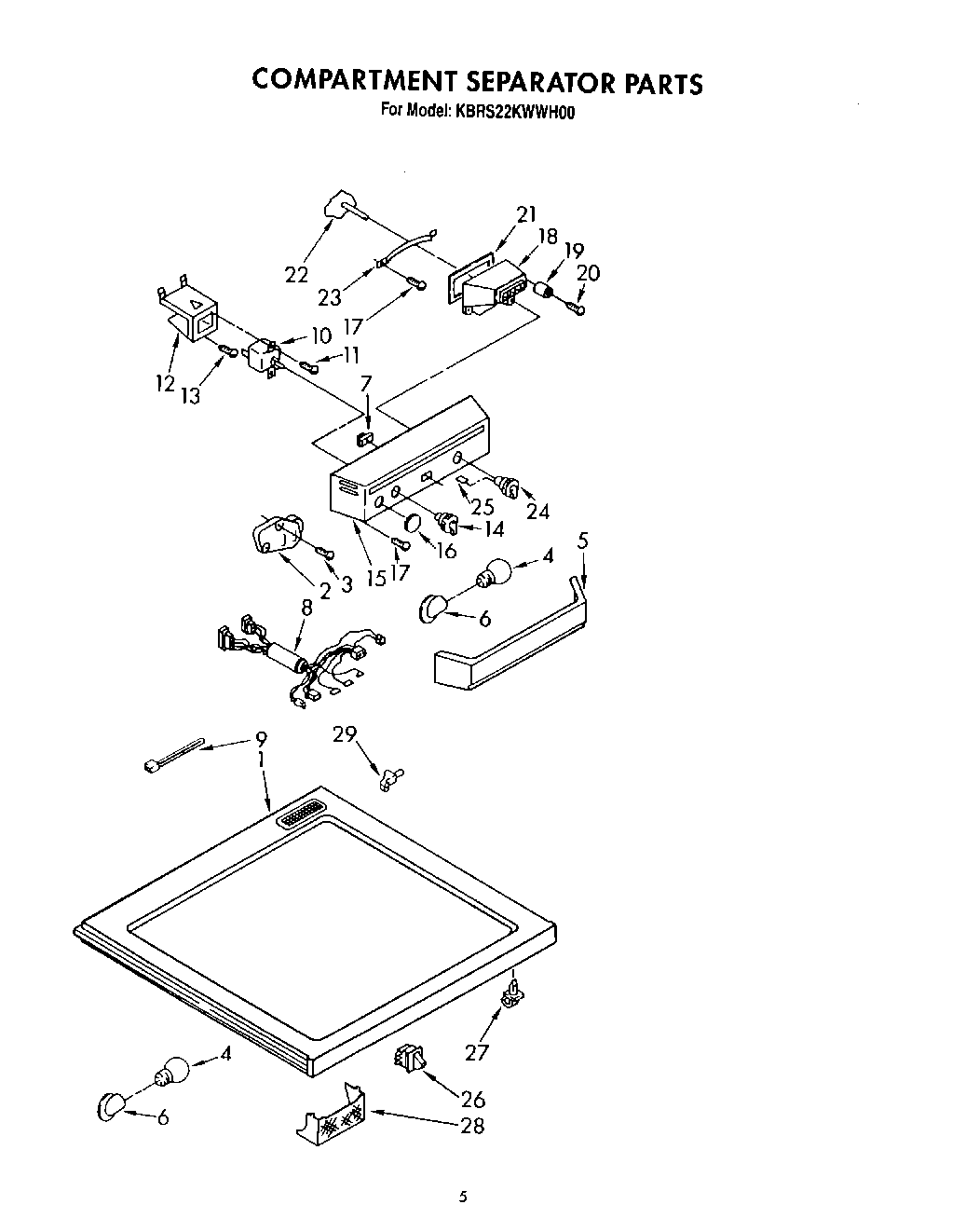

KBRS22KWWH00 04 – COMPARTMENT SEPARATORadmin2025-04-26T12:26:45+00:00KBRS22KWWH00 04 – COMPARTMENT SEPARATOR
Products
| Position | Product |
|---|
| 1 | Separator Top-Front |
| 1 | Compartment Separator Assembly (Includes Center Rail and Heater Assembly) |
| 2 | Defrost Timer |
| 3 | Screw, 8 x 3/8 (2) |
| 4 | W11679940 Whirlpool Refrigerator Light Bulb Assembly |
| 5 | Light Lens |
| 6 | 4387478 Whirlpool Refrigerator Light Socket |
| 7 | WP938213 Whirlpool Refrigerator Power Switch |
| 8 | Wiring Assembly, Control Box |
| 9 | Cable Tie |
| 10 | WP819470 Whirlpool Refrigerator Thermostat |
| 11 | WP965173 Whirlpool Dishwasher Screw |
| 12 | Bracket, Thermostat |
| 13 | WP489128 Whirlpool Refrigerator Screw |
| 14 | Knob, Air Diffuser (Includes Item 25) |
| 15 | Control Panel |
| 16 | 940014 Whirlpool Refrigerator Primary Button Plug |
| 17 | WP489478 Whirlpool Refrigerator Screw |
| 18 | Diffuser Assembly, Air |
| 19 | 836667 Whirlpool Refrigerator Spacer |
| 20 | Screw, 8 x 1-1/4 (3) |
| 21 | Gasket |
| 22 | Damper, Air |
| 23 | Retrainer, Air Dampener |
| 24 | Control Knob |
| 25 | Knob, Retainer |
| 26 | W11457217 Whirlpool Refrigerator Rocker Switch Combination |
| 27 | Stud-Hook |
| 28 | Lens, Dispenser Light |
| 29 | 4388405 Whirlpool Refrigerator Shelf Stud |
