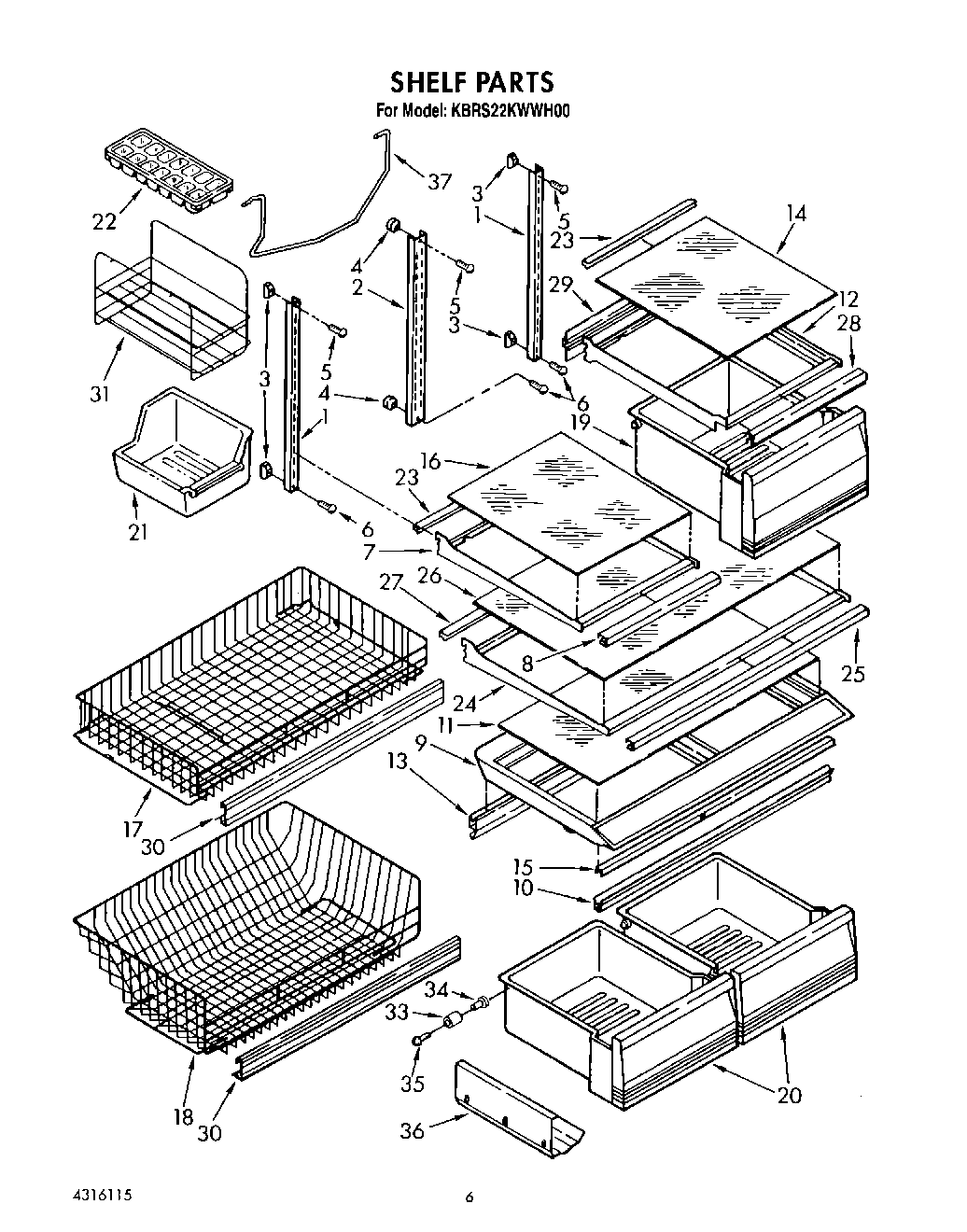

KBRS22KWWH00 05 – SHELF, LIT/OPTIONAL

KBRS22KWWH00 05 – SHELF, LIT/OPTIONAL

Written by

in

KBRS22KWWH00 05 – SHELF, LIT/OPTIONAL

Products

PositionProduct
WPL LIT2149912
WPL LIT1125910
WPL LIT1125641
Torx Key
WPL LIT4316115
1129316 Whirlpool Refrigerator Ice Maker Kit Square Plug
WPL LIT628107
1Shelf, Ladder (2)
2Shelf, Ladder Center
3520965 Whirlpool Refrigerator Support
4Screw Support, Center Ladder (2)
5Screw (3)
6WP488163 Whirlpool Refrigerator Screw
7Shelf, Cantilever (2)
8Gasket (Front)
9Pan Cover Assembly
10WP1125528 Whirlpool Refrigerator Gasket
11Glass, Crisper Cover
12Pan Shelf, Cantilever
13Gasket, Pan Cover-Rear
14Glass, Shelf
15WP2172748 Whirlpool Drawer Support
16Glass, Shelf
17Basket-Freezer
18Basket-Freezer
19Pan, Meat
20Pan, Crisper
21Ice Cube Pan
22WP841180A Whirlpool Microwave Glass Turntable Tray
23Retainer, Glass
24Shelf, Full
25Gasket, Front Cantilever
26Glass, Full Shelf
27Retainer, Shelf
28Gasket, Front
29Gasket, Rear
30Trim, Basket
31Shelf, Ice Tray
33Roller
34Eyelet, Roller
35WP489261 Whirlpool Refrigerator Screw
36Wine & Egg Rack
37511873 Whirlpool Refrigerator Paint
37350942 Whirlpool Spray Paint
37212643 Whirlpool Refrigerator Permagum Sealer
37350930 Whirlpool White Spray Paint
37Almond (Uncut)
37Leveler (Thinner)
37WP72107 Whirlpool Touchup
37799344 Whirlpool Refrigerator Paint
3772017 Whirlpool Appliance Touch-Up Paint White
37350956 Whirlpool Spray Assembly
37606755 Whirlpool Refrigerator Bag
37833938 Whirlpool Refrigerator Terminal
37876370 Whirlpool Refrigerator Insulation
37285006 Whirlpool Spray
37Transformer (115-230 Volt)
3772032 Whirlpool Touch Up Paint Black
37WPL 876029
37WPL 799833
37Enamel, Black (1 Qt. Uncut)
37CEMENT, ALUMILASTIC (1 1/4 OZ.)
37TAPE, VINYL (3/4 X 108“)
37WP542638 Whirlpool Refrigerator Grease
37WP505587 Whirlpool Refrigerator Sealer
37WP503695 Whirlpool Refrigerator Sealer
37Icemaker Arm (When Ordering Field Installable Icemaker This Arm Must Be Used)
