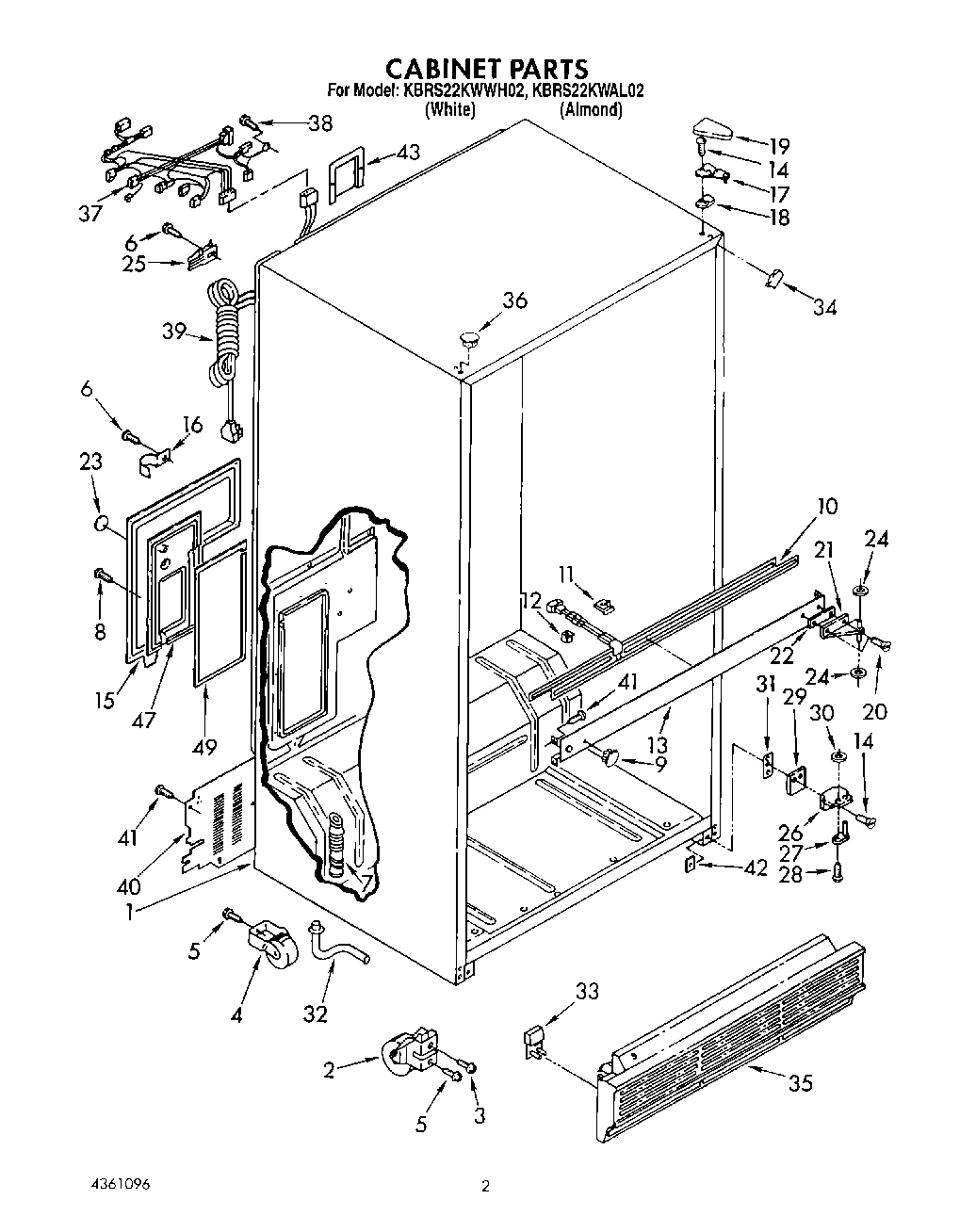

KBRS22KWWH02 02 – CABINET

Products

Position	Product
1	Cabinet (Not A Serviceable Part)
2	Front Roller (2)
4	WPW10250570 Whirlpool Refrigerator Cabinet Roller
5	Screw, 1/4-28 x 1/2 (2)
6	Screw
7	Fitting, Drain
8	WP489464 Whirlpool Refrigerator Screw
9	Hole Plug (6) (Almond)
9	WP2151652 Whirlpool Refrigerator Button Plug
10	Heater, Mullion
11	Clip, Mullion (3)
12	Spacer (3)
13	Center Rail (White)
13	Center Rail (Almond)
14	Screw
15	Cover, Flush
16	Tube Clamp (2)
17	Hinge, Top
18	Shim, Hinge Top
19	1119787 Whirlpool Refrigerator Hinge Cover
20	Screw
21	Hinge, Center
22	Shim, Hinge Center
22	Shim, Hinge Center
23	Hole Seal
24	WP488296 Whirlpool Washer Refrigerator
24	WP487802 Whirlpool Refrigerator Washer
25	549193 Whirlpool Refrigerator Power Clamp
26	Hinge Butt, Bottom
27	Hinge Pin, Bottom
28	Screw 10-32 x 5/16
29	Shim, Bottom Hinge
31	Spacer, Hinge
32	Extension, Drain Tube
33	Corner Filler, Grille (White)
34	Filler, Wrapper (Almond)
34	Filler, Wrapper (White)
35	Grille (White)
35	Grille (Almond)
36	Hole Plug (4) (White)
36	Hole Plug (4) (Almond)
37	Cabinet Wiring Assembly
38	WP250830 Whirlpool Refrigerator Screw
39	Cord, Service
40	Cover, Unit
42	Tap Plate (2)
43	Cover, Wiring
47	Plug Cover
49	Sealing Gasket
