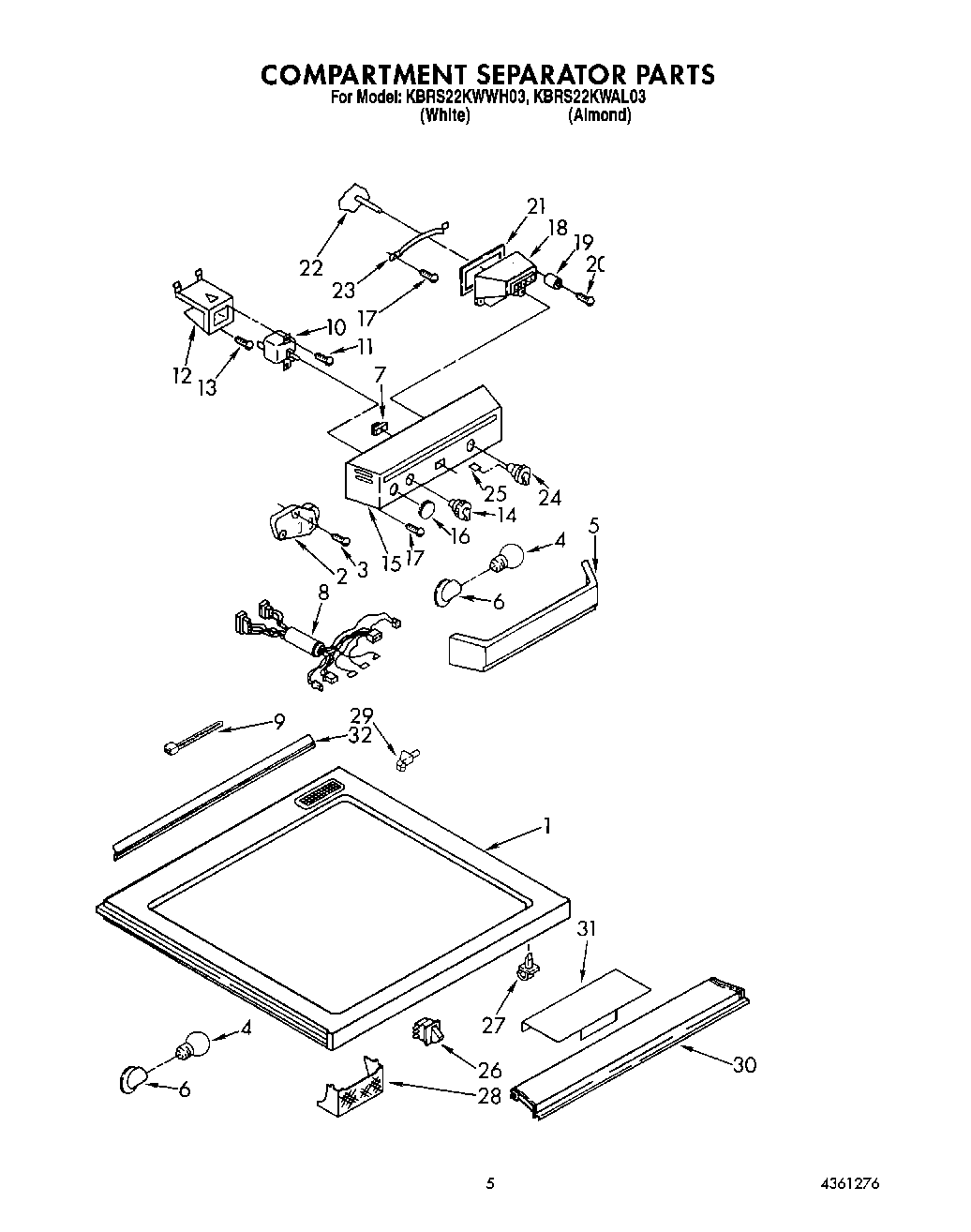

KBRS22KWWH03 03 – COMPARTMENT SEPARATOR

Products

Position	Product
1	Compartment (Almond Separator Assembly (Includes Center Rail and Heater Assembly))
1	Compartment Separator Assembly (Includes Center Rail and Heater Assembly)
2	Defrost Timer
3	WP488163 Whirlpool Refrigerator Screw
4	W11679940 Whirlpool Refrigerator Light Bulb Assembly
5	Light Lens
6	4387478 Whirlpool Refrigerator Light Socket
7	WP938213 Whirlpool Refrigerator Power Switch
8	Wiring Assembly, Control Box
9	Cable Tie
10	WP819470 Whirlpool Refrigerator Thermostat
11	WP965173 Whirlpool Dishwasher Screw
12	Bracket, Thermostat
13	WP489069 Whirlpool Compactor Screw
14	Knob, Air Diffuser (Includes Item 25)
15	Control Panel
16	940014 Whirlpool Refrigerator Primary Button Plug
17	WP489478 Whirlpool Refrigerator Screw
18	Diffuser Assembly, Air
19	836667 Whirlpool Refrigerator Spacer
20	Screw, 8 x 1-1/4 (3)
21	Gasket
22	Damper, Air
23	Retrainer, Air Dampener
24	Control Knob
25	Knob, Retainer
26	W11457217 Whirlpool Refrigerator Rocker Switch Combination
27	Stud
28	Lens, Dispenser Light
29	Stud, Support (2)
30	Separator Top-Front
31	Lens-Light
32	Gasket, Comp. Sep.
