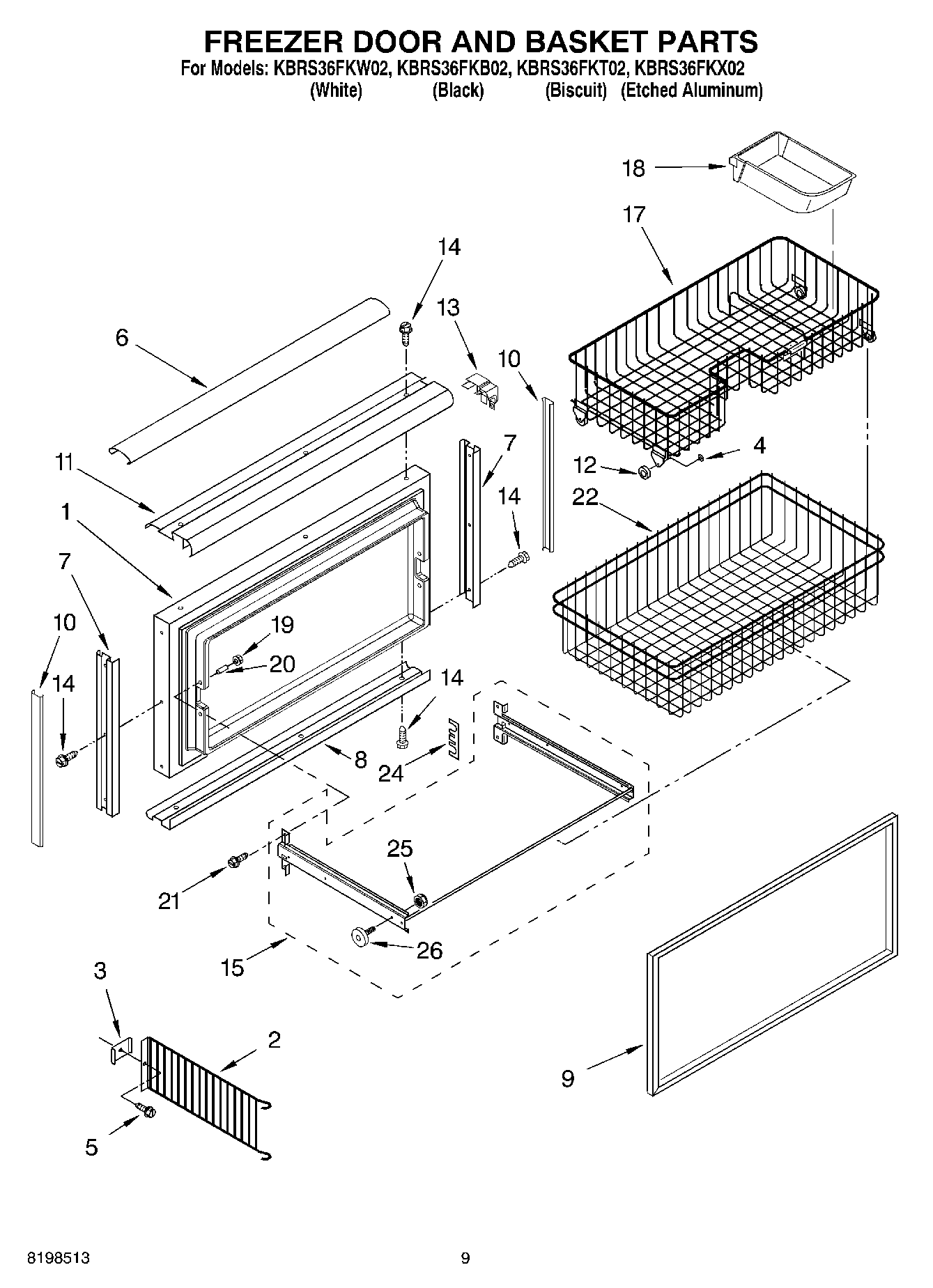

KBRS36FKB02 06 – FREEZER DOOR AND BASKET PARTS

Products

Position	Product
1	Freezer Door Panel (Includes Item 9)
2	Divider, Basket
3	Clamp, Divider
5	WPW10141625 Whirlpool Refrigerator Screw Assembly
6	Trim Cover, Handle (Etched Aluminum)
6	Cover-Trim, Handle (Biscuit)
6	Cover-Trim, Handle (White)
6	Trim Cover, Handle (Black)
7	Door Trim, Side (Etched Aluminum)
7	Trim-Door, Side (White)
7	Trim-Door, Side (Biscuit)
7	Door Trim, Side (Black)
8	Door Trim, Bottom (Etched Aluminum)
8	Door Trim, Bottom (Black)
8	Trim-Door, Bottom (Biscuit)
8	Trim-Door, Bottom (White)
9	Door Gasket, Magnetic
10	Cover-Trim, Side (Biscuit)
10	Cover-Trim, Side (White)
10	Trim Cover, Side (Etched Aluminum)
10	Trim Cover, Side (Black)
11	Handle, Door (White)
11	Handle, Door (Biscuit)
11	Handle, Door (Black)
11	Handle, Door (Etched Aluminum)
12	W11214482 Whirlpool Refrigerator Roller
13	Corner Trim (Biscuit)
13	Corner Trim (White)
13	2207457 Whirlpool Refrigerator Door Trim
13	Corner Trim (Black)
14	W10851443 Whirlpool Refrigerator Screw
14	Screw 8-15 x 1/2 (White)
14	WP8281250 Whirlpool Refrigerator Screw
14	Screw 8-15 x 1/2 (Biscuit)
15	Bracket, Assembly Freezer Basket
17	Basket, Upper
18	Pan, Ice Cube
19	WP2207454 Whirlpool Refrigerator Nut
20	Bushing
21	Screw
22	Basket, Freezer Lower
24	Spacer
25	2207415 Whirlpool Refrigerator Nut
26	Roller
