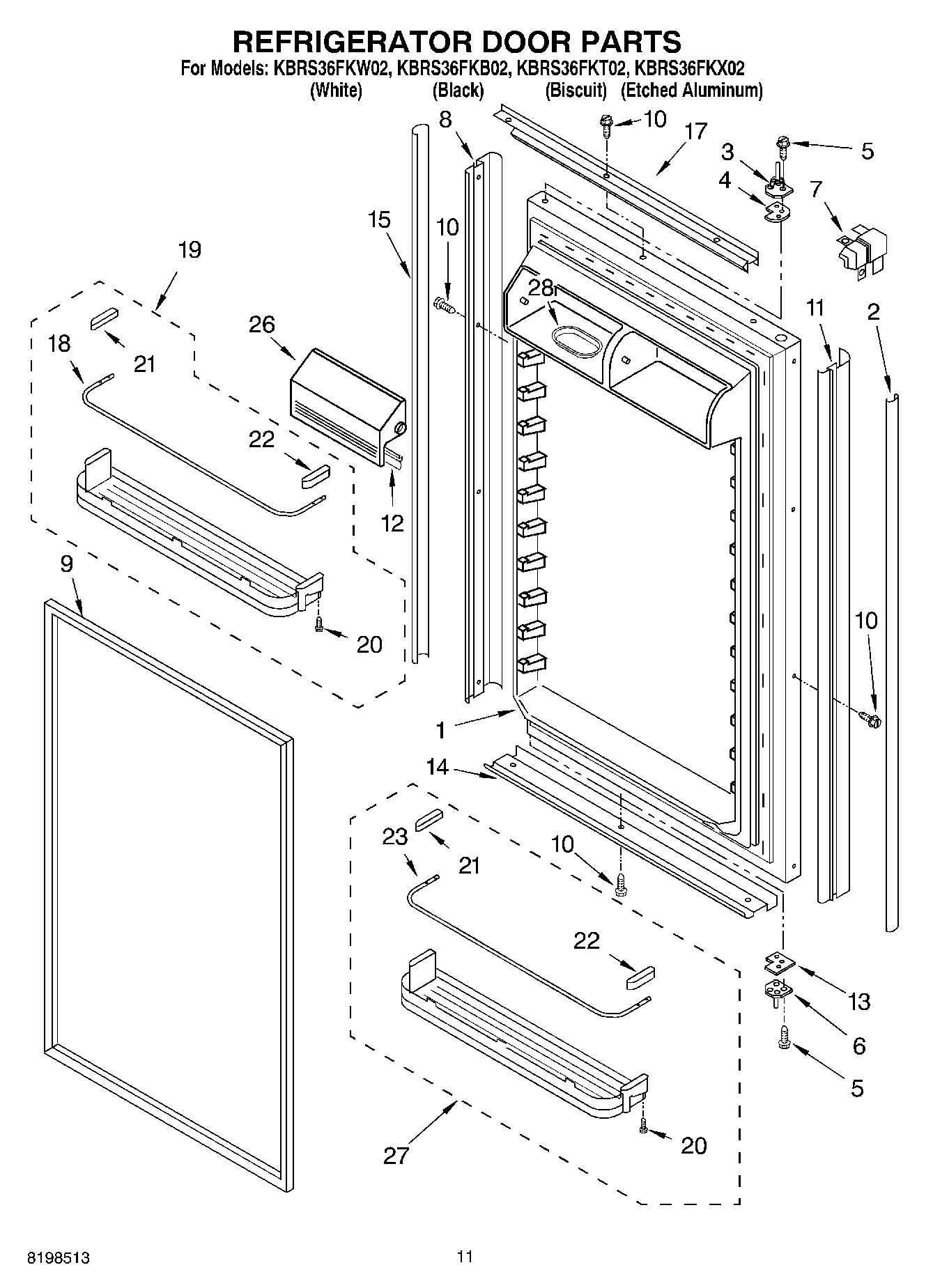

KBRS36FKW02 07 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Item 9)
2	Trim Cover, Handle (Etched Aluminum)
2	Cover-Trim, Handle (Biscuit)
2	Cover-Trim, Handle (White)
2	Trim Cover, Handle (Black)
3	Hinge Assembly, Top
4	Spacer-Hinge, Top
5	W11474472 Whirlpool Screw
6	Hinge Assembly, Bottom
7	2207457 Whirlpool Refrigerator Door Trim
7	Corner Trim (Black)
7	Corner Trim (Biscuit)
7	Corner Trim (White)
8	Trim-Door, Side (Biscuit)
8	Trim-Door, Side (Black)
8	Trim-Door, Side (Etched Aluminum)
8	Trim-Door, Side (White)
9	Door Gasket, Magnetic
10	Screw 8-15 x 1/2 (White)
10	Screw 8-15 x 1/2 (Biscuit)
10	W10851443 Whirlpool Refrigerator Screw
10	WP8281250 Whirlpool Refrigerator Screw
11	Handle, Door (White)
11	Handle, Door (Biscuit)
11	Handle, Door (Black)
11	Handle, Door (Etched Aluminum)
12	Gasket (2)
13	SPACER, HINGE (BOTTOM)
14	Trim-Door, Bottom (Biscuit)
14	Trim-Door, Bottom (Black)
14	Trim-Door, Bottom (Etched Aluminum)
14	Trim-Door, Bottom (White)
15	Cover-Trim, Side (Biscuit)
15	Cover-Trim, Side (White)
15	Trim Cover, Side (Etched Aluminum)
15	Trim Cover, Side (Black)
17	Trim-Door, Top (Black)
17	Trim-Door, Top (Biscuit)
17	Trim-Door, Top (Etched Aluminum)
17	Trim-Door, Top (White)
18	Tube, Door Shelf
19	Shelf, Door (2)
20	WP681249 Whirlpool Screw Assembly
21	End Cap, Left
22	End Cap, Right
23	Tube, Door Shelf (Gallon)
26	Door, Utility Bin (2) (Includes Item 12)
27	Door Shelf, Gallon
28	Butter Tray
