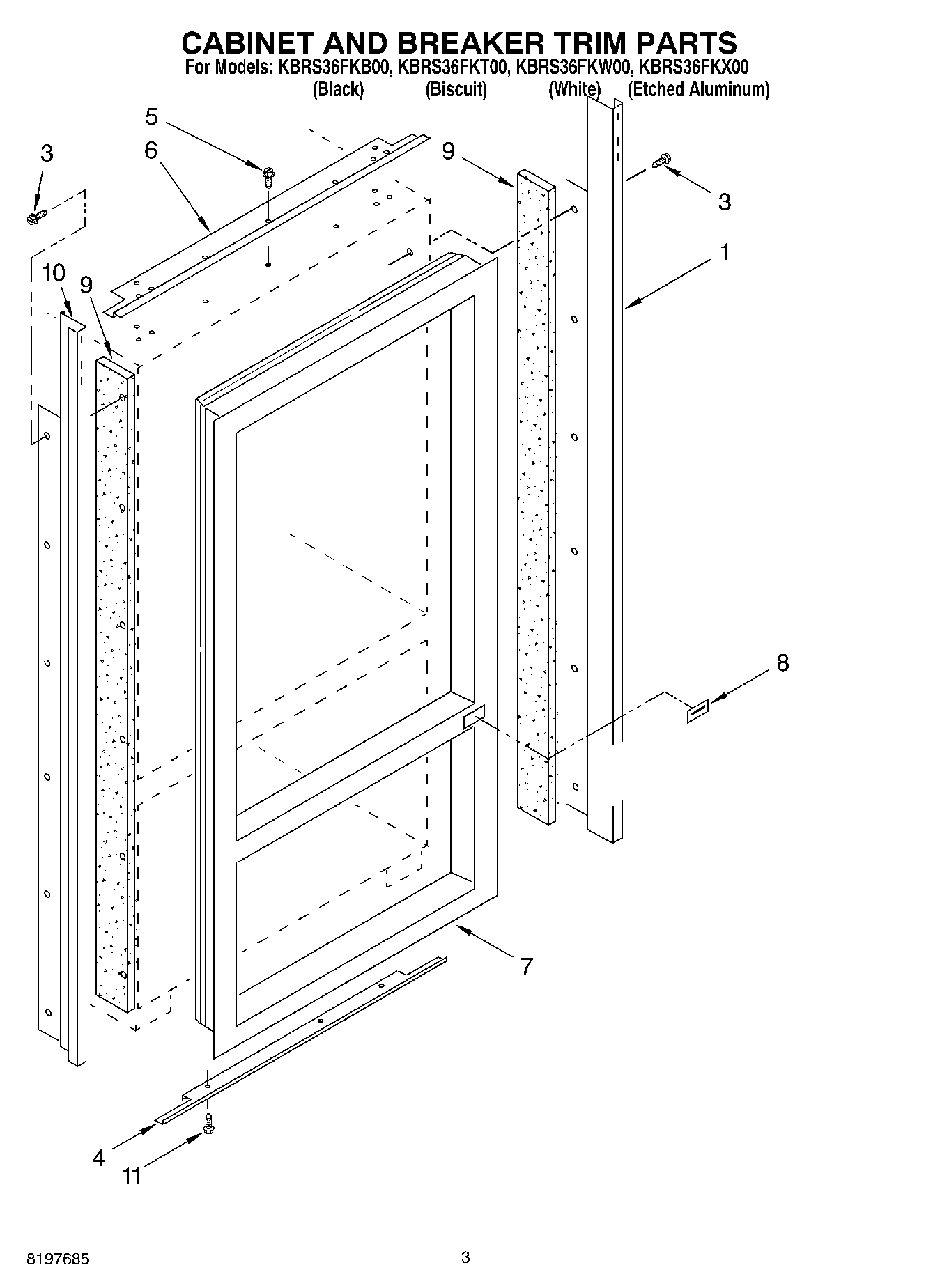

KBRS36FKX00 02 – CABINET AND BREAKER TRIM

Products

PositionProduct
1Cabinet, Trim Right Side (Etched Aluminum)
1Cabinet, Trim (Right Side) (White)
1Cabinet, Trim (Right Side) (Black)
1Cabinet, Trim (Right Side) (Biscuit)
3WP1163283 Whirlpool Air Conditioner Screw
4Cabinet, Trim (Bottom)
5W11624204 Whirlpool Screw
6Cabinet, Trim Top
7Breaker Trim (Not Serviced)
8Cover, Hinge
9Seal, Side Trim
10Cabinet Trim (Left Side) (Etched Aluminum)
10Cabinet Trim (Left Side) (Black)
10Cabinet Trim (Left Side) (Biscuit)
10Cabinet Trim (Left Side) (White)
11WP489464 Whirlpool Refrigerator Screw
