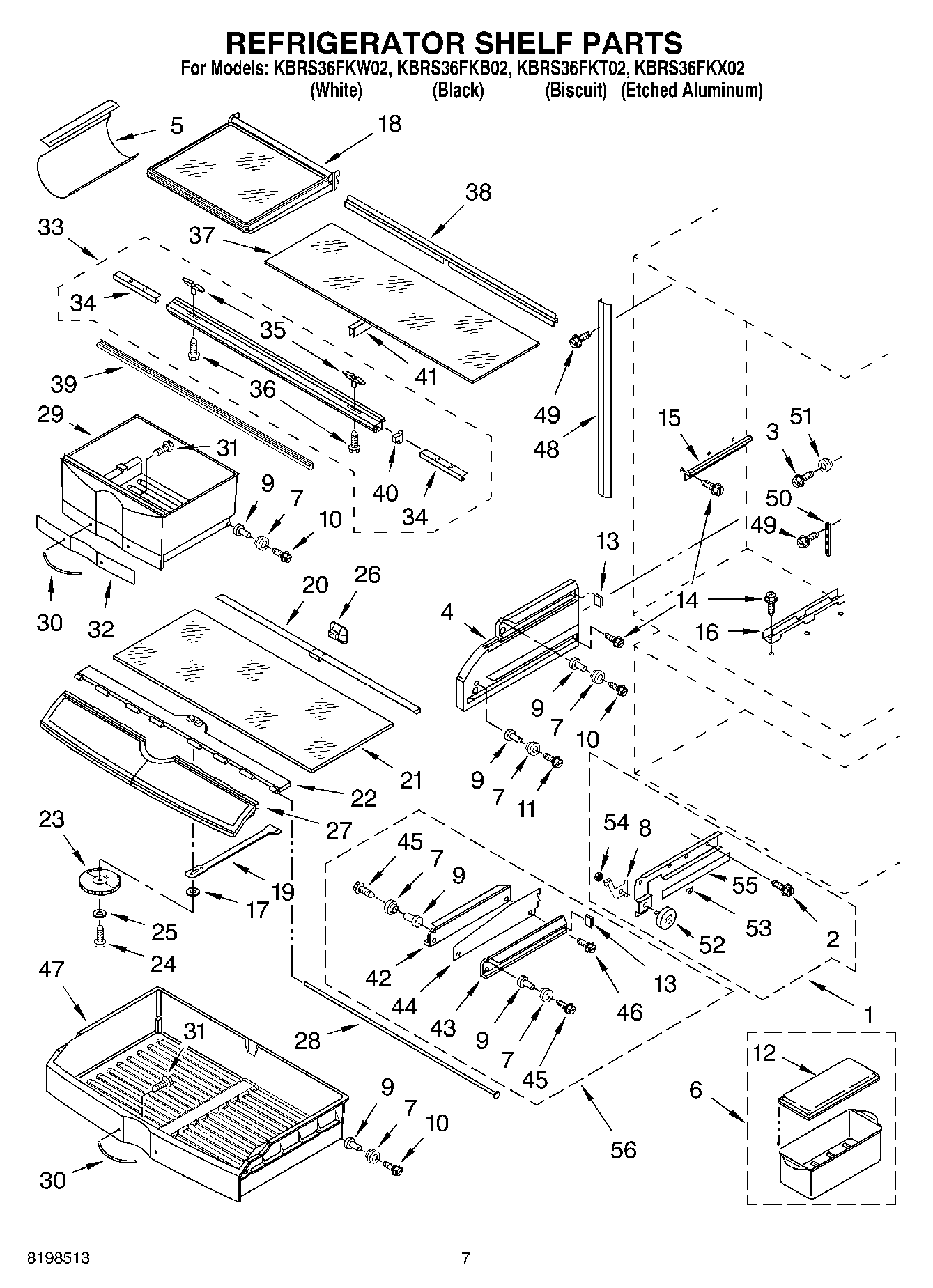

KBRS36FKX02 05 – REFRIGERATOR SHELF PARTS

Products

Position	Product
1	Slide, Freezer Basket (Right Side)
1	Slide, Freezer Basket (Left Side)
2	Screw, (3) No.8 x 1“
3	WP3400806 Whirlpool Screw
4	Spacer, Crisper (Right Side)
4	Spacer, Crisper (Left Side)
5	W10777924 Whirlpool Refrigerator Wine Rack
6	Egg Bin Assembly
7	WPL 2257609
8	Bracket, Spacer (Right)
8	Bracket, Spacer (Left)
9	Eyelet, Roller
11	WP489261 Whirlpool Refrigerator Screw
12	Cover
13	Roller Stop
14	W11624204 Whirlpool Screw
15	Support, Crisper Shelf (2)
16	Rail, Deli Center
17	WP489235 Whirlpool Refrigerator Washer
18	Shelf (4)
19	Air Damper, Deli
20	Rail-Rear, Deli
21	Glass Shelf, Deli
22	Rail-Front, Deli
23	Control Knob, Deli
25	Washer
26	Connector, Deli Pan
27	Lid, Deli Pan
28	Hinge Rod, Deli Pan
29	Cripser Pan
30	Handle, Crisper Pan
31	2006253 Whirlpool Refrigerator Screw
32	Overlay, Crisper Pan
33	Rail-Front, Crisper Shelf
34	Vent, Crisper Shelf
35	Slide-Humidity, Crisper Shelf
36	2006254 Whirlpool Refrigerator Screw
37	Glass, Crisper Shelf
38	Rail-Rear, Crisper Shelf
39	Seal-Front, Crisper Shelf
40	Insulation, Crisper Rail
41	Baffle-Center, Crisper Shelf
42	Center Support, Left Half
43	Center Support, Right Half
44	Bracket, Center Support
45	WPW10272364 Whirlpool Refrigerator Screw
46	WP3400065 Whirlpool Refrigerator Screw
47	Deli Pan
48	Ladder, Shelf (4)
49	2006475 Whirlpool Refrigerator Screw
50	Ladder, Crisper Support
51	WP2196483 Whirlpool Refrigerator Shelf Stud
52	WPL 2221260
53	WPL 2207522
54	2207415 Whirlpool Refrigerator Nut
55	WPL 2207569
56	Support Assembly, Center-Crspr Pan
