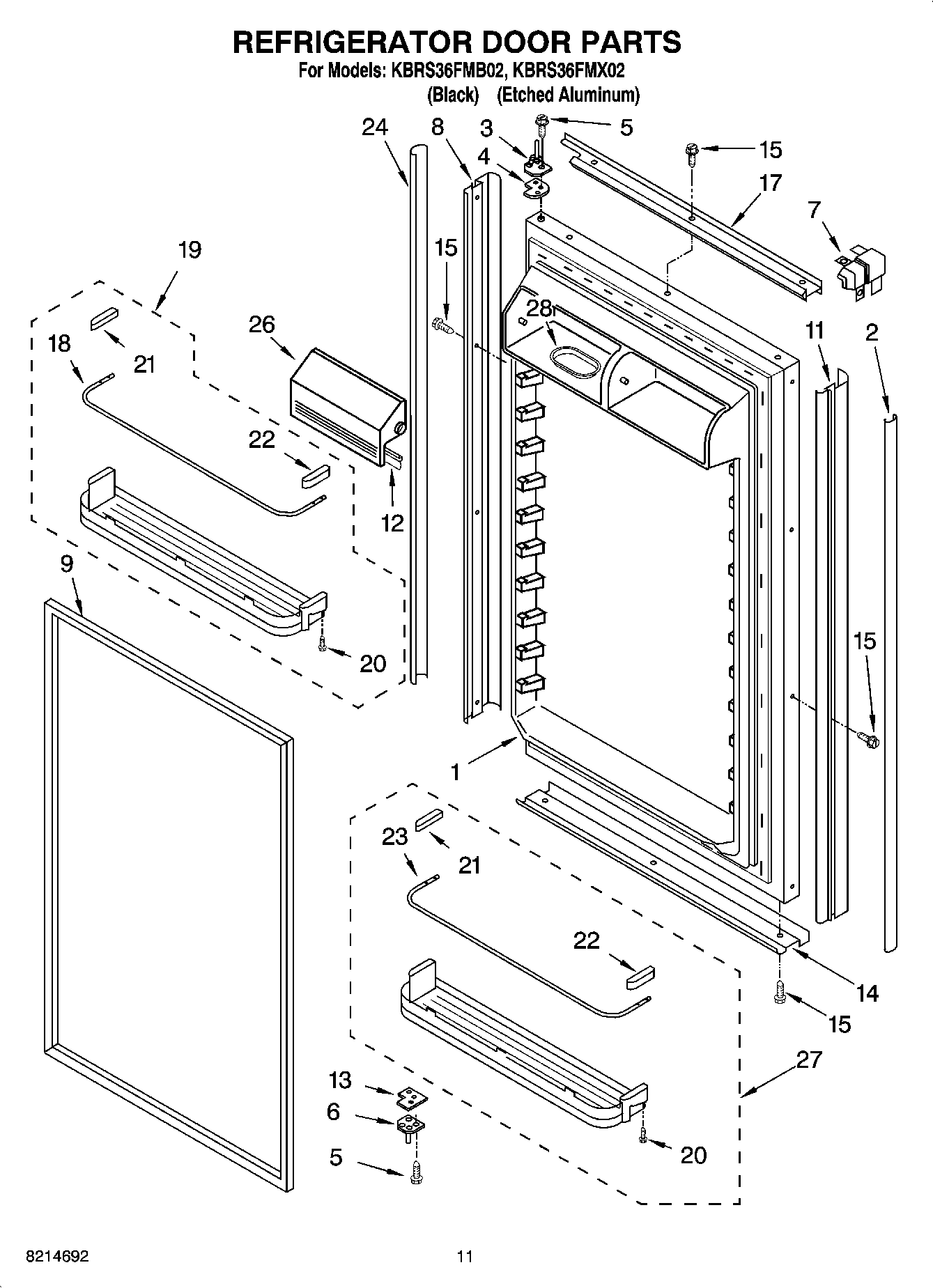

KBRS36FMX02 07 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes Item 9)
2	Trim Cover, Handle (Etched Aluminum)
2	Trim Cover, Handle (Black)
3	Hinge Assembly, Top
4	Spacer-Hinge, Top
5	W11474472 Whirlpool Screw
6	Hinge Assembly, Bottom
7	Corner Trim (Black)
7	2207457 Whirlpool Refrigerator Door Trim
8	Trim-Door, Side (Black)
8	Trim-Door, Side (Etched Aluminum)
9	2302709 Whirlpool Refrigerator Door Gasket
11	Handle, Door (Black)
11	Handle, Door (Etched Aluminum)
12	Gasket (2)
13	SPACER, HINGE (BOTTOM)
14	Trim-Door, Bottom (Etched Aluminum)
14	Trim-Door, Bottom (Black)
15	WP8281250 Whirlpool Refrigerator Screw
15	W10851443 Whirlpool Refrigerator Screw
17	Trim-Door, Top (Black)
17	Trim-Door, Top (Etched Aluminum)
18	Tube, Door Shelf
19	Shelf, Door (2)
20	WP681249 Whirlpool Screw Assembly
21	End Cap, Left
22	End Cap, Right
23	Tube, Door Shelf (Gallon)
24	Trim Cover, Side (Etched Aluminum)
24	Trim Cover, Side (Black)
26	Door, Utility Bin (2) (Includes Item 12)
27	Door Shelf, Gallon
28	Butter Tray
