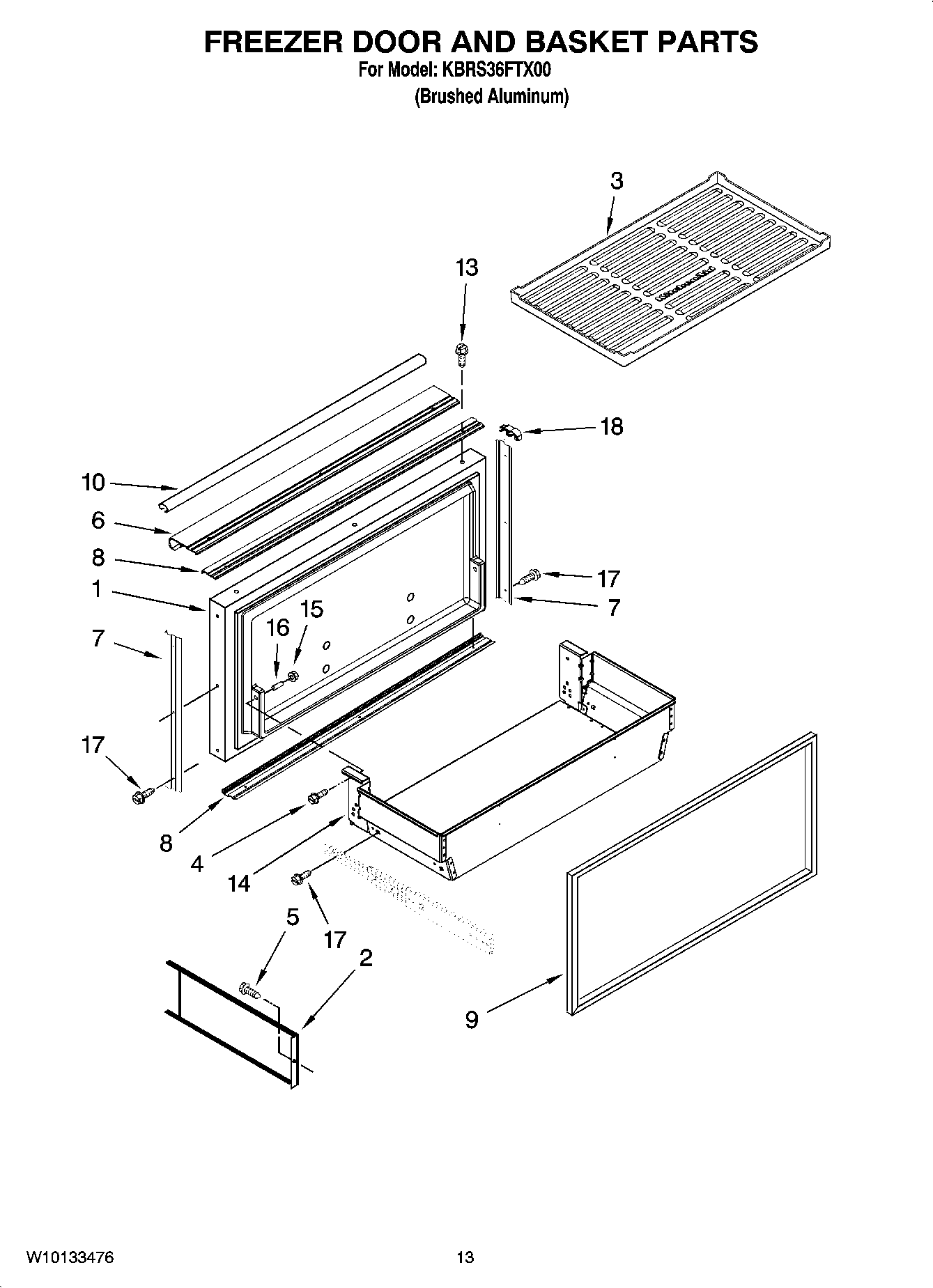

KBRS36FTX00 08 – FREEZER DOOR AND BASKET PARTS

Products

Position	Product
1	Freezer Door Panel (Includes Item 9)
2	Divider, Basket (2)
3	Mat, Basket
4	W10135775 Whirlpool Refrigerator Screw
5	WP488234 Whirlpool Air Conditioner Screw
6	HANDLE
7	Trim-Door, Side
8	TRIM-DOOR
9	2302710 Whirlpool Refrigerator Door Gasket
10	Cover, Trim
13	WP8281250 Whirlpool Refrigerator Screw
14	W10258182 Whirlpool Refrigerator Freezer Basket
15	WP2207454 Whirlpool Refrigerator Nut
16	WASHER
17	W10109030 Whirlpool Refrigerator Screw
18	Cap, Door (Right)
18	Cap, Door (Left)
