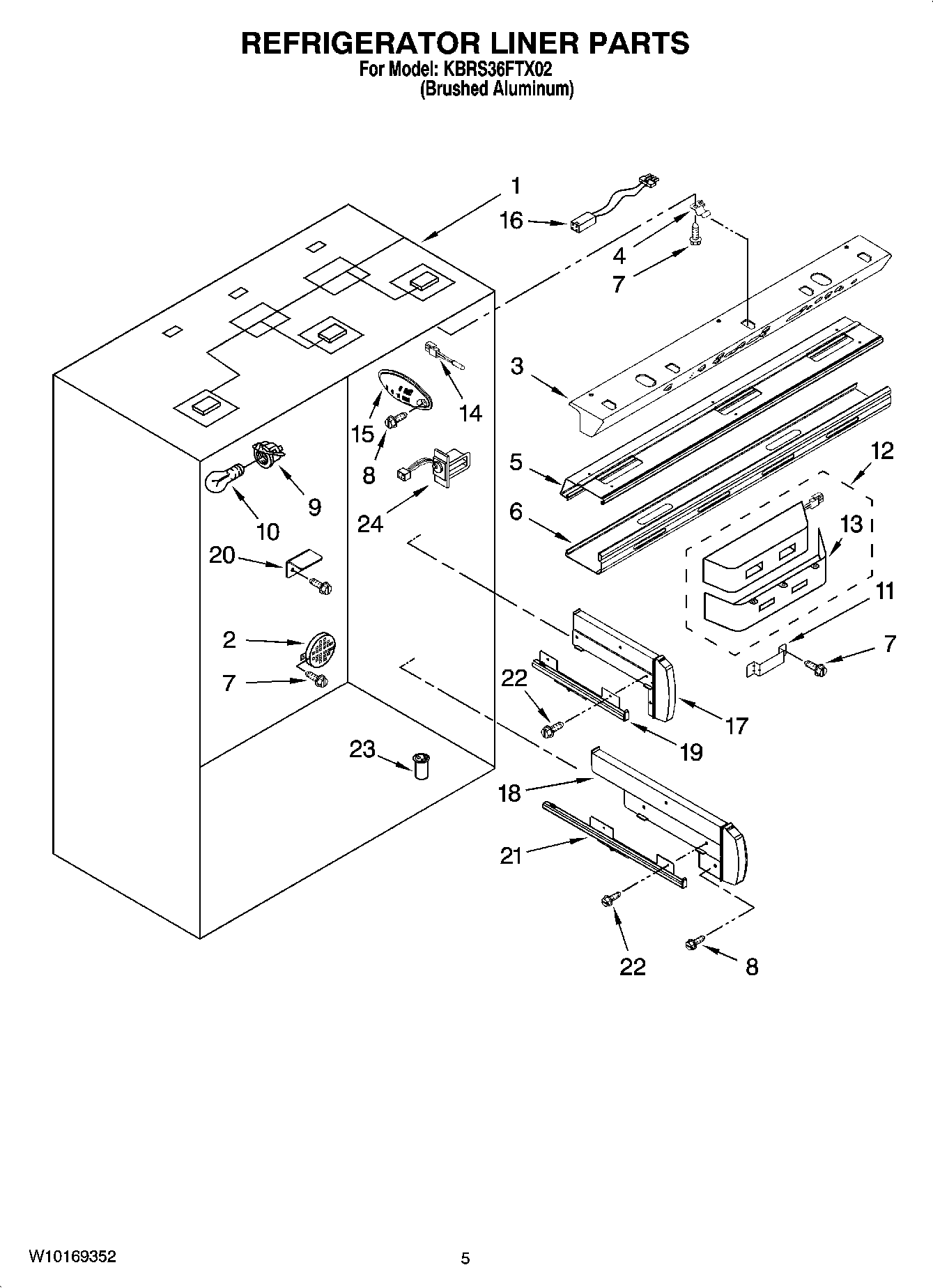

KBRS36FTX02 04 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	Liner, Refrigerator (Not Servicable)
2	2317004 Whirlpool Refrigerator Air Cover
3	W10468945 Whirlpool Refrigerator Control Box
4	Clip, Control Box
5	Bracket, Control Box
6	Shield, Light
7	WP488729 Whirlpool Refrigerator Door Screw
8	WP488163 Whirlpool Refrigerator Screw
9	WPW10191429 Whirlpool Refrigerator Socket
10	WPA3073101 Whirlpool Light Bulb
11	Clip, Diffuser Cover
12	Diffuser Assembly
13	2320519 Whirlpool Refrigerator Cover
14	WP2188820 Whirlpool Refrigerator Thermistor
15	WP2317844 Whirlpool Refrigerator Cover
16	2310164 Whirlpool Refrigerator Wire Harness
17	Spacer, Crisper (Right)
17	Spacer, Crisper (Left)
18	Spacer, Deli (Left)
18	Spacer, Deli (Right)
19	2302952 Whirlpool Refrigerator Slide
19	2302953 Whirlpool Refrigerator Slide
20	Support, Crisper Cover
21	2302956 Whirlpool Refrigerator Slide
21	2302957 Whirlpool Refrigerator Slide
22	WPW10001160 Whirlpool Refrigerator Screw
23	WP2210509 Whirlpool Refrigerator Tub Valve
24	WP2221296 Whirlpool Air Baffle
