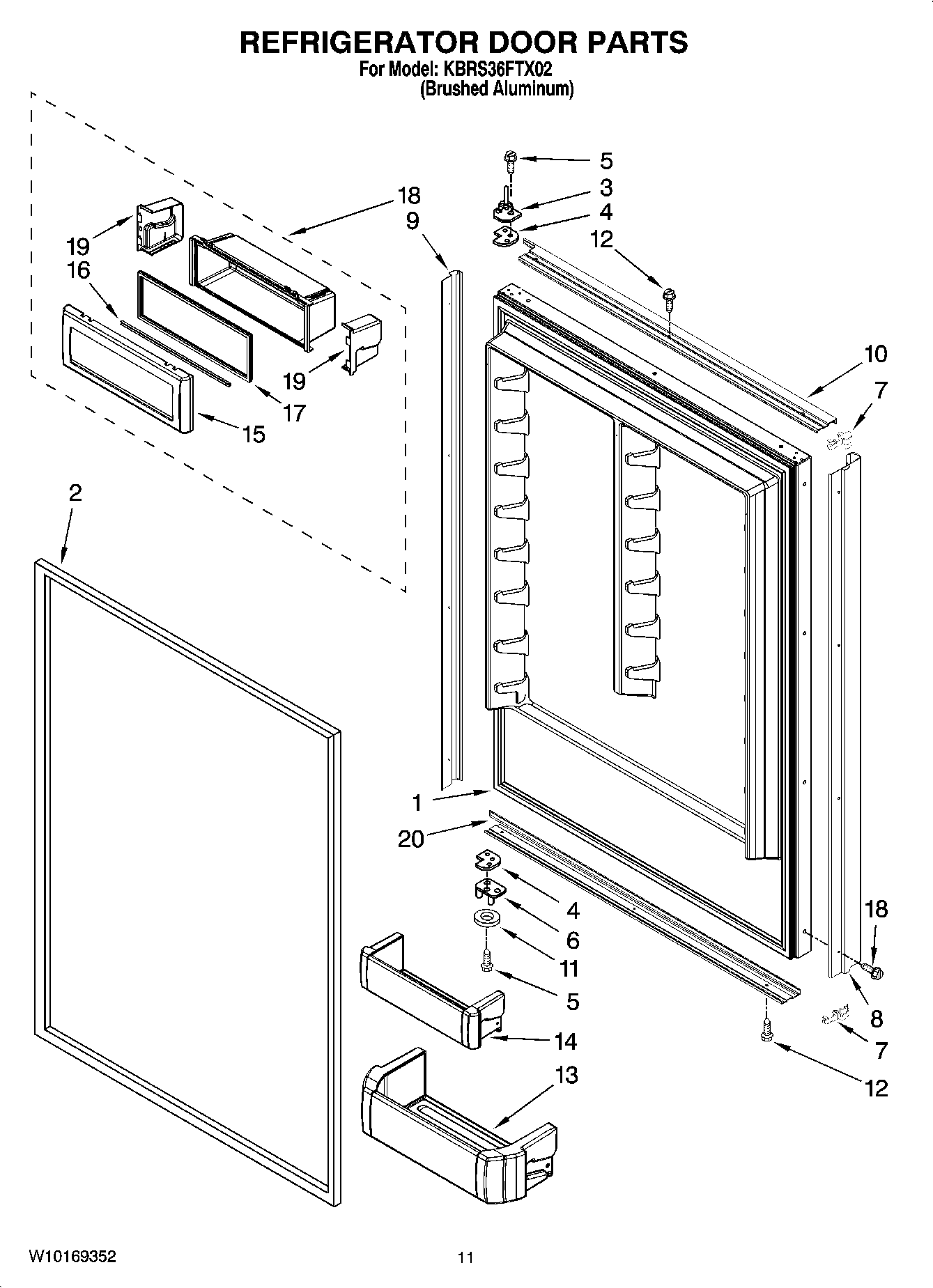

KBRS36FTX02 07 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Door, Refrigerator (Includes Item 2)
22302709 Whirlpool Refrigerator Door Gasket
3Hinge Assembly, Top
4W11673500 Whirlpool Door Hinge
5WP8533980 Whirlpool Refrigerator Screw
62316805 Whirlpool Refrigerator Door Hinge
7Cap, Door (Left)
7Cap, Door (Right)
8HANDLE
9Trim-Door, Side (Hinge Side)
10Trim-Door, Top
11WP2006346 Whirlpool Refrigerator Washer
12WP8281250 Whirlpool Refrigerator Screw
13W10323749 Whirlpool Refrigerator Cantilever Bin
14W11590561 Whirlpool Refrigerator Cantilever Bin
15Door, Utility Bin
16Rail, Lid
17Gasket, Utility Bin
18W10323044 Whirlpool Refrigerator Cantilever Bin
19WPW10323173 Whirlpool Refrigerator Retainer End Cap
19WPW10323172 Whirlpool Refrigerator Retainer End Cap
20Trim-Door, Bottom
