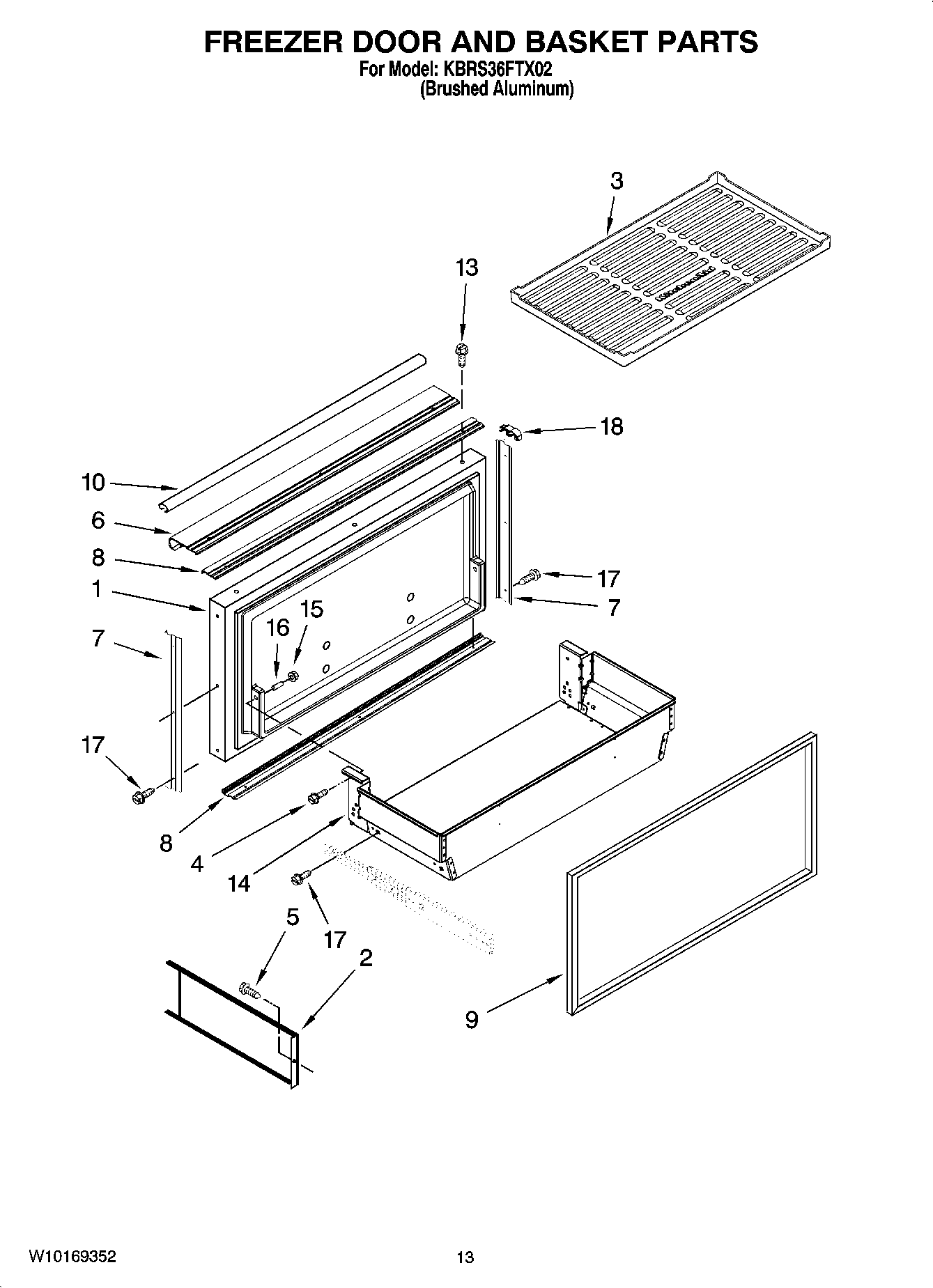

KBRS36FTX02 08 – FREEZER DOOR AND BASKET PARTS

KBRS36FTX02 08 – FREEZER DOOR AND BASKET PARTS

Written by

in

KBRS36FTX02 08 – FREEZER DOOR AND BASKET PARTS

Products

PositionProduct
1Freezer Door Panel (Includes Item 9)
2Divider, Basket (2)
3Mat, Basket
4W10135775 Whirlpool Refrigerator Screw
5WPW10001160 Whirlpool Refrigerator Screw
6HANDLE
7Trim-Door, Side
8TRIM-DOOR
92302710 Whirlpool Refrigerator Door Gasket
10Cover, Trim
13WP8281250 Whirlpool Refrigerator Screw
14W10258182 Whirlpool Refrigerator Freezer Basket
15WP2207454 Whirlpool Refrigerator Nut
16WASHER
17W10109030 Whirlpool Refrigerator Screw
18Cap, Door (Right)
18Cap, Door (Left)
