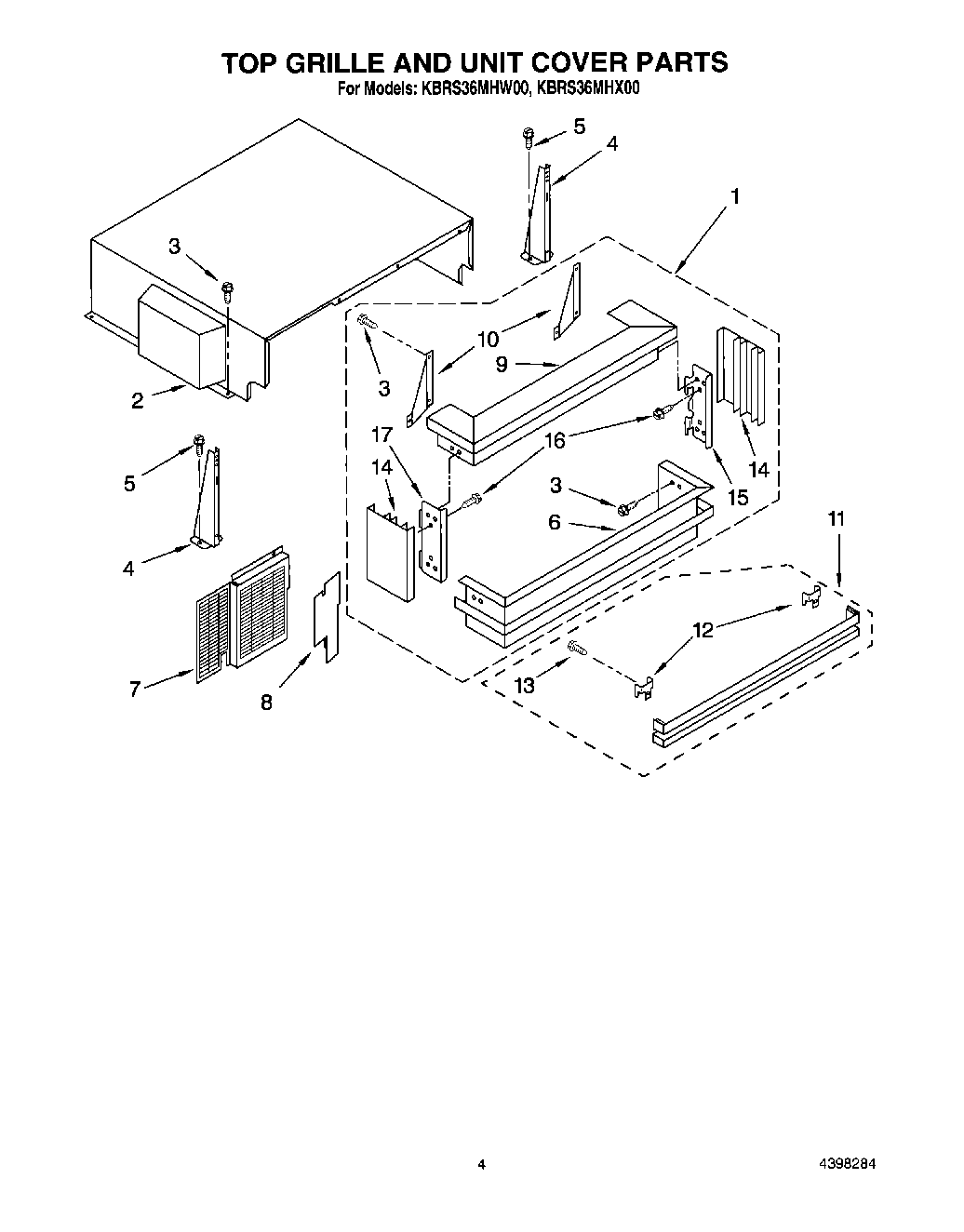

KBRS36MHW00 03 – TOP GRILLE AND UNIT COVER

Products

Position	Product
1	Top Grille Assembly (White)
1	Top Grille Assembly (Aluminum)
2	Cover, Unit
4	Grille, Bracket
5	WP8204624 Whirlpool Bolt
6	Trim-Lower, Panel (Aluminum)
6	Trim-Lower, Panel (White)
7	Guard, Compressor Wiring
8	Baffle-Air, Condenser
9	Trim-Top, Panel (White)
9	Trim-Top, Panel (Aluminum)
10	Bracket, Trim Panel
11	Louver, Vent (White)
11	Louver, Vent (Aluminum)
12	Louver, Bracket
13	WPW10141625 Whirlpool Refrigerator Screw Assembly
14	Trim-Side, Panel (White)
14	Trim-Side, Panel (Aluminum)
15	Bracket-Panel, Right Side
16	WP3196170 Whirlpool Screw
17	Bracket-Panel, Left Side
