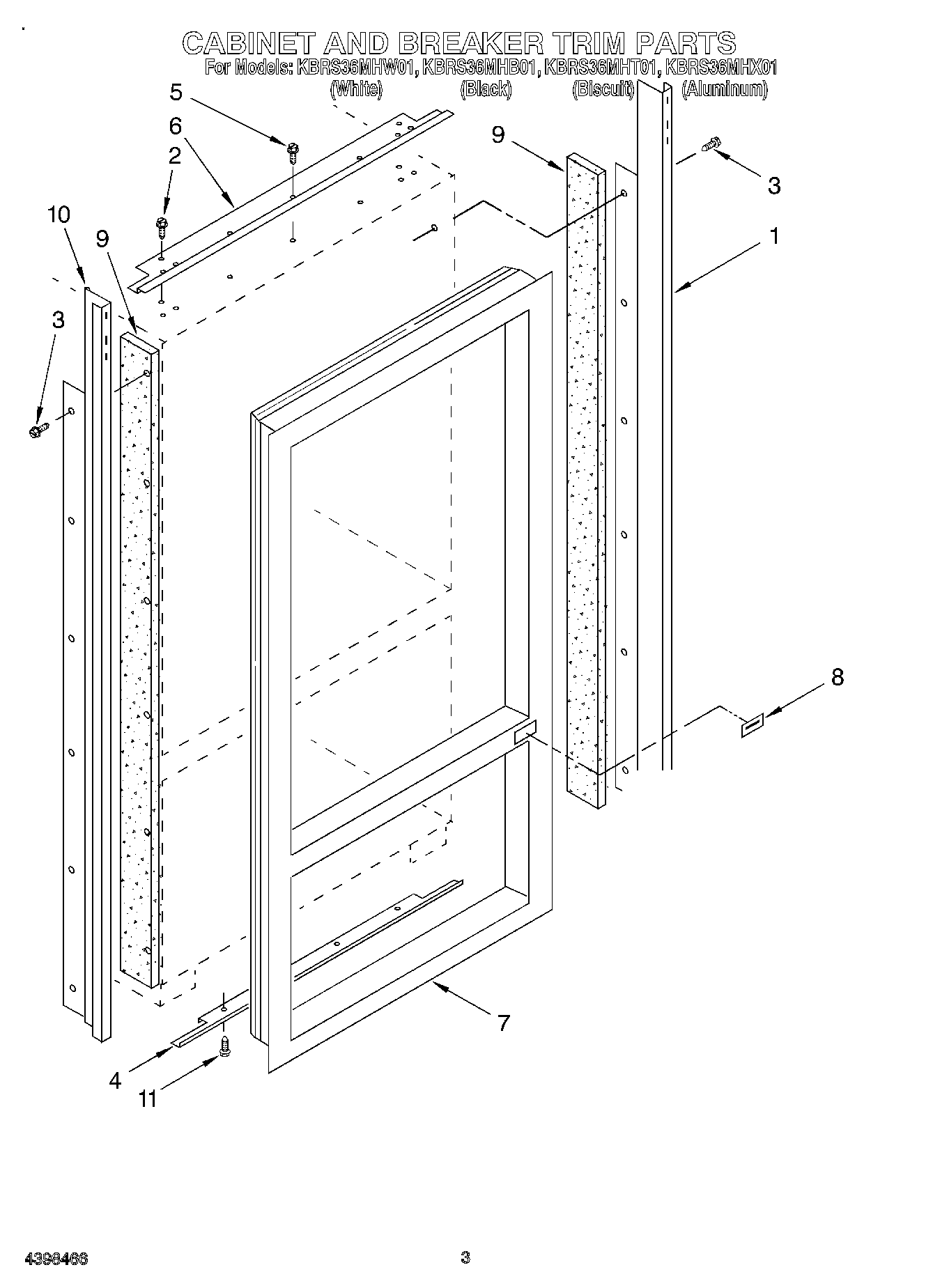

KBRS36MHW01 02 – CABINET AND BREAKER TRIM

KBRS36MHW01 02 – CABINET AND BREAKER TRIM

Written by

in

KBRS36MHW01 02 – CABINET AND BREAKER TRIM

Products

PositionProduct
1Cabinet Trim, Right Side (Biscuit)
1Cabinet Trim, Right Side (Aluminum)
1Cabinet Trim, Right Side (White)
1Cabinet Trim, Right Side (Black)
2Screw
3WP1163283 Whirlpool Air Conditioner Screw
3Repair, Screw
4Cabinet, Trim (Bottom)
5W11624204 Whirlpool Screw
6Cabinet, Trim Top
7Breaker Trim
8Cover, Hinge
9Seal, Side Trim
10Cabinet Trim, Left Side (Aluminum)
10Cabinet Trim, Left Side (White)
10Cabinet Trim, Left Side (Black)
10Cabinet Trim, Left Side (Biscuit)
11WP489464 Whirlpool Refrigerator Screw
