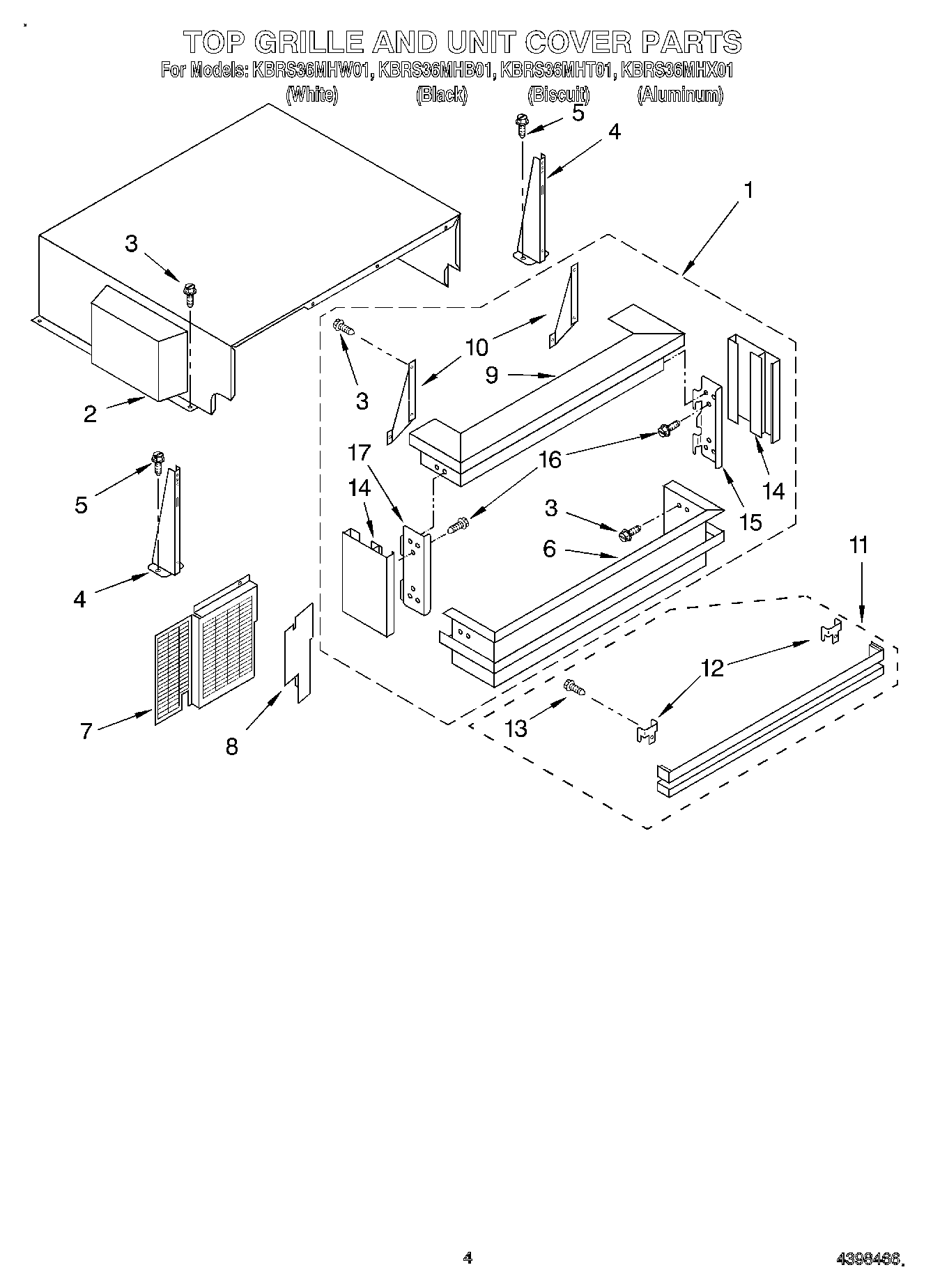

KBRS36MHW01 03 – TOP GRILLE AND UNIT COVER

Products

Position	Product
1	Top Grille Assembly (Black)
1	Top Grille Assembly (Biscuit)
1	Top Grille Assembly (White)
1	Top Grille Assembly (Aluminum)
2	Cover, Unit
4	Grille, Bracket
5	WP8204624 Whirlpool Bolt
6	Trim-Lower, Panel (Aluminum)
6	Trim-Lower, Panel (Black)
6	Trim-Lower, Panel (Biscuit)
6	Trim-Lower, Panel (White)
7	Guard, Compressor Wiring
8	Baffle-Air, Condenser
9	Trim-Top, Panel (White)
9	Trim-Top, Panel (Black)
9	Trim-Top, Panel (Biscuit)
9	Trim-Top, Panel (Aluminum)
10	Bracket, Trim Panel
11	Louver, Vent (White)
11	Louver, Vent (Black)
11	Louver, Vent (Biscuit)
11	Louver, Vent (Aluminum)
12	Louver, Bracket
13	WPW10141625 Whirlpool Refrigerator Screw Assembly
14	Trim-Side, Panel (White)
14	Trim-Side, Panel (Black)
14	Trim-Side, Panel (Biscuit)
14	Trim-Side, Panel (Aluminum)
15	Bracket-Panel, Right Side
16	WP3196170 Whirlpool Screw
17	Bracket-Panel, Left Side
