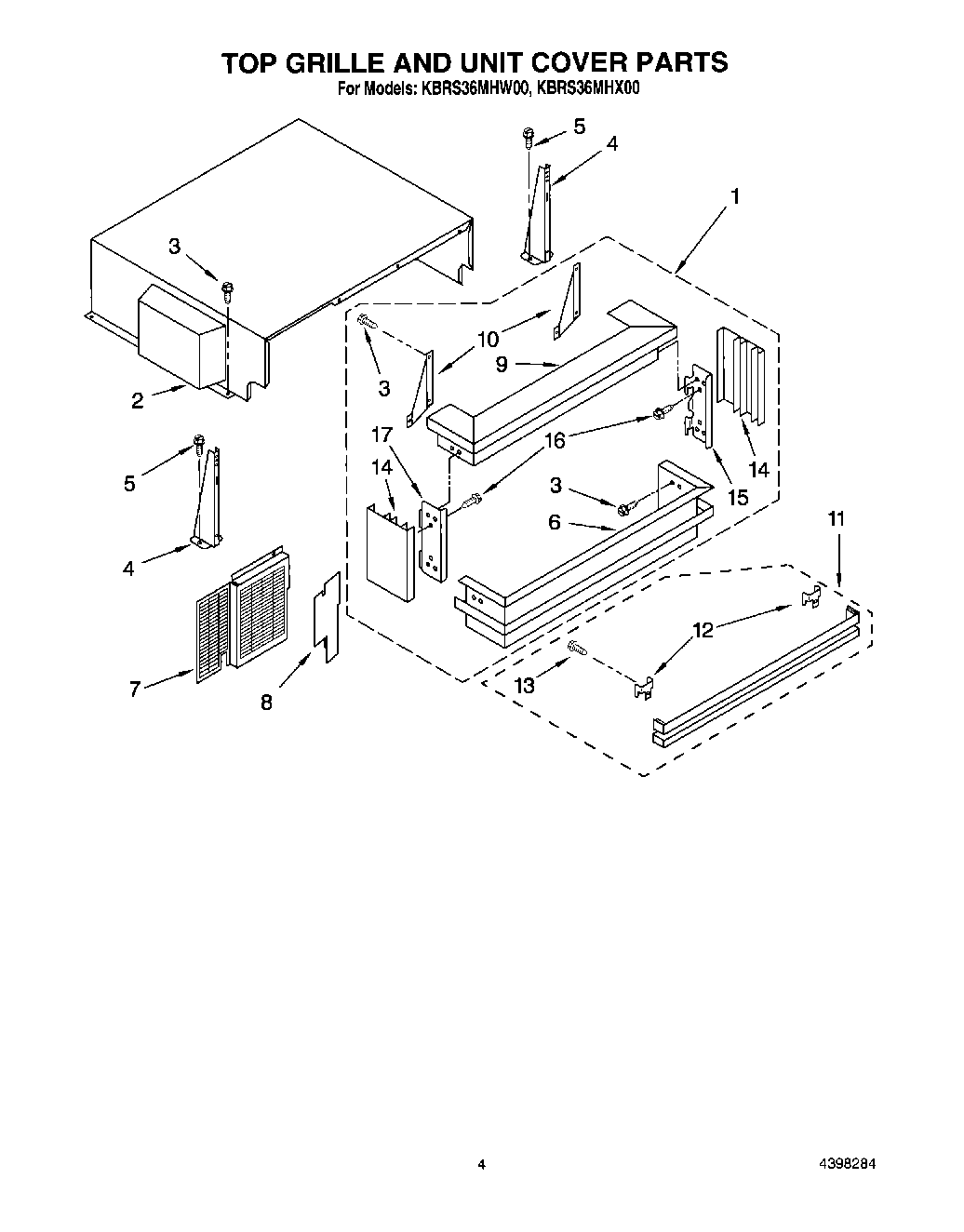

KBRS36MHX00 03 – TOP GRILLE AND UNIT COVERadmin2025-04-26T12:26:15+00:00KBRS36MHX00 03 – TOP GRILLE AND UNIT COVER
Products
| Position | Product |
|---|
| 1 | Top Grille Assembly (White) |
| 1 | Top Grille Assembly (Aluminum) |
| 2 | Cover, Unit |
| 4 | Grille, Bracket |
| 5 | WP8204624 Whirlpool Bolt |
| 6 | Trim-Lower, Panel (Aluminum) |
| 6 | Trim-Lower, Panel (White) |
| 7 | Guard, Compressor Wiring |
| 8 | Baffle-Air, Condenser |
| 9 | Trim-Top, Panel (White) |
| 9 | Trim-Top, Panel (Aluminum) |
| 10 | Bracket, Trim Panel |
| 11 | Louver, Vent (White) |
| 11 | Louver, Vent (Aluminum) |
| 12 | Louver, Bracket |
| 13 | WPW10141625 Whirlpool Refrigerator Screw Assembly |
| 14 | Trim-Side, Panel (White) |
| 14 | Trim-Side, Panel (Aluminum) |
| 15 | Bracket-Panel, Right Side |
| 16 | WP3196170 Whirlpool Screw |
| 17 | Bracket-Panel, Left Side |
